Use our selector tool to configure and order.
WERMA 70mm diameter stack light components provide illuminated and audible status indication for machines and systems. Components include optical elements in a variety of colors, with incandescent, LED or Xenon lighting, as well as buzzer and siren elements. The bayonet mechanism allows elements to be mechanically and electrically connected within seconds.

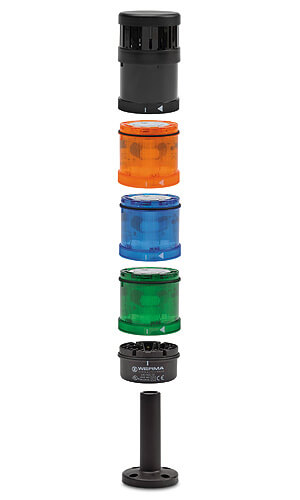

70mm WERMA Stack Light Components
70mm Modular WERMA Light Stack Systems
KombiSIGN 71 Modular IP65-rated stack light system with 70mm diameter elements.
WERMA's modular 70mm stack light system offers total choice and flexibility with multiple combinations of optical and audible signal elements.
- For use in standard applications
- Combine up to 5 elements per terminal base
- KS 71 (70mm) light elements:
- Colors: Red, Green, Clear, Yellow and Blue
- Permanent Incandescent
- Permanent LED
- Rotating LED
- Blinking LED
- Flashing LED
- Flashing Xenon

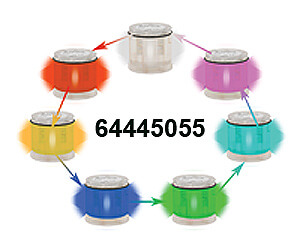

- Multi-color module (64445055) - 7 LED colors in one light element
- Audible alarm elements up to 105 dB:
- 24VAC/DC or 115VAC alarm buzzers available
- Multi-functional Siren with 8 tones available
- Siren with self-adjusting sound output
- Wide variety of mounting options
- Screw and Cage Clamp terminal base elements
- Wall, base, tube, magnetic, fold away
- Typical product applications include; machine tools, packaging machines, conveyor systems, printing machines, loading docks, retail centers (check outs), queuing indicators for theme parks, and more.
Need help selecting a Stacklight?
Use our
selector tool
to configure and order.
WERMA 70mm stack light elements start at
$23.00
(64110000)
WERMA 70mm Modular Stack Lights Overview
Simple Assembly
The bayonet mechanism allows elements to be mechanically and electrically connected within seconds. Elements can be safely and easily changed (contact-voltage proof) without the need for tools.
- Simple mounting and removal of the elements with bayonet mechanism
- New combinations at the twist of a hand
- Tool-free bulb change
- Position marks to guide alignment
70mm Stack Light Accessories
- 24 VDC and 115 VAC, 5W incandescent bulbs
- Mounting hardware - tube, tube with clamp, base with integrated tube, plastic base, metal base
- Brackets and contact boxes
- Foldaway base (for KS 71 and KS 50)
- Surface mounting, single hole mounting and tube mounting adapters
