Multi-Conductor Cables

Flexible Portable Cord

Typical indoor and outdoor applications for these multi-conductor cables include industrial machinery wiring, large appliances, heavy duty tools, motors, mining cable and temporary electrical power and lighting for construction sites.

Type SJOOW / SOOW Flexible Power Cord
- Thermoset rubber jacket
Abrasion resistance, resistant to melting on momentary contact, low cost

• 300 VAC (J) and 600 VAC
• 18 AWG to 10 AWG
• 2, 3 or 4 wire power cable configurations
• Cut to length in 1 foot increments with a 20 foot minimum length

Type SO flexible portable cord starts at $0.30 / ft. (20 ft. min.)

Type SJEOOW / SEOOW Flexible Power Cord
- Thermoplastic elastomer jacket
Wider temperature range, better flexibility at low temperatures

• 300 VAC (J) and 600 VAC
• 18 AWG to 10 AWG
• 2, 3 or 4 wire power cable configurations
• Cut to length in 1 foot increments with a 20 foot minimum length

Type SEO flexible portable cord starts at $0.34 / ft. (20 ft. min.)

Type W Flexible Power Cable (2000 VAC)
Industrial and mining cable applications, heavy-duty service power supply cable, AC systems, mobile and portable electrical equipment, motor and battery leads

• High voltage 2000 VAC rating
• 8 AWG multi-conductor cable
• 4 wire cables
• Cut to length in 1 foot increments with a 20 foot minimum length

Type W flexible portable cord starts at $3.92 / ft. (20 ft. min.)

Flexible Portable Cord Overview

RS-485 and RS-422 / RS-232 Data Cable (Bulk)

AutomationDirect offers high quality, low-capacitance data cable designed with impedances specific for RS-232/RS-422 and RS-485 communication applications in industrial environments.

• Cut to length in 1 foot increments with a 20 foot minimum length
• Color coded 24 AWG tinned copper twisted pair conductors to reduce electrical noise sensitivity
• 1, 2 or 3 twisted pair conductor configurations
• Polyethylene insulation provides a very high insulation resistance with a low, stable dielectric constant
• Combination overall foil shield with tinned copper drain wire plus tinned copper braid shield maximizes shielding effectiveness compared to single layer shielded cables
• Rugged gray PVC jacket provides durability in demanding installations
• UL CM/CL2 or AWM Style 2919

Bulk data cable prices start at $0.46 / ft.(20 ft. min.)

RS422/232 and RS485 Bulk Cable Overview

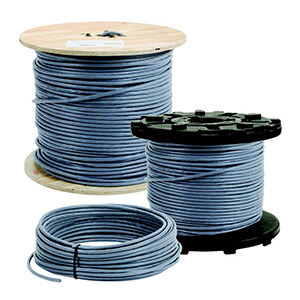

Flexible Control Cable

Multi-conductor Flexible Control Cable is available in sizes from 18 AWG to 10 AWG with 3 to 41 conductors. Individual copper conductors are stranded for flexibility, with black PVC / Nylon insulation and marked with numbers for easy identification.

• Unshielded and now shielded versions available
• 18 AWG to 10 AWG, 3 to 41 conductors (including a ground wire)
• Individual conductors have black TPE/Nylon insulation and are marked with identification numbers
• Rugged gray PVC outer jacket
• Green/yellow ground wire included
• Flexibility for easy installation
• Cut to length in 1 foot increments with a 20 foot minimum length
• Multiple ratings and approvals
• Type TC and Type TC-ER - 600 volt rating
• Type WTTC - 1000 volt rating
• Made in USA

Flexible control cable prices start at $0.47 / ft. (20 ft. min.)

Multi-Conductor Flexible Control Cable Overview

Power Machine Tray Cable ... New!

Power Machine Tray Cable is available in sizes from 18 AWG to 8 AWG with 3 to 25 unshielded conductors. Individual conductors are bare copper and stranded for flexibility, with black PVC/Nylon insulation and marked with numbers for easy identification.

• Cable can be installed between a cable tray and the utilization equipment or device without the need for metal conduit and/or armor resulting in installation and maintenance savings
• Cable meets NFPA 79, Electrical Standard for Industrial Machinery
• Green/yellow ground wire included
• Flexibility for easy installation
• Cut to length in 1 foot increments with a 20 foot minimum length
• Multiple ratings and approvals
• Made in USA

Power machine tray cable
starts at $0.47 / ft. (20 ft. min.)

Power Machine Tray Cable Overview

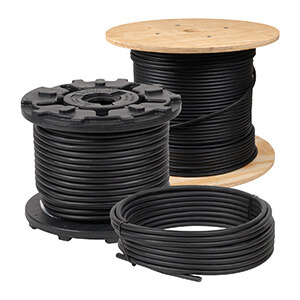

VFD Cable

VFD cable is used to organize and protect the input and motor power wiring for variable frequency drives. It is specially designed to reduce VFD-related interference (EMI) on nearby equipment.

• 4-conductor, 16AWG to 2AWG
• Cross-linked Polyethylene (XLPE) conductor insulation
• Class K, flexible stranded tinned annealed copper conductors
  (per ASTM B33, B172 and B174)
• Green ground conductor with yellow stripe, cross linked Polyethylene (XLPE) insulation
• 100% coverage aluminum/mylar/aluminum foil shield
• 85% coverage tinned copper braid shield
• Tinned copper drain wire(s)
• Black Thermoplastic Elastomer (TPE) jacket
• Cut to length in 1-foot increments with low minimum lengths
• Made in USA

VFD cable prices start at $2.25 / ft. (10 or 20 ft. min.)

VFD Cable Overview

VFD / Servo Cable with Signal Pair ... New!

AutomationDirect VFD-SC series VFD / Servo cable is the same high-quality cable as our VFDC series with one additional feature. The VFD-SC cable has a shielded 16AWG signal pair allowing this cable to be used with motors and drives requiring brake control or feedback from devices like temperature or position sensors. Having the integral signal pair allows this cable to be used with our SureServo Drives and Motors up to 3kW.

• 4-conductor, 16AWG to 10AWG, with 16AWG shielded signal pair for Feedback / Brake control
• Cross-linked Polyethylene (XLPE) conductor insulation
• Class K, flexible stranded tinned annealed copper conductors
  (per ASTM B33, B172 and B174)
• Green ground conductor with yellow stripe, cross linked Polyethylene (XLPE) insulation
• 100% coverage aluminum/mylar/aluminum foil shield
• 85% coverage tinned copper braid shield
• Tinned copper drain wire(s)
• Black Thermoplastic Elastomer (TPE) jacket
• Cut to length in 1-foot increments with low minimum lengths
• Made in USA

VFD / signal pair cable starts at $3.45 / ft. (20 ft. min.)

VFD/Servo Signal Pair Cable Overview

DLO Cable ... New!

DLO, RHH, RHW-2 heavy duty flexible power cable is a 2kV rated cable suitable for use in both wet and dry locations and can be used in conduits, ducts, troughs and control panels.

• Single conductor, 8 AWG to 4/0 AWG
• EPDM thermoset rubber conductor insulation
• CPE thermoset rubber cable jacket
• Cut to length in 1-foot increments (10-ft minimum)
• Flexibility for easy installation
• Wide operating temperature range
• 2kV Maximum Voltage Rating
• NEC Type RHH/RHW-2, CSA Type RW90
• Made in USA

DLO cable prices start at $0.80 per foot (10 ft. min.)

Instrumentation Cable

300V UL Instrumentation cables are dual listed as UL 2250 Type ITC (Instrumentation Tray Cables) and UL 13 Type PLTC (Power Limited Tray Cables).

• Suitable for use in hazardous locations
• 16 AWG and 18 AWG, 1, 2, 4 or 8 twisted pairs, overall shield or individually shielded pairs with overall shield
• Conductor pairs with black and white premium PVC insulation and alpha-numeric identification
• Sunlight and moisture resistant PVC outer jacket with sequential foot markings
• Cut to length in 1 foot increments with a 20 foot minimum length

Instrumentation cable
starts at $0.30 / ft. (20 ft. min.)

Instrumentation Cable Overview

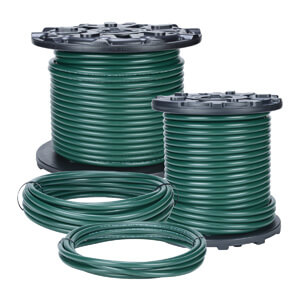

Continuous Flexing Control Cable

igus CF5 and CF6 multi-conductor control cables are specifically designed, tested, and manufactured for continuous flexing, high mechanical load application requirements, and will provide a guaranteed service life between 5 million and 10 million cycles when operated within specified conditions.

• Designed for continuous flexing applications
• 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG)
• 3 to 25 conductors including ground
• Unshielded (CF5 series) or shielded (CF6 series) conductors
• Cables are flame retardant and resistant to sunlight and oil penetration
• Cut to length in 1-foot increments with a 20 foot minimum length

Continuous flexing control cable
starts at $0.46 / ft. (20 ft. min)

Unshielded Flexing Control Cable Overview

Shielded Flexing Control Cable Overview

Tray Rated Continuous Flexing Control Cable ... New!

igus CF130US and CF140US series cables are tray rated for continuous flexing applications. The cables are specifically designed, tested, and manufactured for use in both continuous flexing and fixed tray applications.

• Continuous flexing applications
• 18 AWG to 12 AWG, 4 to 25 conductors including ground
• Unshielded or shielded conductors
• Sunlight and oil resistant, flame retardant
• Cut to length in 1-foot increments, 20 foot minimum

Continuous flexing control cable
starts at $1.16 / ft. (20 ft. min)

Unshielded Flexing Control Cable Overview

Shielded Flexing Control Cable Overview

Continuous Flexing Motor
Supply Cable

igus Chainflex® CF30 and CF31 motor supply cables are specifically designed, tested, and manufactured for continuous flexing, high mechanical load application requirements, and will provide a guaranteed service life between 5 million and 10 million cycles when operated within specified conditions.

• Designed for continuous flexing applications
• 1.5 mm² to 35.0 mm² (16 AWG to 2 AWG)
• 4 conductors including ground
• Unshielded (CF30 series) or shielded (CF31 series) conductors
• Cables are flame retardant and resistant to sunlight and oil penetration
• Strip cables 50% faster with inner/outer cable jacket tear strips
• Cut to length in 1-foot increments with a 10 or 20 foot minimum length

Continuous flexing motor supply cables
start at $1.41 / ft. (20 ft. min)

Unshielded Flexing Motor Supply Cable Overview

Shielded Flexing Motor Supply Cable Overview

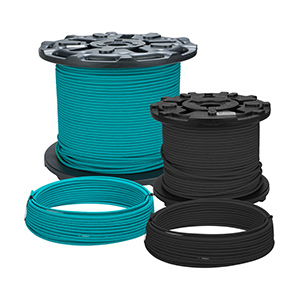

Continuous Flexing Industrial Ethernet Cable

Quabbin® DataMax Extreme Industrial Ethernet cable jackets were developed to survive the many industrial hazards that commercial jackets will not. DataMax Extreme cable jackets are pressure extruded over the cable core, effectively "locking" the conductor pairs in place. This type of jacket construction provides very stable electrical performance, even when flexed up to 10 million cycles (without failure).

• Designed for use in EtherNet/IP™ systems
• In compliance with TIA 568-C2 Category 5e (Cat5e) and TIA 1005
• 24 AWG, 2 or 4 twisted pairs with high density polyethylene insulation
• Unshielded or overall braid and foil shields
• Pressure extruded FR-TPE jacket for excellent chemical, moisture, and flame resistance, and exceptional low temperature flexibility
• Cut to length in 1 foot increments with a 20 foot minimum length

Continuous flexing Ethernet cable
starts at $0.60 / ft. (20 ft. min.)

Continuous Flexing Industrial Ethernet
Cable Overview

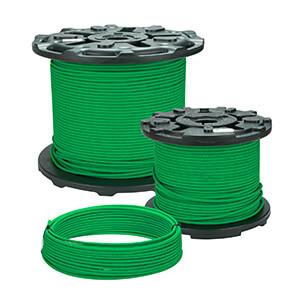

Continuous Flexing Profinet Cable ... New!

Quabbin DataMax® Extreme Industrial Profinet cables are a two-pair shielded construction with 22AWG twisted pair conductors and 7/30 stranded tinned copper with color coded high density polyethylene insulation.

• Continuous flexing applications
• 22AWG, 2 twisted pairs
• Shielded conductors
• Overall braid and foil shields
• Pressure extruded TPE jacket
• Profinet Type B & C, UL Type PLTC
• Cut to length in 1 foot increments

Profinet cable
starts at $1.04 / ft. (20 ft. min.)

Continuous Flexing Profinet
Cable Overview

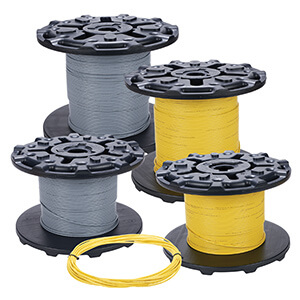

Sensor / Actuator Cable

AutomationDirect flexible multi-conductor sensor/actuator cable carries UL and CSA approvals and is ideal for both stationary and flexible industrial factory automation applications with limited mechanical stress and free movement without any tensile stress, loads or forced movements.

• 24 AWG and 22 AWG, 3, 4 or 5 unshielded conductors
• Individual conductors are bare copper and stranded for flexibility, with color coded PVC insulation for easy identification
• Cable outer jacket is a flexible PVC available in either gray or yellow
• Jacket is pressure extruded for optimal roundness
• Cut to length in 1 foot increments with a 30 foot minimum
• Not suitable for continuous flexing applications

Sensor / Actuator cable
starts at $0.22 / ft. (30 ft. min.)

Sensor/Actuator Cable Overview

Control & Signal Cable ... New!

Control and signal cable from AutomationDirect is available in sizes from 24 AWG to 16 AWG with 2 to 12 conductors, shielded and unshielded. The cables carry both UL and CSA approvals.

• 24, 22, 20, 18 and 16 AWG
• 2 thru 12 conductors with color coded insulation
• Unshielded and shielded construction
• PVC conductor insulation with black, red, white, green color code for easy identification
• PVC outer jacket in chrome gray
• Cut to length in 1 foot increments with a 30 foot minimum
• Flexibility for easy installation

Control and signal cable
starts at $0.20 / ft. (30 ft. min.)

Control & Signal Cable Overview
