VFD / Servo Cable with Signal Pair

VFD/Servo Signal Pair Cable

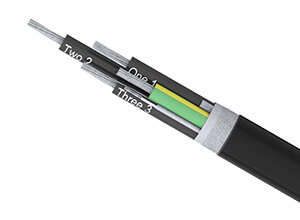

4-Conductor VFD Cable with Signal Pair

VFD-SC series VFD / Servo cable is the same high-quality cable as our VFDC series with one additional feature. The VFD-SC cable has a shielded 16 AWG signal pair allowing this cable to be used with motors and drives requiring brake control or feedback from devices like temperature or position sensors. Having the integral signal pair allows this cable to be used with our SureServo Drives and Motors up to 3kW.

Features

• 4-conductor, 16 AWG to 10 AWG
• 600V UL rated
• Class K, flexible stranded tinned annealed copper conductors
  (per ASTM B33, B172 and B174)
• Green ground conductor with yellow stripe, cross linked Polyethylene (XLPE) insulation
• 100% coverage aluminum/mylar/aluminum foil shield
• 85% coverage tinned copper braid shield
• Tinned copper drain wire(s)
• 16 AWG shielded signal pair for Feedback / Brake control
• Black Thermoplastic Elastomer (TPE) jacket
• Cut to length in 1-foot increments (20 foot minimum length)
• Made in USA

Starting at
$4.72 / ft.
(VFD-SC-16-4B-1P-1)
(20 ft. min.)

For part listing and specifications, go to Shop Now

Why use VFD cable

VFDs generate disruptive electrical noise in the environment around them. The noise emitted can affect other devices such as electronic equipment, commercial grade Ethernet systems and instrumentation wiring. VFD cables combat that by utilizing grounding, shielding & insulation.

Grounding Configuration and Termination

An improper cable connected to VFDs creates noise-related issues within the system and improperly terminated cables can release captured noise current. AutomationDirect/Southwire VFD cables offer both a ground conductor of equal to the size of the power conductors as well as separate drains for the shielding.

Proper Shielding to Contain Noise

To avoid noise problems, VFD cable needs to be effectively shielded. Research suggests that shielding systems that include a combination foil & braid types are the most appropriate for VFD applications.

Sturdy Insulation for Superior Electrical Performance

Cross-linked polyethylene (XLPE) insulation far surpasses PVC/nylon as an insulator for VFD cables because it can withstand voltages as much as 3x higher.
