Tray-rated automation cables organize control signal wiring in constantly moving applications with exposed runs. Cables are available in shielded or unshielded versions, a range of AWG sizes, and various conductor configurations. Order cables cut to your specified lengths, or in any bulk length.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

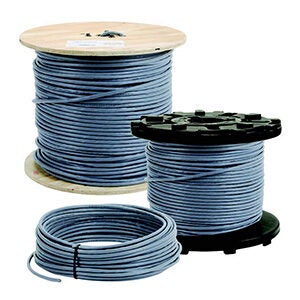

Tray Rated Automation Cable
igus CF130US and CF140US series tray rated cables accurately transmit process signals in control applications that require continuous movement or cable flexing.
- Conductor sizes from 0.75 mm2 to 4mm2 (18 AWG to 12 AWG)
- 4 to 25 conductors, including ground
- Unshielded and shielded constructions
- Individual conductors have black PVC/nylon insulation, marked with white identification numbers
- Low adhesion pressure extruded gray PVC mixture outer jacket is sunlight and oil resistant and flame retardant
- Guaranteed service life between 1 million and 5 million cycles when operated within specified conditions
- UL Tray cable for exposed run (TC-ER)
- Cut to length in 1-foot increments (20 foot minimum length)
Tray Rated Continuous Flexing Control Cable
igus CF130US and CF140US series cables allow for process signals to be transmitted accurately in control applications that require continuous movement or cable flexing. These cables are tray rated and are specifically designed, tested, and manufactured for use in both continuous flexing and fixed tray applications.
- 0.75 mm2 to 4mm2 (18 AWG to 12 AWG), 4 to 25 conductors including ground
- Unshielded and shielded constructions
- Individual conductors have black PVC/Nylon insulation and are marked with white identification numbers
- Low adhesion pressure extruded gray PVC mixture outer jacket that is sunlight and oil resistant and flame retardant
- Green/yellow ground wire included
- Guaranteed service life between 1 million and 5 million cycles when operated within specified conditions
- UL Tray cable for exposed run (TC-ER)
- Cut to length in 1-foot increments (20 foot minimum length)
Starting at
/ ft. (20 ft. min.)
(CF130US-07-04-1)
