Fiber optic communication cables offer many benefits over copper cabling, including immunity to electrical noise interference and faster transmission speeds. These cables are ideally paired with STRIDE Ethernet switches with built-in fiber optic ports or STRIDE transceiver modules
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Communications Cables & Connectors
To establish network connections to the various devices communicating in an industrial application, several connection options are provided including Ethernet cables, serial and industrial USB adapters, and field wireable connectors.
For part listings and specifications, go to Shop Now
Cat6a Ethernet Cables
Designed specifically for industrial applications requiring extremely fast transmission speeds and/or lots of bandwidth, these Cat6a Ethernet cables will provide dependable data transmission and future proof any new installation.
- RJ45 male connectors on both ends, with lengths up to 14 ft.
- STP - shielded twisted pair (with overall foil shield)
- Blue PVC cable jacket
- 30W Power over Ethernet (PoE+)
- Support transmission speeds up to 10 Gbps full duplex
Cat5e Ethernet Cables
Industrial-grade Cat5e Ethernet cables are designed to reduce the effects of (EMI) electromagnetic interference which can cause delays or complete communication loss in extremely noisy environments. Straight-through and crossover styles are available.
- RJ45 male connectors on both ends, with lengths up to 50 ft.
- STP - shielded twisted pair (with overall foil shield)
- PVC cable jacket in 9 colors (crossover cables in orange only)
- Support transmission speeds of 10 / 100 / 1000 Mbps

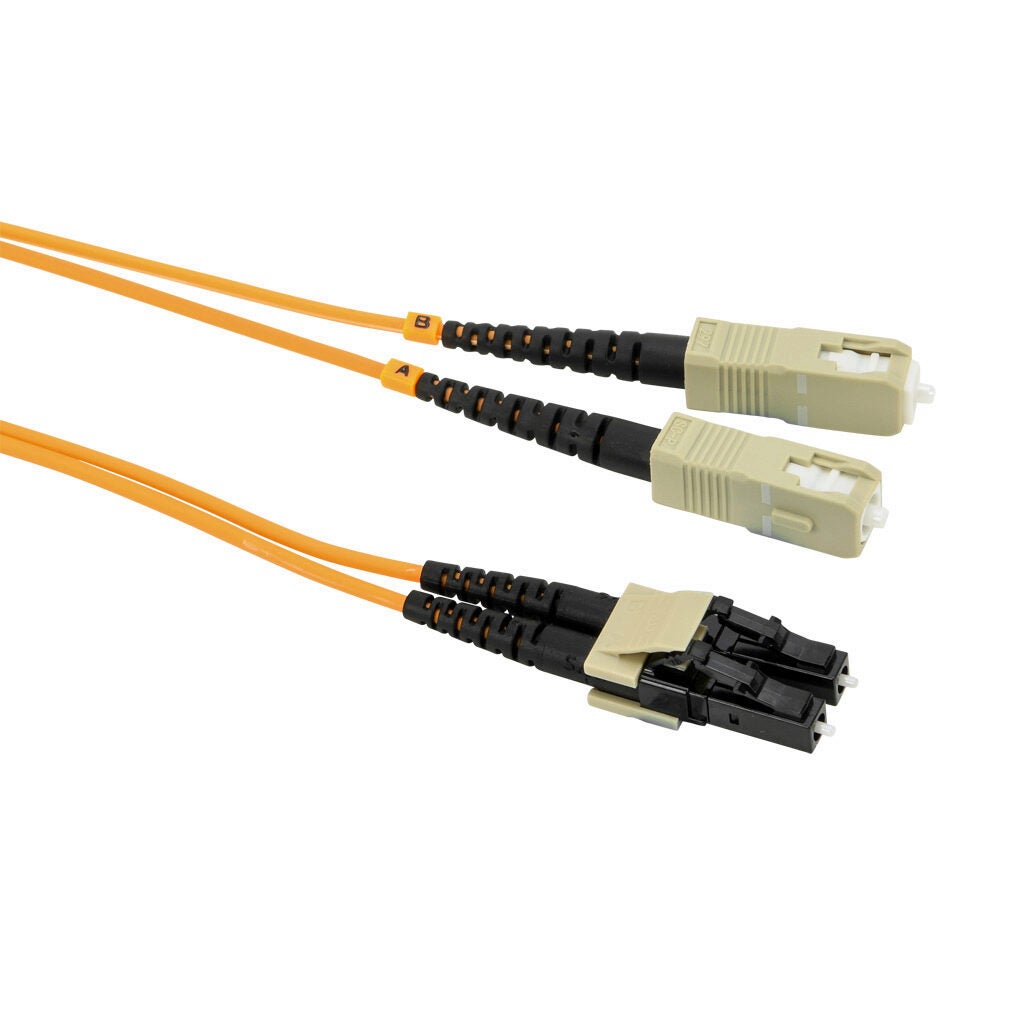

Fiber Optic Cables
AchieVe brand fiber optic Ethernet patch cables provide reliable low-cost multi-mode fiber connections. With fiber optic connections, you get faster transmission speeds than copper plus no detrimental effects from electrical noise.
- 250µm multi-mode fiber cables in lengths up to 10m (32.8 ft.)
- OM1, OM2, OM3, and OM4 fiber types available
- Numerous connector options including:
- LC duplex to LC duplex
- SC duplex to LC duplex
- SC duplex to SC duplex
- ST duplex to ST duplex
- LC duplex to ST duplex
- Jacket material complies with UL 94V-0
Data Cables
Industrial Ethernet cables with M12 quick-disconnect(s) (on at least one end) are used to reliably transmit up to 10 Gigabit Ethernet signals (depending on cable type) in industrial environments.
- High-flex industrial shielded Ethernet cables
- Cat5e D-coded cables support 10 / 100 Mbps full duplex
- Cat6a X-coded cables support up to 10 Gbps full duplex
- TPE (thermoplastic elastomer) jacket for harsh industrial applications
- M12 Q/D connector to a variety of termination styles, including pigtail, RJ45, and M12
- Lengths from 0.6m (1.9ft) to 15m (49.2ft)
Ethernet Field Wireable Connectors
Field wireable connectors are used to build custom patch cables with axial, right-angled and 45-degree angled connectors in M12 and RJ45 styles.
- Able to accept various cable sizes up to 18AWG
- RJ45 versions support Ethernet speeds of Cat5e (Ethernet) or Cat6a (Gigabit)
- Numerous IP ratings available including IP20, IP65, and IP68
Industrial USB
Newest Additions!
- Additional USB A to RS-232 (9-pin D-sub male) adapter cable
Adapters and adapter cables are available to facilitate data exchange between serial and USB devices. USB A to USB B and USB A to USB C programming cables are also available in various lengths.
