High-precision planetary gearboxes for servo motors are mechanical power transmission components that drive a load at a reduced ratio of the motor speed. Output torque is increased; output power is unchanged (less efficiency losses). These inline models provide an output shaft inline and co-axial to the input (motor) shaft.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Inline Series
Inline gearboxes for servo motors are specially designed mechanical devices that connect to the output shaft of a servo motor. They serve to adjust the motor's torque, speed, and direction of rotation. By using an inline configuration, these gearboxes maintain a direct alignment with the motor, allowing for compact installation and efficient power transfer.
Common Applications
- Robotics: For precise movement control in robotic arms or legs
- CNC Machines: To ensure accurate positioning and cutting
- Conveyor Systems: For regulating speed and load handling
- Industrial Automation: In various assembly and handling systems
Considerations for Selection
- Gear Ratio: Affects speed and torque output; select a ratio that matches application requirements
- Load Capacity: Ensure the gearbox can handle the expected load without excessive wear
- Backlash: Look for gearboxes designed to minimize backlash for high precision applications
- Material: The durability of the gearbox can depend greatly on the materials used
Understanding these aspects will help ensure the ideal inline gearbox selection for specific servo motor applications.
For part listing and specifications, go to Shop Now

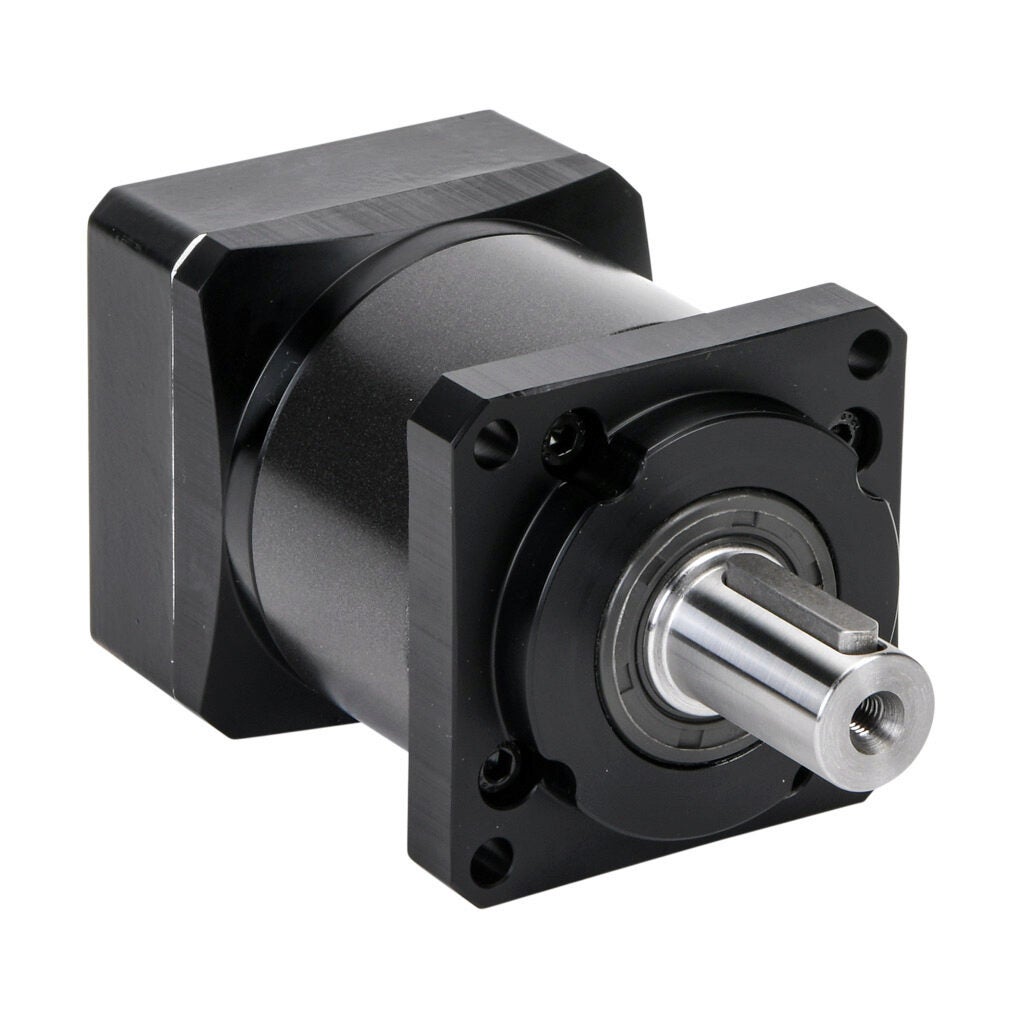

MSS Inline Series
The LS Electric MSS series of high precision gear reducers are specifically designed to mate to LS Electric L7C & L7P series servo motors. Everything you need to mount the gearbox to the LS Electric servo motor is included!
- 5:1, 10:1, and 20:1 gear ratios available for each servo motor (7.5kW systems limited to 15:1)
- Industry-standard mounting dimensions, and thread-in mounting style
- Very low backlash: 7 arc-min single stage (5:1 and 10:1 ratios), 9 arc-min for two-stage (15:1 and 20:1 ratios).
- IP65 Rated
- High efficiency, low noise
Starting at
(96200004)
PGA Inline Series
The SureGear PGA series of high-precision servo gear reducers is an excellent choice for applications that require good accuracy and reliability at an exceptional value.
- This inline planetary gearbox has a thread-in mounting style, along with a level of precision and torque capacity that is best in its class.
- Offered in a concentric shaft design with a maximum seven arc-min backlash rating, the SureGear PGA series is an accurate, high performance, and cost effective solution for any OEM.
- The machining quality of the SureGear PGA helical planetary gears provides a very quiet and more efficient reducer than other competitive products that are similarly priced. SureGear PGA series planetary gearboxes easily mate to SureServo motors.
Starting at
(PGA070-05A1)
