Not intended for new system development, SureServo1 components have a large installed base that will continue to be served while components are still available. If you are designing a new machine, SureServo2 systems have all the features of SureServo1, at a lower price. For ease of upgrade, SureServo2 motor dimensions are very similar to the comparable SureServo1 motor.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
SureServo®1 AC Servo Systems - Servo Motors and Servo Drives
SureServo1 components are becoming obsolete. SureServo2 systems have all the features of SureServo1, at a lower price. Click here to learn more about SureServo2

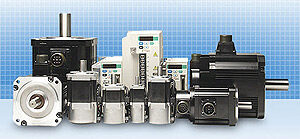

The AutomationDirect SureServo1 family of brushless servo systems is fully digital and offers a rich set of features to cover a broad range of applications. There are eight standard permanent magnet servo motors that can be operated in combination with one of three standard servo drives.
- Precise control of position, velocity and torque at incredible prices!
- Eight standard systems from 100W to 3kW
- Use with DirectLOGIC PLCs or any other host controller
- Drives feature on-board indexer and adaptive tuning modes
- Free configuration software
- 30-day money-back guarantee
- Two year warranty
Complete servo systems start at
$975
SureServo1 drives (SVA-Series) accept a wide range of command sources:
- Built-in motion controller w/preset position, velocity or torque
- Select presets with switch inputs and/or the multi-drop Modbus serial interface
- Position commands with "pulse and direction" or "count up and down" format
- Analog voltage: Velocity or Torque commands
- Encoder follower
For configuration, tuning and diagnostics:
- Use the drive's integrated keypad /display
- Take advantage of the free SureServo Pro® PC-based software.
- Tune the system easily with adaptive auto-tuning selections or a manual mode.
Adapt to diverse applications with configurable I/O, including:
- (8) digital inputs
- (5) digital outputs
- (2) analog monitors
- (1) scalable encoder output
CN1 I/O Components
These accessories are required for interface to the on- board drive I/O (via the CN1 connector).
- Use the 50-pin DIN-rail mount terminal block to interface to all the drive I/O signals
- Choose from 3 cable lengths to connect the drive to the interface block
- Two pigtail cables are also available for connection of the I/O signals
Accessories
Optional accessories include a serial communications cables for RS232 and RS485 connections, analog and digital potentiometers for speed control, braking resisters, EMI filters, a zero-phase reactor.
The drive can be programmed via the on-board keypad, but the free downloadable software (and a USB programming cable) offer greatly enhanced programming, backup, and troubleshooting options.
