End-of-arm tooling components for vacuum pick-and-place systems are used to create tooling that connects to the end of a robot arm. These Schmalz tooling components can be purchased as a complete kit or be customized by purchasing components separately.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
End-of-Arm Tooling Components
Category Selection
End-of-arm tooling components can be used to build a complete tooling assembly that is attached to the end of a robot arm. These assemblies are then used with vacuum pick-and-place systems.
- Complete End-of-Arm Tooling kits that can be assembled and attached to the end of a robot arm
- Individual end-of-arm tool components for custom end-of-arm tooling design or used for replacement parts
For part listings and specifications, go to Shop Now
End-of-Arm Tooling Kits

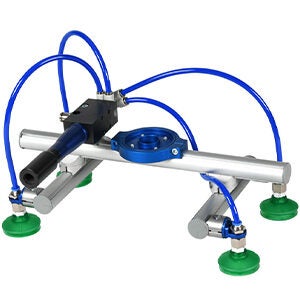

End-of-arm tooling starter kits include enough components needed to create a single-beam or dual-beam end-of-arm tool for a vacuum pick-and-place application to connect on the end of a robot arm. Kits are simple to save time and money but still allow a degree of customization. Simply cut the structural rail to the desired lengths, determine the location of the suction cups then assemble the unit and add the robot interface flange for your brand of robot or drill your own using the included blank robot flange and you are ready to go.
- Starter kits are easily assembled
- Includes structural rail, connectors, cup mounts, vacuum tubing, vacuum cups, fittings, basic ejector, flange for Universal robot, and blank robot flange
- Can be built to use internal or external vacuum
- Additional robot flanges are available to connect to Fanuc, Rethink, Universal, and Yaskawa robot arms
- Single profile kit minimum active 20 pound-force load (90 N), maximum active 78 pound-force load (350 N)
- Double profile kit minimum active 56 pound-force load (250 N), maximum 140 active pound-force load (625 N)
Starting at
$1,020.00
(10.01.49.00090)
End-of-Arm Tooling Components
(sold individually)
Components sold individually include:
- Profile rails
- Profile (rail) connectors
- Suction cup mounts
- Vacuum ejector
- Connector hardware
Starting at
$15.00
(25.09.06.00121)
