Ball screws and ball nuts convert rotary motion into smooth, precise linear movement with high efficiency and accuracy. Designed for repeatability and long service life, they are ideal for automation, positioning, and motion control applications.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Ball Screws & Ball Nuts
Ball screws and ball nuts provide efficient, precise conversion of rotary motion into smooth linear movement for motion control systems. Precision‑ground and rolled options support consistent positioning, high load capacity, and long service life across a range of sizes and configurations. Designed to meet common industry requirements, these components help simplify system design while delivering reliable performance in positioning and linear motion applications.
For part listing and specifications, go to Shop Now
Ball Screws & Ball Nuts
New!
High‑efficiency ball screws and matching ball nuts deliver smooth, precise linear motion for demanding automation and motion control applications, offering long life, flexible configurations, and complete system compatibility in a ready‑to‑install solution.
- Over 90% mechanical efficiency reduces motor size, energy use, and heat compared to traditional lead screw designs
- Precision lead accuracy of ±0.007 in/ft ensures reliable positioning for CNC, robotics, and automated machinery
- Six standard screw sizes (R10–R44) cover light‑duty positioning through high‑load industrial motion requirements
- Multiple standard lengths (24, 48, 72 in) minimize custom machining and speed system design
- Factory‑matched ball nuts, available with or without safety springs, simplify selection and ensure proper fit
- Case‑hardened 1045 steel construction (Rc 56–60) provides durability and long service life under continuous operation
- Flexible end configurations (plain, 2A, or 5A machined ends) support a wide range of bearing and mounting strategies
- High load capacity options, with dynamic ratings up to 3,400 lbf and static ratings up to 21,000 lbf, support demanding industrial applications

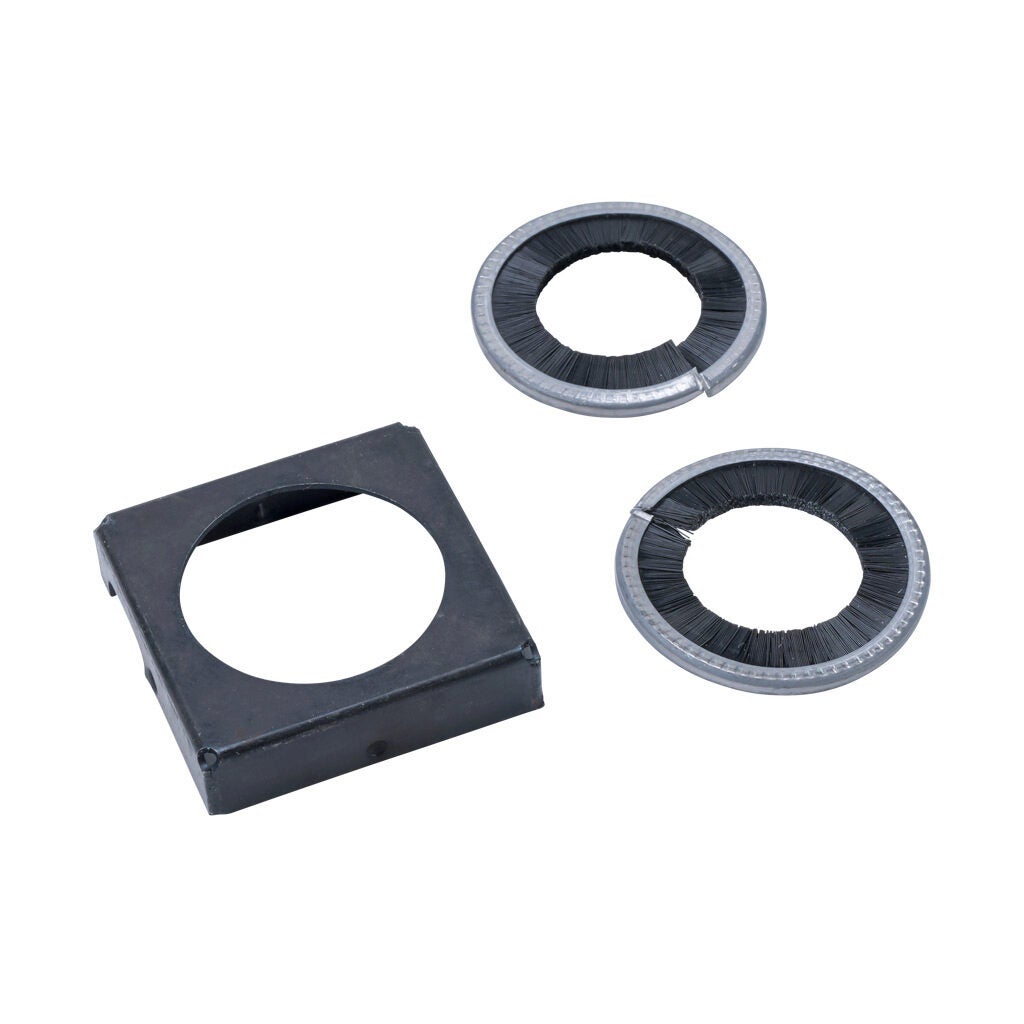

Ball Screws & Ball Nuts Accessories
New!
Ball screw and ball nut accessories support proper installation, alignment, and long‑term performance of linear motion systems. These components are designed to simplify integration, protect assemblies, and help maintain consistent operation in demanding industrial environments.
- Mounting components that aid accurate alignment and repeatable positioning
- End supports and hardware to handle axial loads and improve rigidity
- Protective accessories that help reduce contamination and wear
