Motion & Specialty Modules
BRX PLC Motion and Specialty Modules

Need help selecting BRX PLC components?
Use our configuration tool to configure and order.

High-speed systems requiring precise counting, timing, or motion need I/O that can process high pulse rates independent of the CPU scan. BRX high-speed I/O modules track or supply up to a 2MHz pulse rate for precision control. Other specialty modules are also available.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
PLCs & CPUs
PLCs & CPUs
Pluggable Option Modules (POM)
Pluggable Option Modules (POM)
Remote I/O
Remote I/O
DC I/O
DC I/O
AC I/O
AC I/O
Relay Output
Relay Output
Analog I/O
Analog I/O
Communications & Networking
Communications & Networking
Motion & Specialty Modules
Motion & Specialty Modules
ZIPLink Wiring Solutions
ZIPLink Wiring Solutions
BRX Accessories
BRX Accessories
Shop Now

BRX (Stackable Micro Brick) PLCs - Motion & Specialty Modules

Category Selection

  • BRX High-Speed I/O Modules
  • BRX DC Output Module with Diagnostics
  • BRX Active Padding Module
  • BRX Input Simulator Module

Applications that require precise positioning or coordinated movements need modules capable of accurately tracking and supplying high-frequency pulse trains.

  • High-speed input modules can detect extremely fast input pulses, such as encoder signals, independent of the CPU scan, guaranteeing more accurate pulse tracking
  • High-speed output modules can provide the pulses needed for precision control with stepper motors used in motion control applications and can also provide the varying pulse widths needed for pulse width modulation control.

Additional specialty modules include:

  • A discrete output module with built-in diagnostics and individually configurable channels to detect fault conditions
  • An input simulator module that supplies manually controlled signals or ON/OFF commands to test PLC logic or trigger functions
  • An active padding (filler) module that reserves address space in the BRX PLC system

These expansion modules easily snap onto the side of any BRX PLC/CPU.

For part listings and specifications, go to Shop Now

BRX High-Speed I/O Modules

BRX High-Speed I/O Modules

High-Speed I/O (HSIO) modules are used to expand the BRX PLC's onboard HSIO capabilities or add high-speed I/O to the M series CPU. Three high-speed input/output modules are available with either sink, source, or differential I/O. BRX high-speed I/O modules can be used to track rapid encoder pulses, drive stepper motors, or can be configured for other counter/timer, axis/pulse, pulse-width-modulated or table-driven functions.

  • 8 high-speed inputs and 8 high-speed outputs
  • Supports differential signaling to reduce the effect of electrical noise
  • Up to 2MHz high-speed input/output signals
  • Input functions include counting, scaling, measurement, interrupts, PLS, and tables
  • Output functions include PTO, PWM, positioning, velocity, gearing, camming, following, homing, and jogging
  • With HSIO expansion modules, BRX PLCs are capable of controlling up to 27 independent axes of motion or 7 groups of coordinated motion with additional virtual axes for internal control and following applications

Starting at
$242.00
(BX-HSIO1)

BRX DC Output Module with Diagnostics

BRX DC Output Module with Diagnostics

New!


The BX-16TD2W DC output module with built-in diagnostics features individually configurable outputs that detect fault conditions such as open load (broken wire), over-temperature, and overcurrent (short circuit). When a fault is detected, the corresponding diagnostic input turns ON automatically and turns OFF once the fault is cleared.

  • 16-point output module
  • 12 to 24 VDC output range
  • 2A/point maximum output current
  • Fault detection thresholds
    • 16A overcurrent detection minimum
    • 150°C overtemperature threshold
    • <1ms overcurrent, open/low load response

Priced at
$189.00
(BX-16TD2W)

BRX Active Padding Module

BRX Active Padding Module

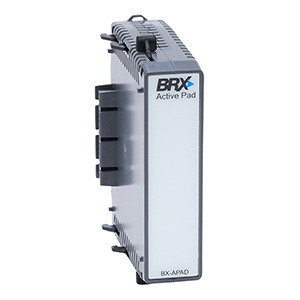

BX-APAD active padding (filling) module emulates other BRX modules in the I/O configuration of a BRX system. It is configured in software to emulate the address space of a specific BRX module. The padding module can be used to reserve address space so that addressing in subsequent modules does not change if a module is removed. It also allows Intelligent module configurations and data structures to be emulated.

Starting at
$40.00
(BX-APAD)

BRX Input Simulator Module

BRX Input Simulator Module

The input simulator module provides 8 toggle switches to simulate input devices, ideal for testing or manually controlled operations.

Starting at
$68.00
(BX-08SIM)


Shop Now
