Use our configuration tool to configure and order.
All BRX PLC units feature a receptacle for a user-selectable Pluggable Option Module (POM). These hot-swappable POMs can provide an additional serial, Ethernet or USB port for on-demand networking modifications to meet the changing needs of an application.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
BRX (Stackable Micro Brick) PLCs - Pluggable Option Modules (POM)
PLC communication is an ever-changing landscape and to keep up with the choices available, the BRX PLCs provide customizable communication options. Besides the built-in RS232/485 serial port and the built-in Ethernet port (on all BX-DM1E models), all the BRX CPUs have an optional slot for an additional user-selected POM. These hot-swappable POMs are available with RS232 (with and without flow control), RS422, RS485, USB 2.0, and Ethernet options. These modules can be swapped out as communication needs change - USB now and Ethernet later, or serial now but USB later, the choice is yours.

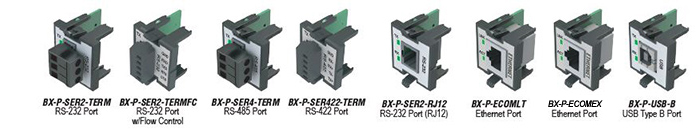

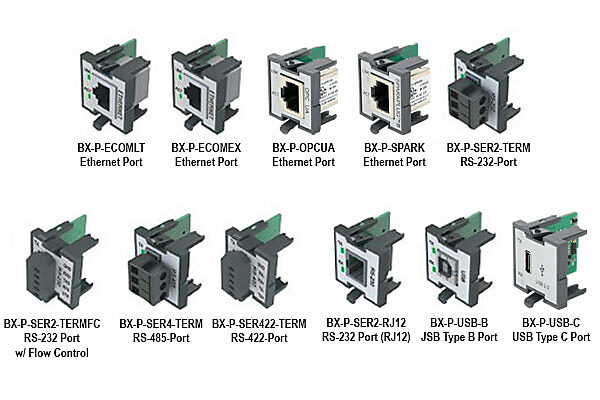

Eight POM modules are available:
- 10/100Base-T Ethernet (RJ45) port - Do-more protocol (1 Mbps max.)
- 10/100Base-T Ethernet (RJ45) port - MQTT, FTP, Do-more protocol, Modbus TCP, EtherNet/IP and Ethernet Remote I/O support (for use with Ethernet CPUs only)
- RS-232 port w/terminal connection (3-pin)
- RS-232 port w/flow control (5-pin)
- RS-232 port w/RJ12 connection
- RS-485 port (3-pin)
- RS-422 port (5-pin)
- USB Type B port
Starting at
$46.00
(BX-P-USB-B)
For part listings and specifications, go to Shop Now
