Industrialized open source controllers and shields provide accurate, reliable, easily-modified control of automated processes. The ProductivityOpen controller CPU contains the processing, memory and I/O interface; shields provide added functionality, including Ethernet communication. Starter kits offer fast prototyping.
The ProductivityOpen platform provides all the great features of a standard Arduino plus the added power and reliability of an industrial controller.
For part listings and specifications, go to Shop Now

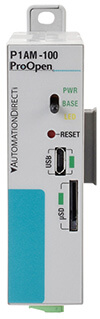

The P1AM-100 is an industrial-grade CPU designed to reliably take open-source control into the industrial realm. Programmed using the Arduino IDE or ProductivityBlocks, the P1AM-100 interfaces with all Productivity1000 series I/O modules and most Arduino MKR form factor shields.

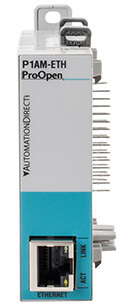

The P1AM-ETH is a housed Ethernet shield based on the Wiznet W5500 Ethernet Controller. It interfaces to the left side of the P1AM-100 CPU

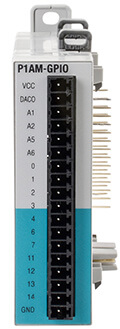

The P1AM-GPIO is a housed shield that brings a subset of the MKR header pins to the front faceplate with an 18-point terminal block. These pins include basic overvoltage, undervoltage, and overcurrent protection. It connects to the left side of the P1AM-100 CPU.
The P1AM-PROTO is a kit of parts that includes everything needed to make customized shields in the MKR form factor.

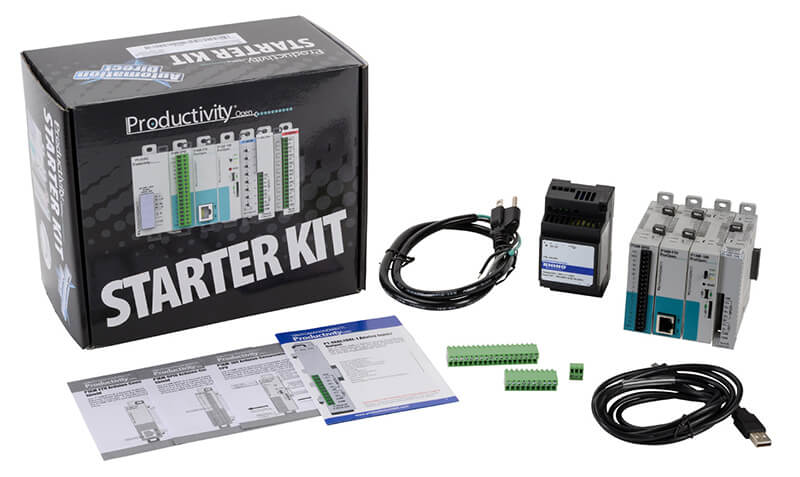

A convenient start to a project which will use primarily Arduino MKR Zero shields:

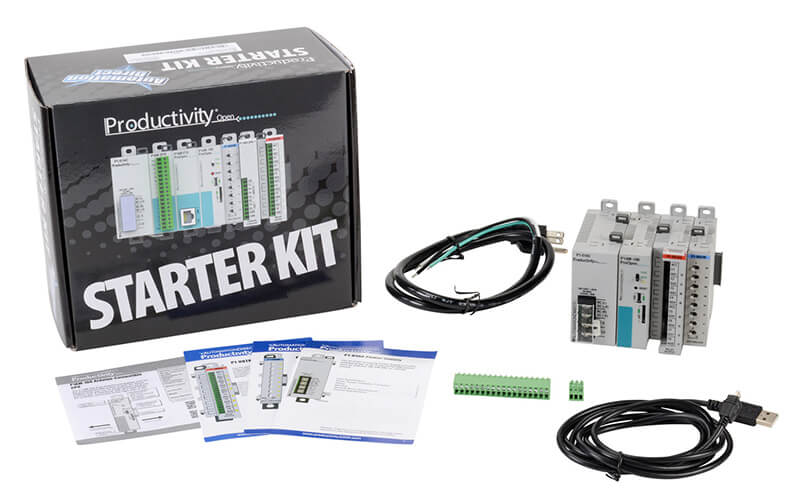

A convenient start to a project which will use primarily Productivity1000 input and output modules:
