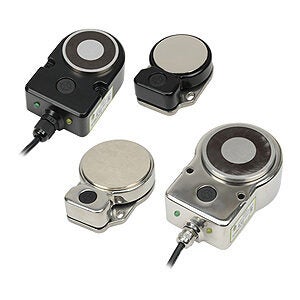

Non-contact magnetic locking RFID safety switches monitor / lock machine guards, doors, windows, or other machinery. These models combine both magnetic locking and RFID technology to provide tamper-proof protection using uniquely coded actuators. Contact is not required between switch and actuator.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Magnetic Locking RFID Safety Switches
Category Selection

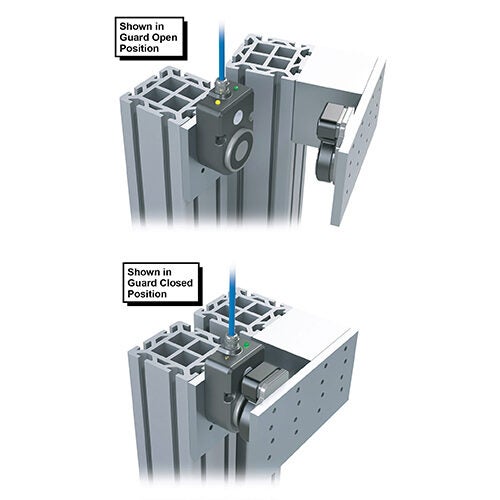

Magnetic locking RFID safety switches provide a means of locking machine guards, doors, gates, etc. and also monitor these safety barriers, disabling the guarded machinery when it is being accessed. Using RFID technology, these coded switches provide high anti-tamper protection to ensure the safety mechanism cannot be bypassed. The embedded electromagnet provides different levels of locking force and only when the proper actuator is in the correct position will the lock be achieved and the safety outputs closed.
For part listings and specifications, go to Shop Now

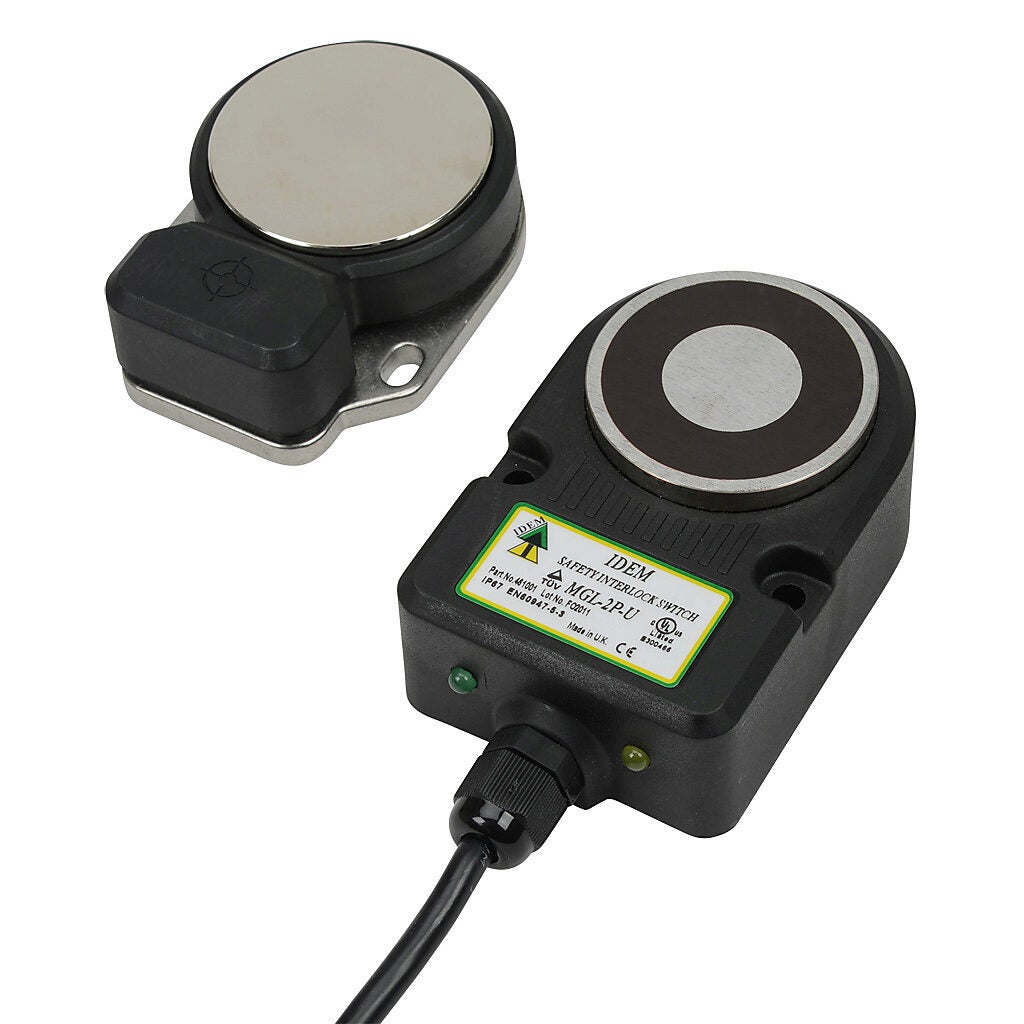

Uniquely Coded RFID Safety Switches
Uniquely coded magnetic locking RFID safety switches have a factory-set code that cannot be defeated with a different actuator and are used where additional tamper resistance is desired.
- IDEM brand
- Factory set requiring unique activation
- Flexible actuator for a high degree of misalignment tolerance
- Medium and heavy duty holding force
- Connect up to 20 switches and E-stops in series
- IP67 rated die-cast metal and polyester plastic models
- Stainless steel models are IP69K rated for food processing applications
Master Coded RFID Safety Switches
Master-coded magnetic locking RFID safety switches are coded by series so any actuator will operate any switch. This allows spare actuators to be used when needed and when additional tamper resistance isn't required.
- IDEM and SSP brands
- Medium and heavy duty holding force
- Models available that are the perfect size for mounting on SureFrame T-slotted rails
- Select models feature Bluetooth connectivity and extended LED diagnosis for smart operation and fast evaluation
- IP67 rated die-cast metal, polyester plastic, and aluminum/plastic models
- Stainless steel models are IP69K rated for food processing applications

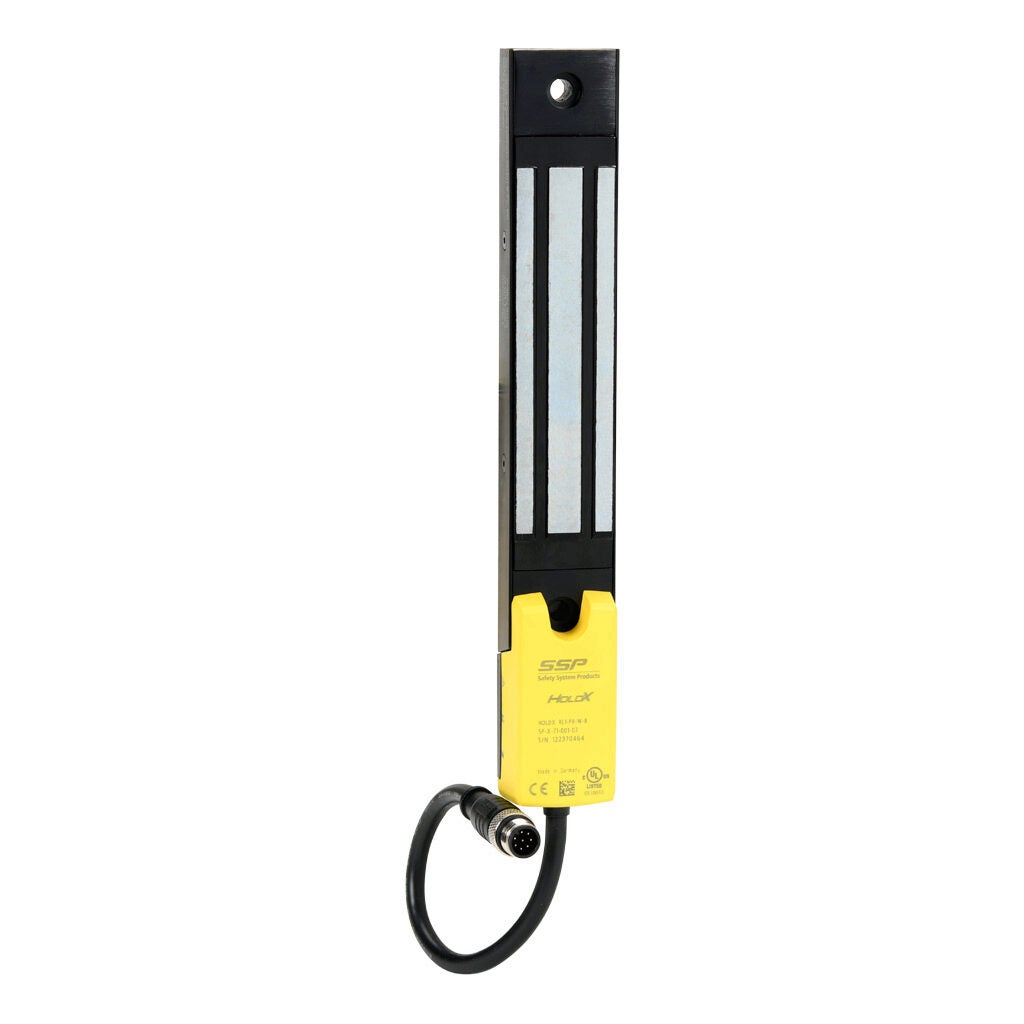

Reteachable RFID Safety Switches
Reteachable magnetic locking RFID safety switches work similarly to uniquely coded models but offer the ability to reteach the switch to accept a new actuator. These models have a factory-set code that cannot be defeated with a different actuator unless the switch gets retaught for the new actuator.
- SSP brand
- Medium and heavy duty holding force
- Configurable over Bluetooth interface
- Extended LED diagnostics for smart operation and fast evaluation
- Perfect size for mounting on SureFrame T-slotted rails
- Aluminum/plastic housing with IP67 protection rating

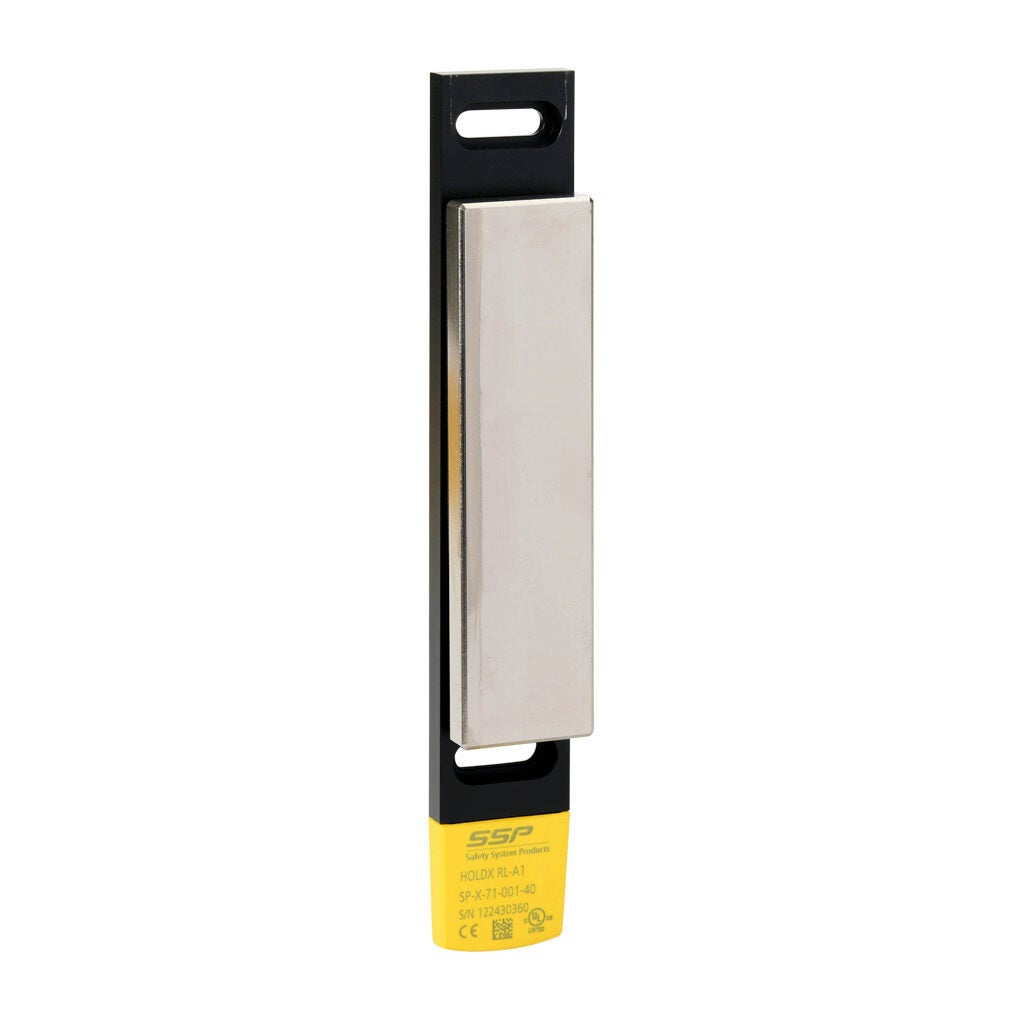

Magnetic Locking RFID Actuators
Magnetic locking RFID actuators are the components mounted opposite the switching element that the switch locks to and uses to detect a closed or open position.
- IDEM and SSP brands
- Actuators available for replacement master coded switches and reteachable switches
- Available with or without a permanent magnet that acts as a latch when switch is unlocked
