Residual current monitors protect equipment, facilities, and processes by detecting leakage currents in grounded AC or DC systems. They provide warning and alarm outputs with wide adjustment ranges to support preventive maintenance and tailored fault responses while avoiding unnecessary trips.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
AC/DC Residual Current Monitors
New!

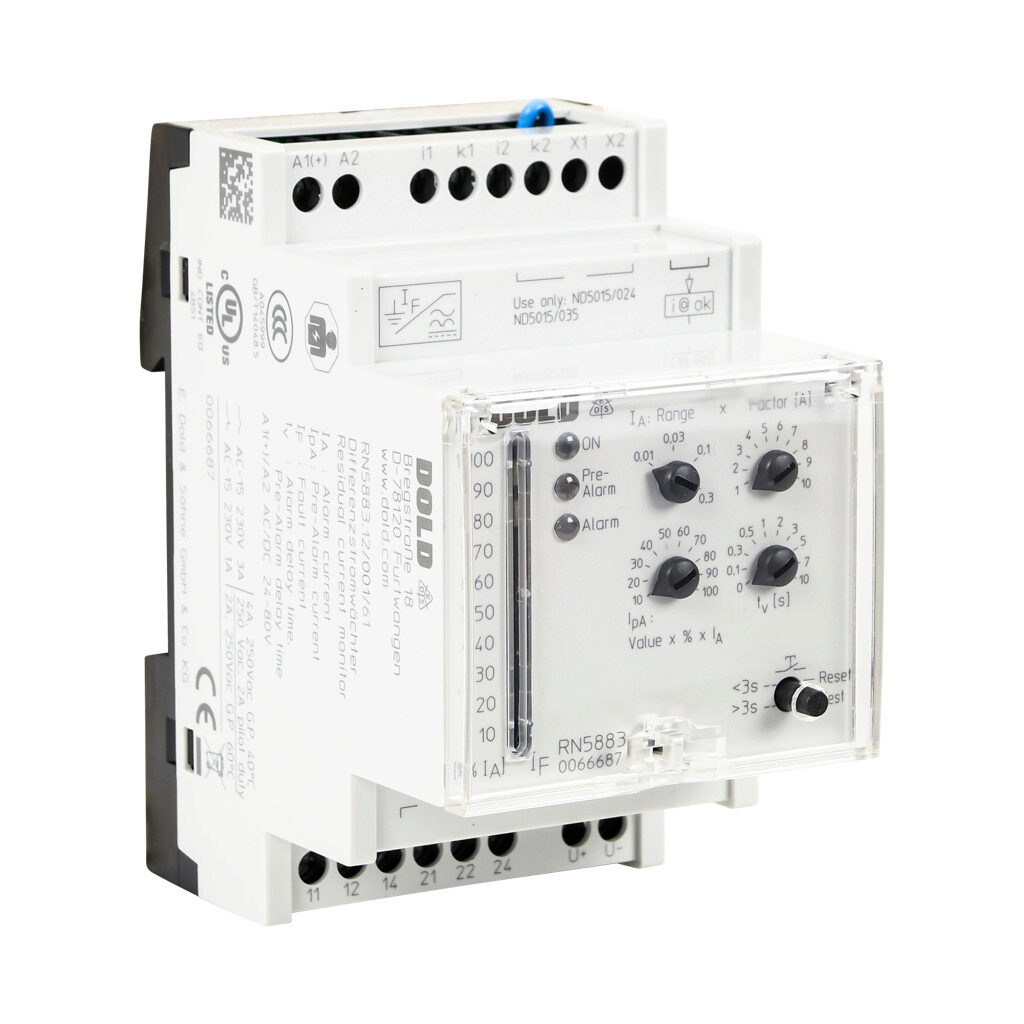

Dold RN5883 series AC/DC residual current monitors work with external residual (differential) ND5015 series current transformers (sold separately) to detect insulation faults, leakage currents, and broken conductors. When the residual (fault) current exceeds user-defined thresholds, they provide early warning alerts to help prevent equipment damage, operator injury, and unplanned shutdowns.
- Compatible, remote mountable ND5015 AC/DC current transformer required
- Selectable current ranges from 10mA to 3A
- 0–10 VDC output proportional to the residual current
- DIN-rail mount
- User-configurable warning and alarm outputs (SPDT relays) with adjustable time delays and manual reset
- Simple adjustment via latching rotary switches
- LED bar graph for real-time visual feedback of the measured current
Priced at
$470.00
(RN5883-001-24-80V)
For part listings and specifications, go to Shop Now
