Measuring light grids detect and measure various sized and shaped objects as they pass through the target area. With discrete and analog outputs, they can sense presence and measure object height anywhere within the controlled height of the sensor array. (Not for use as safety light curtains)
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Measuring Light Grids
Category Selection
Unlike detection light grids that only detect an object's presence within the grid, measuring light grids also measure the object's height. These grids provide a proportional analog output or communication signal to a controller and are ideal for:
- Detecting chute or hopper fill status
- Measuring product stacking heights (such as paper stacks) or pallet heights
- Sorting objects based on their height
- Ensuring proper orientation of products (such as conveyed products passing under an overhead labeler)
These devices require a sender (emitter) and receiver, and may be sold as individual components or as a pair.
For part listings and specifications, go to Shop Now
Micro Detectors CX2 Series Measuring Light Grids
Micro Detectors CX2 series light grids feature a rugged aluminum housing and offer advanced features such as parallel beams, crossed beams, and blanking function to increase reliability, reduce false triggering, and provide flexible configuration options.
- 160mm to 960mm detection heights
- 5mm or 10mm beam resolution (pitch) models
- Operating distance up to 6m (depending on model)
- 4 to 20 mA or 0 to 10V VDC analog output models
- PNP output, NO/NC configurable
- 16.8 to 30 VDC operating voltage
- Teach-in adjustment
- Sold as sender/receiver pairs
- IP67 protection rating
Starting at
$344.00
(CX2E0RF-10-016V)

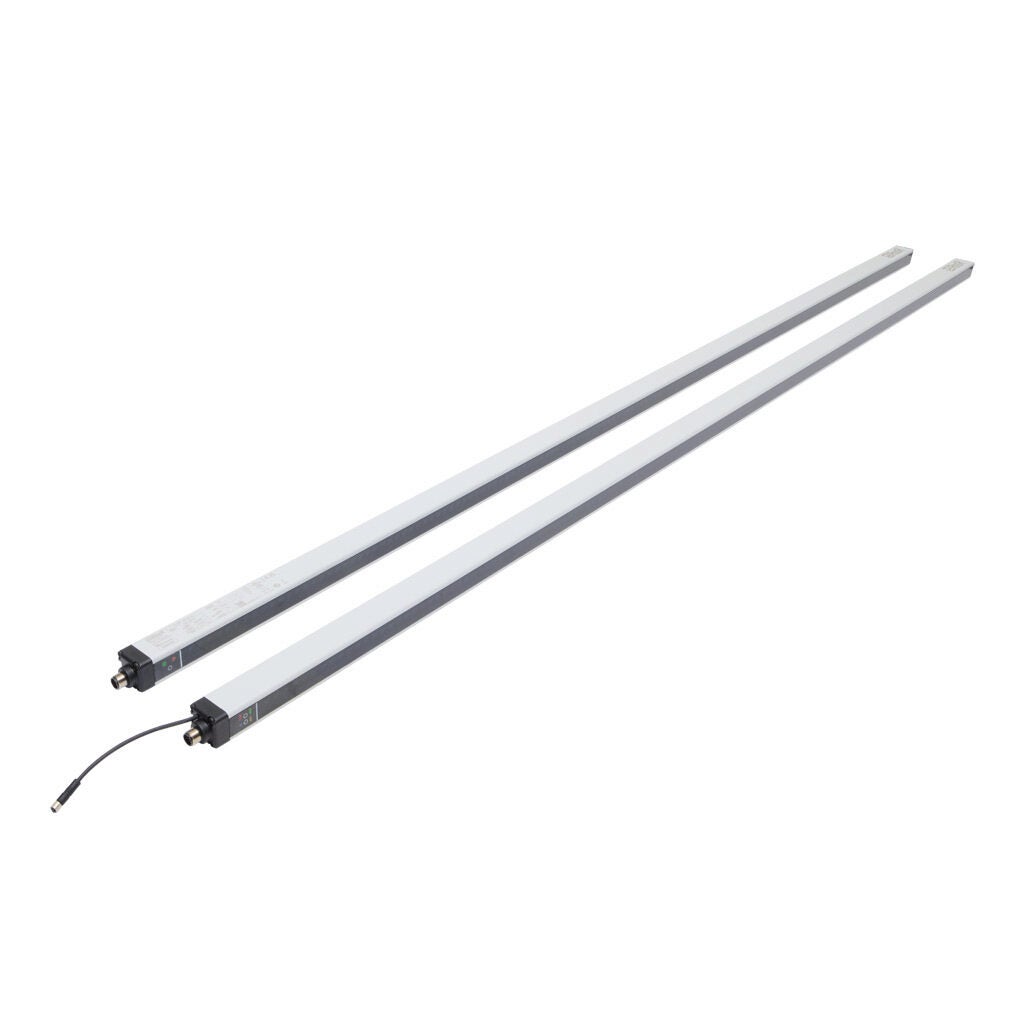

ReeR Micron Series Measuring Light Grids
ReeR Micron series light grids with analog outputs are compact sensing devices for precision measurement and positioning tasks. They are configurable via free, easy-to-use software that offers an extensive parameter selection.
- 270mm to 1490mm detection heights
- 10mm or 30mm beam resolution (pitch) models
- 0 to 10m operating distance
- 24 VDC operating voltage
- Two 4 to 20 mA configurable analog outputs
- Two configurable push-pull switching outputs
- Rugged anodized aluminum housings
- Sold as sender/receiver pairs
- Purchase cables separately
- IP65/67 protection rating
Starting at
$591.00
(MI303-AC)

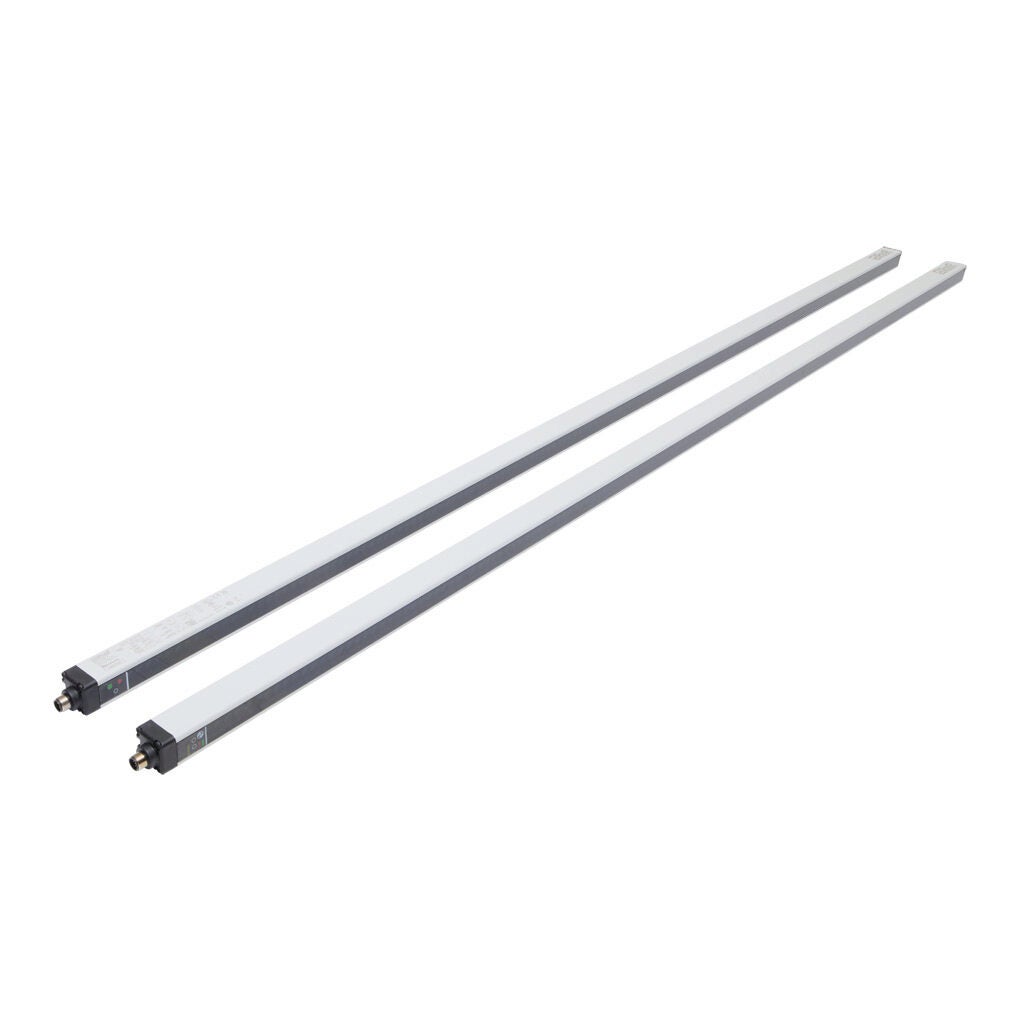

ReeR Micron Series Measuring Light Grids with IO-Link Compatibility
ReeR Micron series light grids with IO-Link compatibility offer precise object detection, measurement, and identification. These versatile industrial sensors provide remote, on-the-fly parameter changes, advanced warnings of potential issues, and flexible setup, with protected heights and beam spacings to suit a variety of applications.
- 270mm to 1490mm detection heights
- 10mm or 30mm beam resolution (pitch) models
- 0 to 10m operating distance
- 24 VDC operating voltage
- Analog output via IO-Link
- Configurable via IO-Link
- Rugged anodized aluminum housings
- Sold as sender/receiver pairs
- Purchase cables separately
- IP65/67 protection rating
Starting at
$650.00
(MI303-IOL)
