Split point step drills cut fast, clean holes in up to 1-3/8 inch step sizes. Self-centering split point tips allow for accurate, quick starts without pilot holes. Bits are available in either 3-flat or quick-release hex shank configurations, with gold oxide finish or titanium nitride coating.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Step Drills

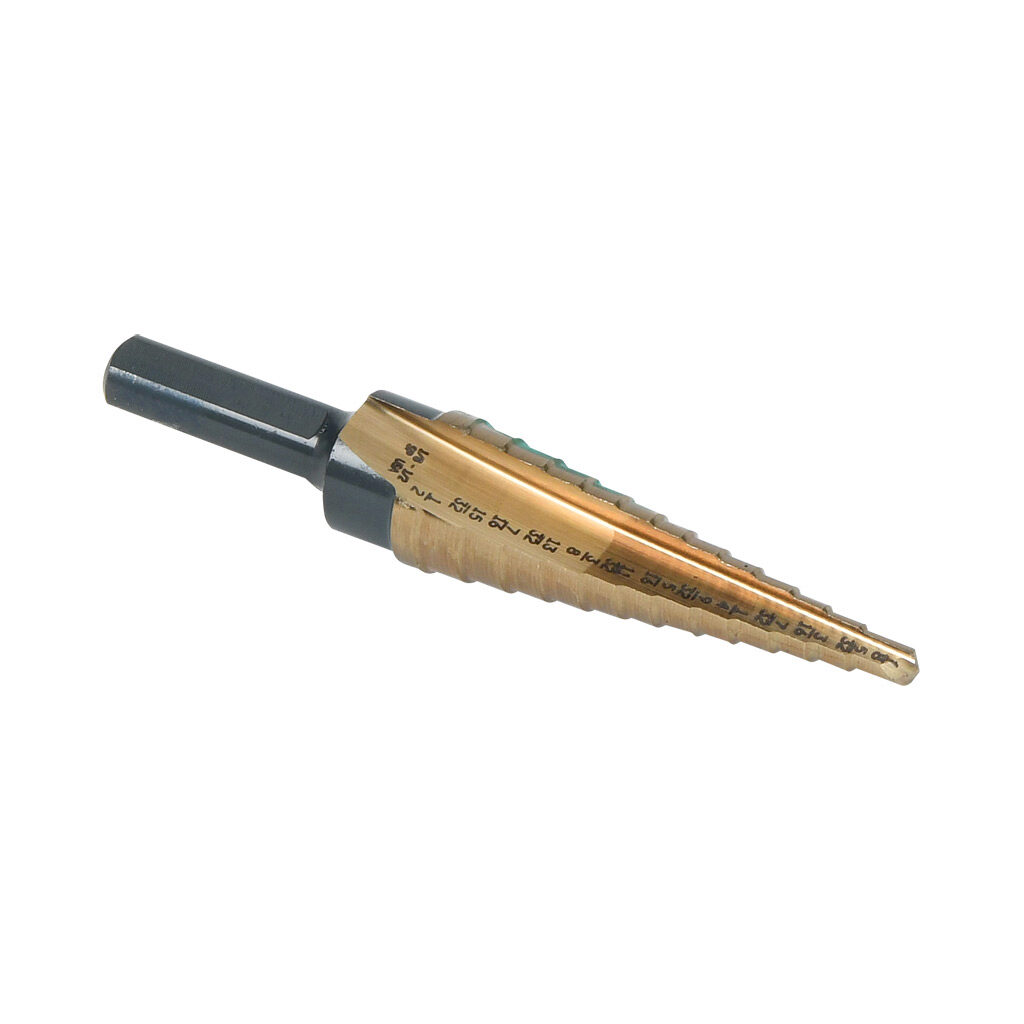

Viking Split Point 3-flat Step Drill Bits

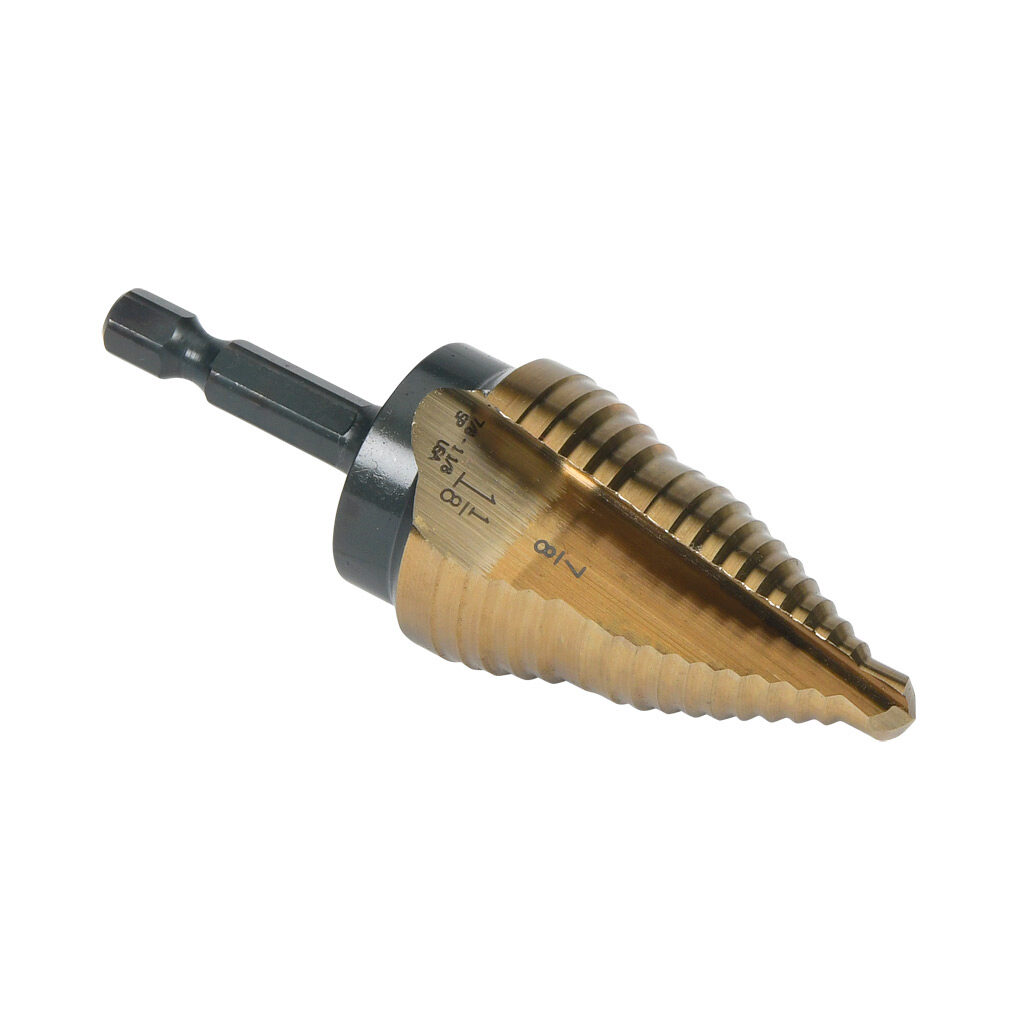

Viking Split Point Quick Release Step Drill Bits

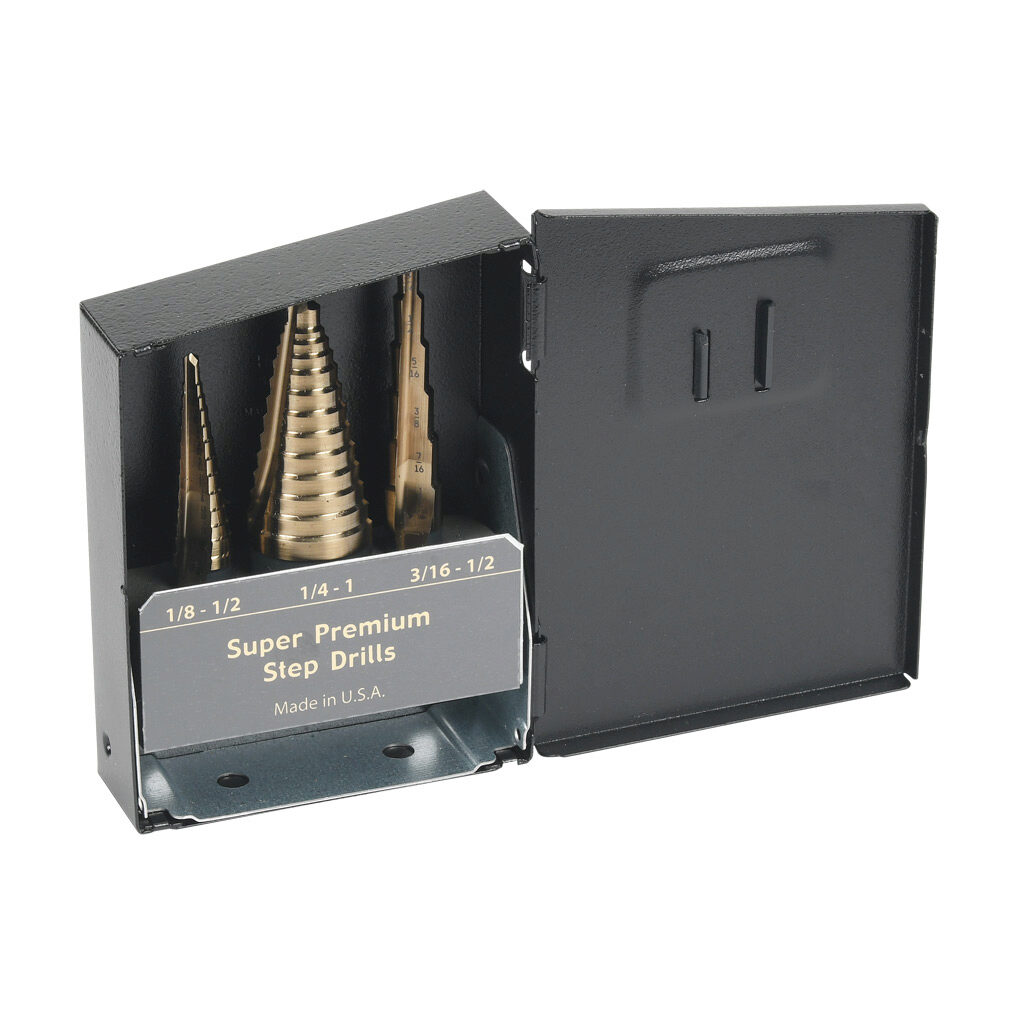

Viking Step Drill Bit Set
Newest Additions!
- Viking split point step drills
Viking Split Point Step Drills
What are the options?
- Split point step drills are available in HSS (high-speed steel), with a choice of titanium nitride (TiN) coating or gold oxide finish to enhance durability, reduce friction, and extend tool life
- Available in both 3-flat and quick release hex shank configurations
- Sold individually or in sets
Features
What makes these step drills special?
- 135° angle split point bits reduce walking or skidding, improve chip evacuation, and create cleaner holes with less burr formation
- Dual-flute construction with self-centering tips facilitates clean, accurate hole-making
- Axial and radial flute geometry allows these bits to deliver enhanced penetration and cleaner, more accurate holes in thin materials
- The TiN finish extends cutting edge life, lasting up to six times longer than uncoated bits, while maintaining sharpness and performance across repetitive tasks
Applications
- Thin metals, rigid plastics, wood, and composite materials
- Sheet metal working in electrical, sanitary engineering, heating technologies, automotive, mechanical engineering, switching systems, and aviation
- Perform especially well up to the thickness of a single step
Note: For steel 1/8" or thicker, a pilot hole matching the smallest step diameter is recommended to optimize drilling speed and efficiency.
Starting at
(101701)
For part listing and specifications, go to Shop Now
