NSF certified potable water solenoid valves are approved for sanitary applications. These valves are available in direct-acting or piloted-diaphragm operator styles, in a range of port sizes, orifice sizes and solenoid voltages. Zero-differential models do not require a minimum pressure to operate.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
NSF Potable Water Solenoid Valves
Category Selection
The National Sanitation Foundation (NSF) certifies that food equipment is hygienically designed and built in accordance with US Food and Drug Administration (FDA) health standards. They do this in part by rigorously testing and analyzing products and their materials for adherence to proper food safety regulations. NSF potable water solenoid valves are available in direct-acting or piloted diaphragm versions with a nylon, stainless steel, or lead-free brass body.
- Pilot-operated valves have an armature that acts on a pilot orifice, which releases pressure and volume above the diaphragm, allowing the differential pressure of the fluid to open the valve and control fluid flow.
- Valves with zero differential action can operate under zero head pressure (do not need a differential pressure across the valve to work)
- Direct acting valves have an armature that acts directly on the valve orifice to control fluid flow and does not require a minimum pressure to operate.
For part listings and specifications, go to Shop Now

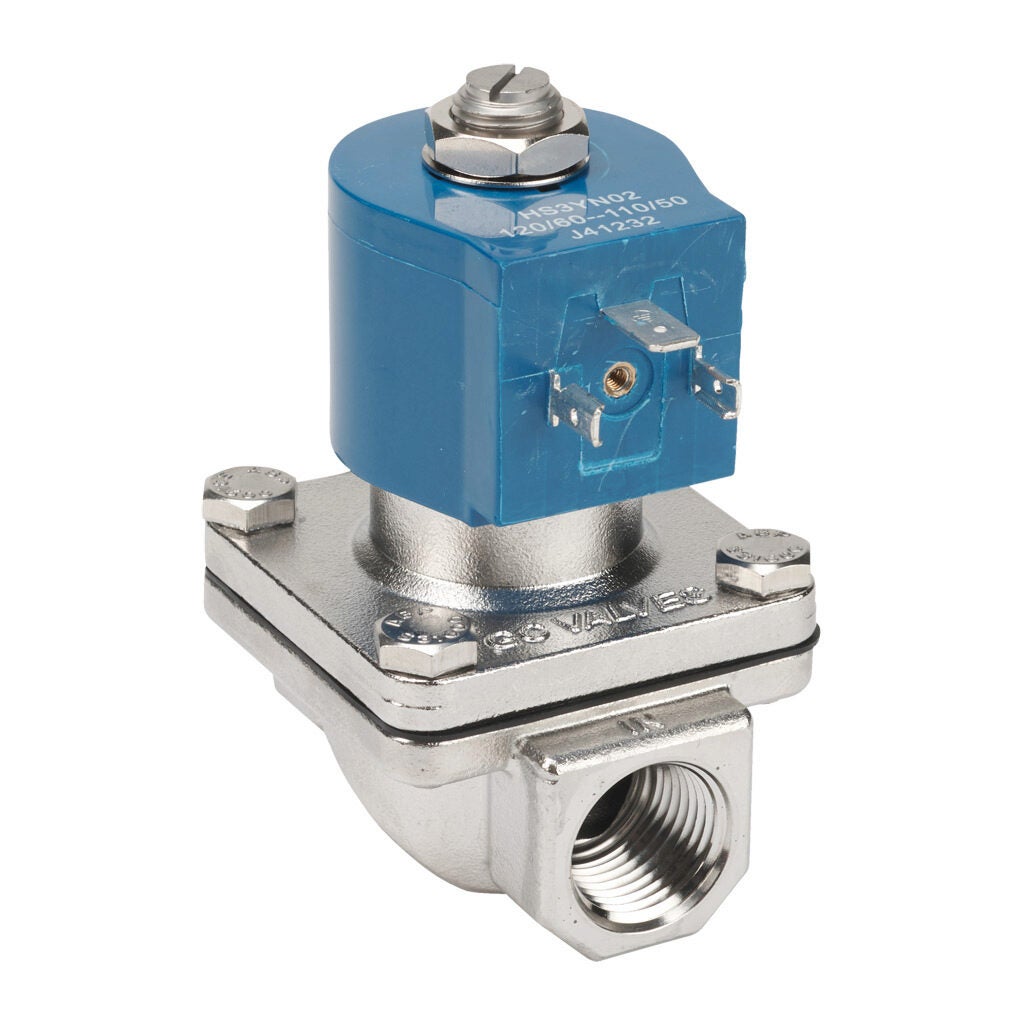

201/211/301 Series Stainless Steel Water Valves
GC Valves 201 and 211 series 2-port 316 stainless steel and 301 series 2-port 303 stainless steel water valves are an excellent choice for potable water applications requiring strict hygiene requirements. They are certified to NSF/ANSI/CAN 61 and offer high pressure ratings.
- 2-port (2-way), 2-position
- Stainless steel (303 or 316) bodies
- Normally closed (N.C.) configuration
- 18mm (DIN 43650A) style wiring plug
- Piloted diaphragm or direct-acting operator
- Port sizes: 1/4, 1/2, 3/4, 1, 1-1/4, 1-1/2, or 2 inch female NPT
- 120 VAC, 24 VAC, or 24 VDC solenoids
- 8- or 10-watt solenoid coil rating
- Approved for use with water only
- 201 series can be used in applications where the pressure drops to 0 psi
- 301 series are high-pressure valves and are rated for up to 400 psi (depending on model)
- Made in the USA
Starting at
$125.00
(NS301YF02C3BD5)

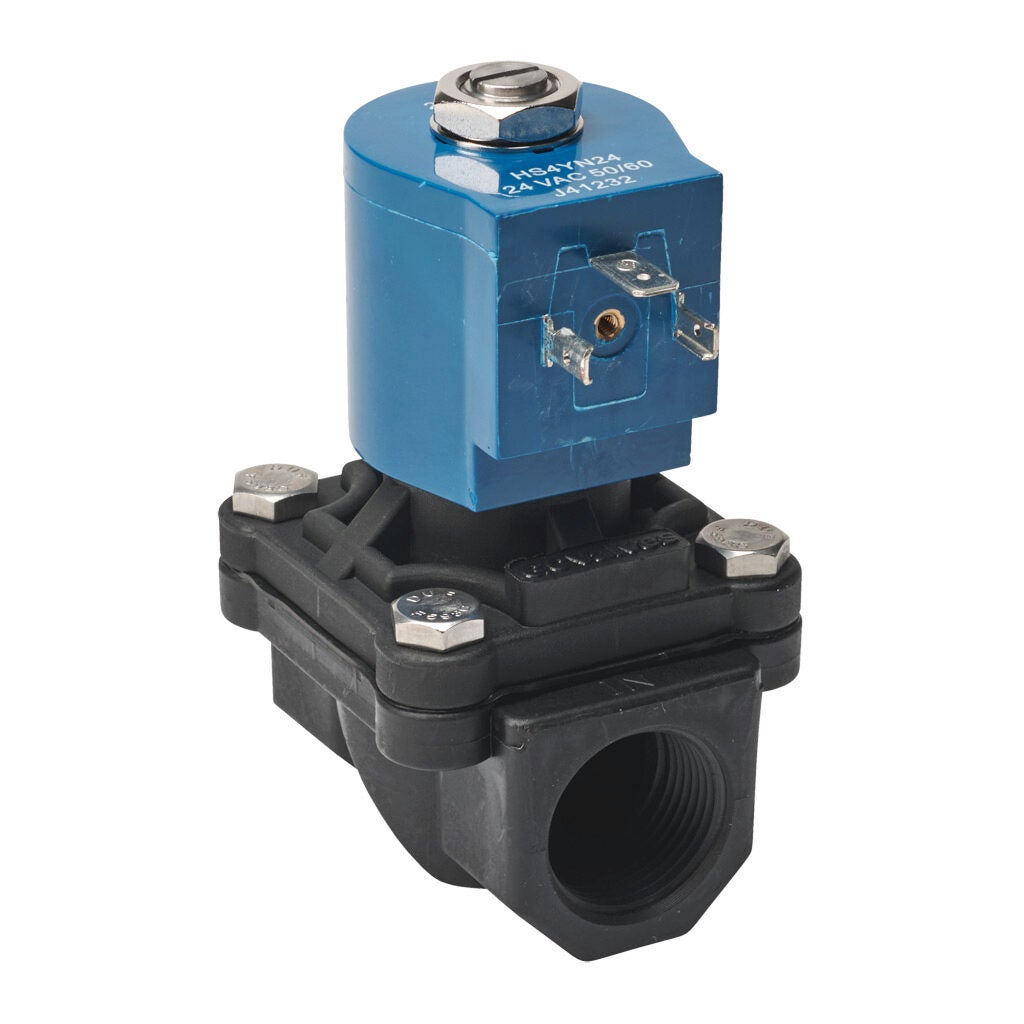

201/211 Series Nylon Water Valves
GC Valves 201 and 211 series 2-port Nylon 6 water valves are an excellent choice for potable water applications requiring a lightweight valve with good chemical resistance. They are certified to NSF/ANSI/CAN 61 and offer up to a 150-psi maximum operating pressure.
- 2-port (2-way), 2-position
- Nylon 6 bodies
- Normally closed (N.C.) configuration
- 18mm (DIN 43650A) style wiring plug
- Piloted diaphragm
- Port sizes: 3/8, 1/2, and 3/4 female NPT
- 120 VAC, 24 VAC, or 24 VDC solenoids
- 8- or 10-watt solenoid coil ratings
- Approved for use with water only
- 201 series can be used in applications where the pressure drops to 0 psi
- Made in the USA
Starting at
$127.00
(NS211YF24CPCG4)

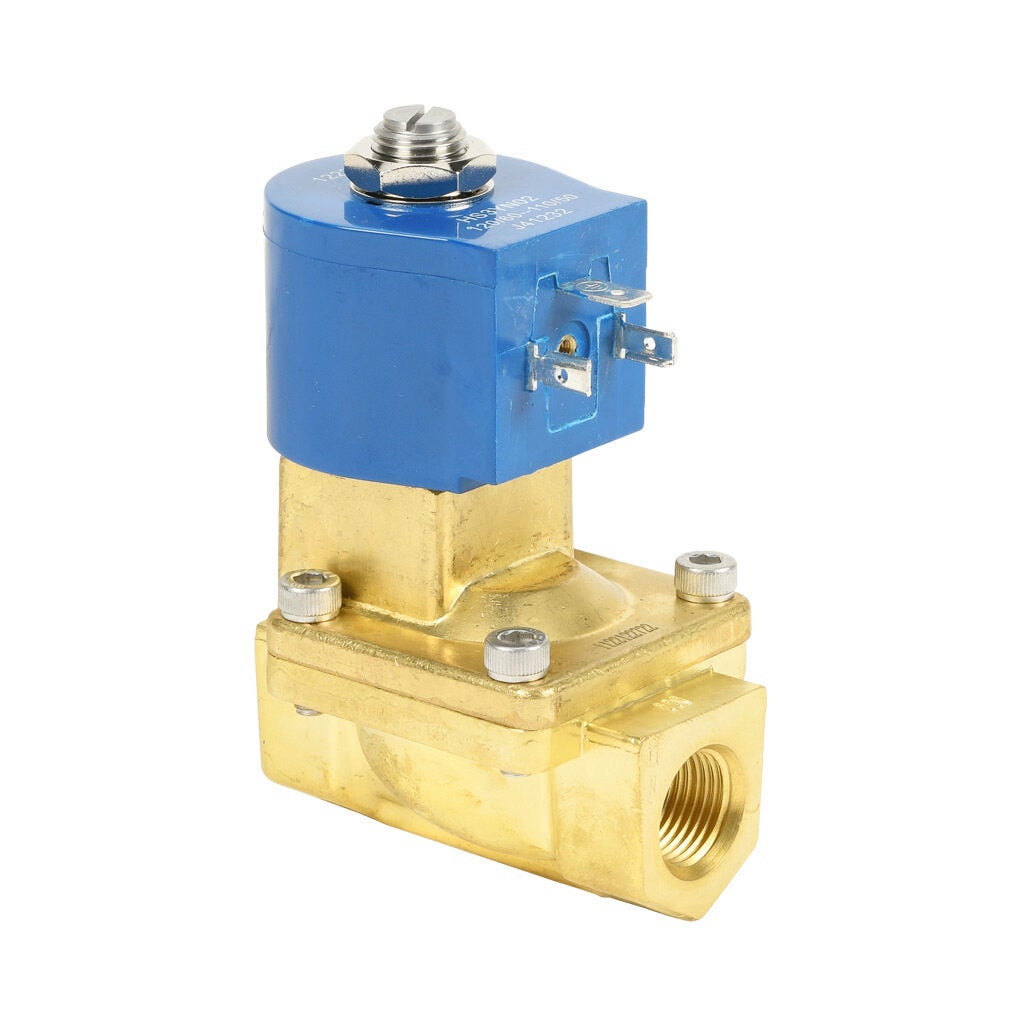

71 Series Lead-Free Brass Water Valves
New!
GC Valves 71 series 2-port water valves are constructed of durable lead-free brass. They are certified to NSF/ANSI 61 and have NSF-approved EPDM diaphragms. These durable valves are ported for many popular NPT sizes and offer a 150 or 200psi maximum operating pressure.
- 2-port (2-way), 2-position
- Lead-free brass bodies
- Normally closed (N.C.) or normally open (N.O.) configuration
- 18mm (DIN 43650A) style wiring plug
- Piloted diaphragm
- Port sizes: 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, or 2 inch female NPT
- 120 VAC or 24 VDC solenoids
- 8- or 9-watt solenoid coil ratings
- Approved for use with water only
- Made in the USA
Starting at
$140.00
(NS711YH02C9CG1)
