Configuring Signal Modules

Topic: PAL007

The NITRA PAL Electro-Pneumatic System offers an array of signal modules that can be added to the system for monitoring discrete, analog, and temperature input, as well as controlling discrete and analog output.

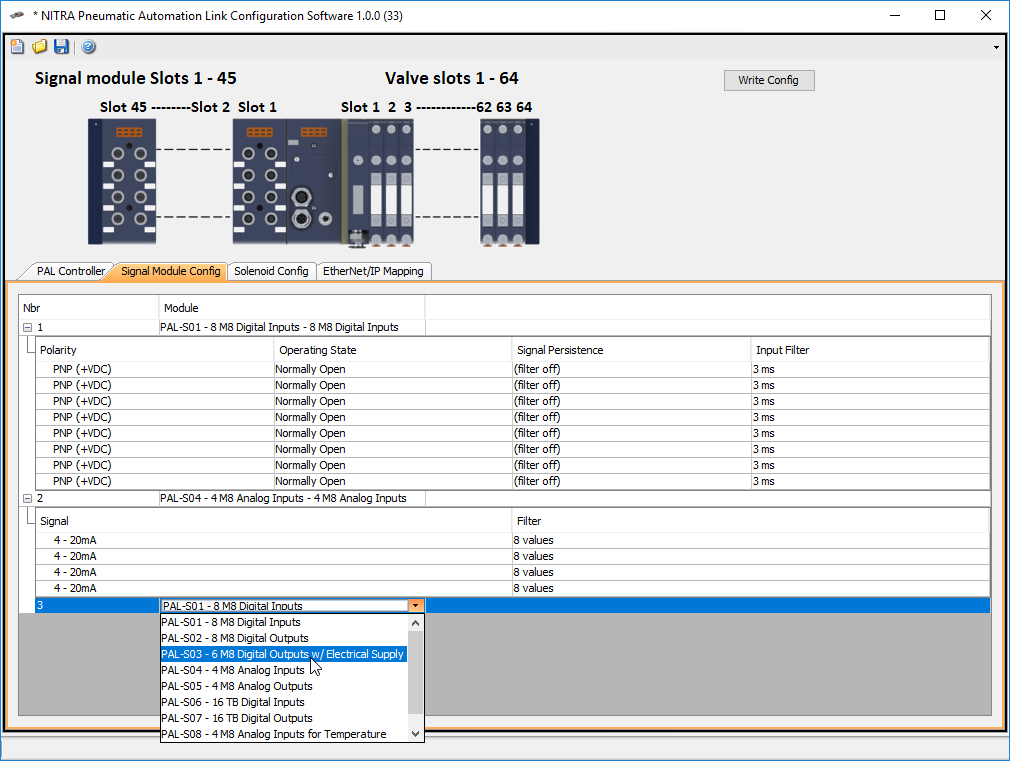

Add modules beginning with Slot 1 in the order that they are physically installed. Each slot reference (row) in the software can be expanded to display the individual parameters for the module or collapsed to hide the parameters. Use the links below to see the available settings for each signal module.





Use the links below to view each signal module.

PAL-S01 (8-Point Digital Input Module)

PAL-S02 (8-Point Digital Output Module)

PAL-S03 (6-Point Digital Output Module)

PAL-S04 (4-Channel Analog Input Module)

PAL-S05 (4-Channel Analog Output Module)

PAL-S06 (16-Point Input Module)

PAL-S07 (16-Point Digital Output Module)

PAL-S08 (4-Channel Temperature Input Module)
