Protos X Distributed I/O System Topologies
Daisy Chaining:
Terminal Placement Recommendations

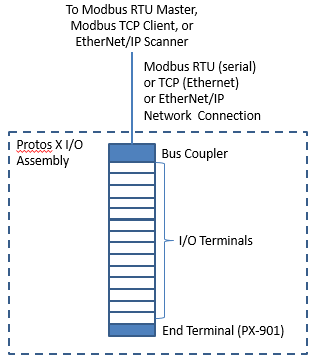

Single Assembly:
- Assemblies always start with a Bus Coupler
- Select up to 64 I/O Terminals
- Each Terminal can connect from 2 to 16 I/O devices
- Byte Limits Apply (512 input/512 output)
- Bus Power Budgets Apply
- I/O Bus Power Budget is tracked by this selector
- Terminal Bus(es) - user must track PB independently
- End Terminal always required

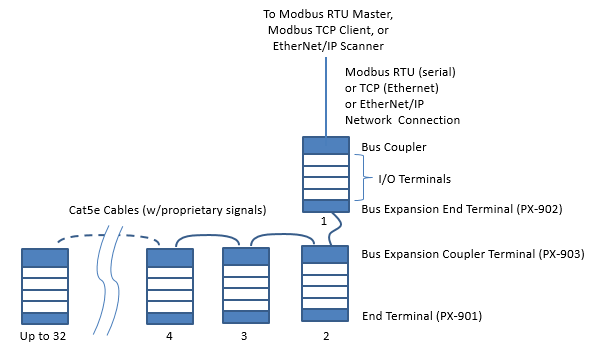

Bus Expansion:
- Bus Coupler – PX-MOD or PX-TCP1
or PX-EIP1
(PX-TCP2 does not allow Bus Expansion) - Maximum 64 I/O Terminals per Assembly
- Maximum 32 Assemblies in an Expansion Group
- Byte Limits (512 input/512 output)
apply to group as a whole.
Bus Expansion uses standard Cat5e cables - but the signals are proprietary
(NO switches/hubs/routers allowed)
(NO switches/hubs/routers allowed)

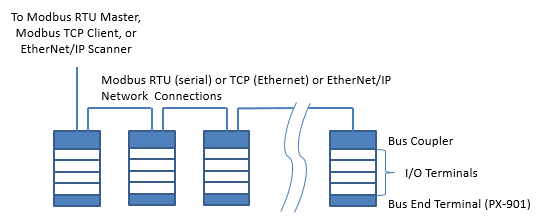

Daisy Chaining:
- PX-MOD Bus Coupler: daisy chain via RS-485 port
- PX-TCP2 Bus Coupler: 2-port Ethernet Switch built-in
- PX-TCP1 Bus Coupler: Can be daisy chained with a standard Ethernet switch
- PX-EIP1 Bus Coupler: Can be daisy chained with a standard Ethernet switch
- Maximum 64 I/O Terminals per Assembly
- Maximum number of groups limited by Master or Client
- Byte Limits (512 input/512 output)
apply separately to each assembly. - Distance limits:
- 4000ft for Serial RS-485 connections (total)
- 330ft (100m) for Ethernet segments (between Bus Couplers or switches)

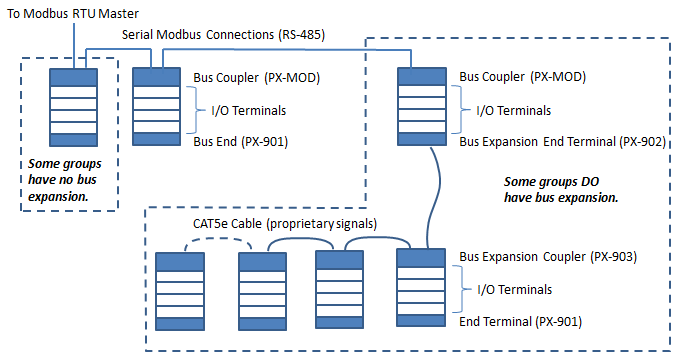

Hybrid w/Modbus RTU/ASCII
- Bus Coupler – PX-MOD
- Daisy Chain Groups via RS-485
- Use Bus Expansion where needed
- Maximum 64 I/O Terminals per Assembly
- Maximum 32 Assemblies in an Expansion Group
- Maximum of 99 Groups (may be limited by Modbus Master)
- Byte Limits (512 input/512 output)
apply to each group separately.

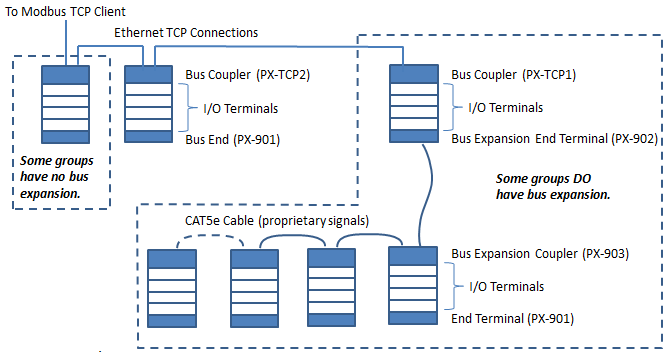

Hybrid w/Modbus TCP
- Bus Coupler – PX-TCPx
- Daisy Chain Groups via Ethernet
- Use Bus Expansion where needed
- Maximum 64 I/O Terminals per Assembly
- Maximum 32 Assemblies in an Expansion Group
- Number of Groups may be limited by the Modbus TCP client/li>
- Byte Limits (512 input/512 output)
apply to each group separately.
With the addition of an Ethernet Switch – all the bus couplers in this
example could be PX-TCP1.

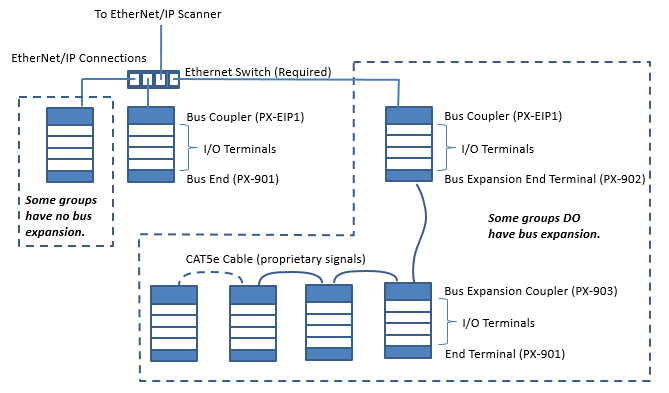

Hybrid w/EtherNet/IP
- Bus Coupler – PX-EIP1
- Daisy Chain Groups via Ethernet
- Use Bus Expansion where needed
- Maximum 64 I/O Terminals per Assembly
- Maximum 32 Assemblies in an Expansion Group
- Number of Groups may be limited by the EtherNet/IP Scanner
- Byte Limits (512 input/512 output)
apply to each group separately.
We only offer the PX-EIP1 (no PX-EIP2), so an Ethernet switch is required.
