HMI enclosure suspension arm systems consist of modular aluminum or stainless steel components (i.e., couplings, tubes, covers) that can be configured in various formats to allow operators to easily move or position an HMI enclosure to an ergonomically comfortable working position.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
HMI Enclosure Suspension Arm Systems
Suspension arm systems from Saginaw, Hammond, and Teknokol help ensure visibility of HMI displays and provide utmost operator comfort when working with an installed HMI (Human Machine Interface). They consist of modular components designed for use with specific HMI enclosures. These components can be put together in various configurations allowing the HMI to be repositioned into a location that is ergonomic and easily viewable for the operator.
Teknokol suspension arm systems have the added benefit of custom-ordered arm profiles that can be cut to fit your specific application. When ordering, simply specify the desired centimeter length for each arm profile (up to 187cm).
For part listing and specifications, go to Shop Now
Saginaw Aluminum Suspension Arm System
Aluminum suspension arm system components are constructed of heavy-duty aluminum and are RAL7035 gray powder coated.
- Cast aluminum couplings
- Open or closed extruded aluminum tubes (6060T66)
- Rotating couplings have adjustable tensioner brakes to control movement while in use
- Rigid, durable bearings in all rotating couplings withstand the stress of continuous use
Components starting at
(SCE-SAMM)

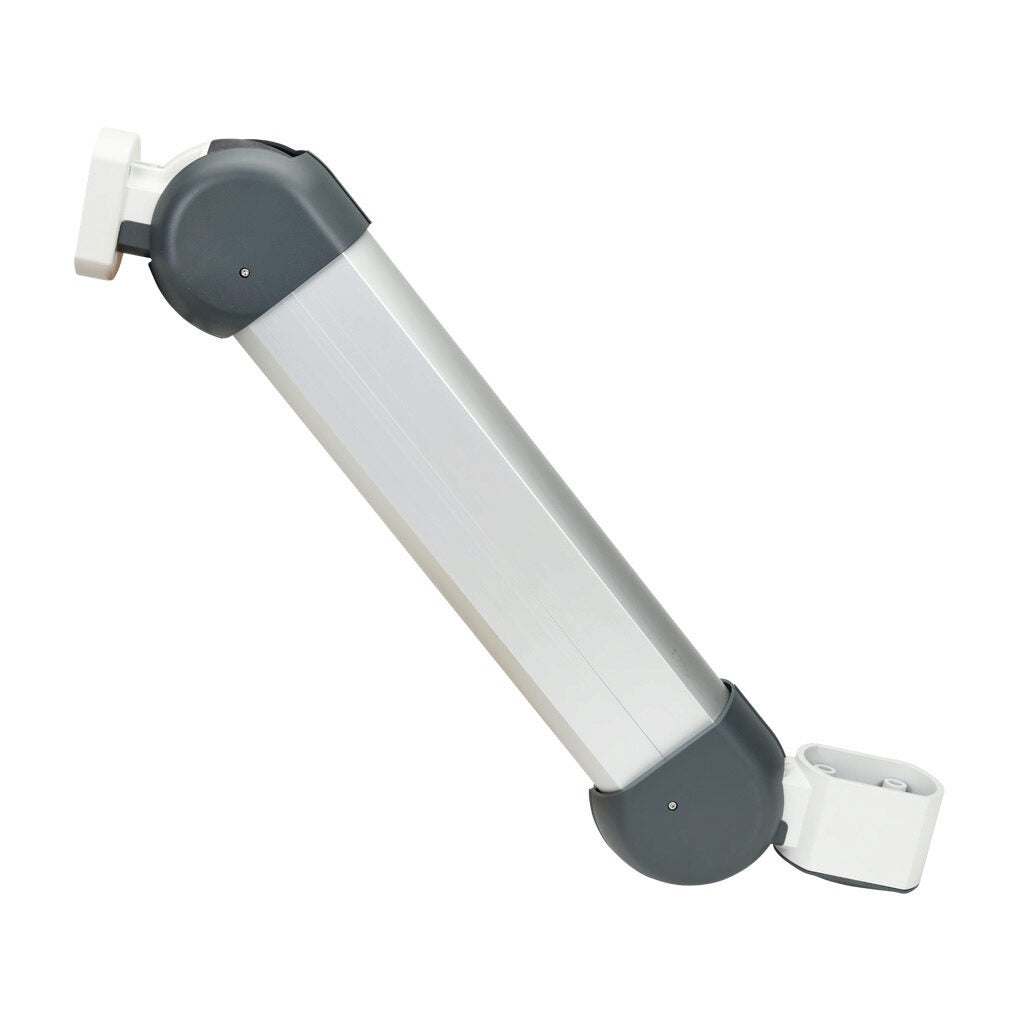

Saginaw Vertically Adjustable Aluminum Suspension Arm System
The vertically adjustable aluminum suspension arm system allows for height adjustments to the HMI enclosure position.
- Standard or heavy-duty counterbalanced height-adjustable arms
- Swivel joints and wall hinges
- Swivel and angle couplings
- Adapters
- Mounting bases
- Monitor mounting bracket
Components starting at
(SCE-SAMM)
Saginaw Stainless Steel Suspension Arm System
Stainless steel suspension arm system component options include:
- Continuous closed tube arms in straight, J, and S tube profiles act as conduit for feeding wiring
- Coupling, swivel joint, and angle adapter
- Floor stand and wall-mount adapter
- O-Ring gaskets maintain oil and watertight seal
- Removable access covers on all couplings
Components starting at
(SCE-SATFS)

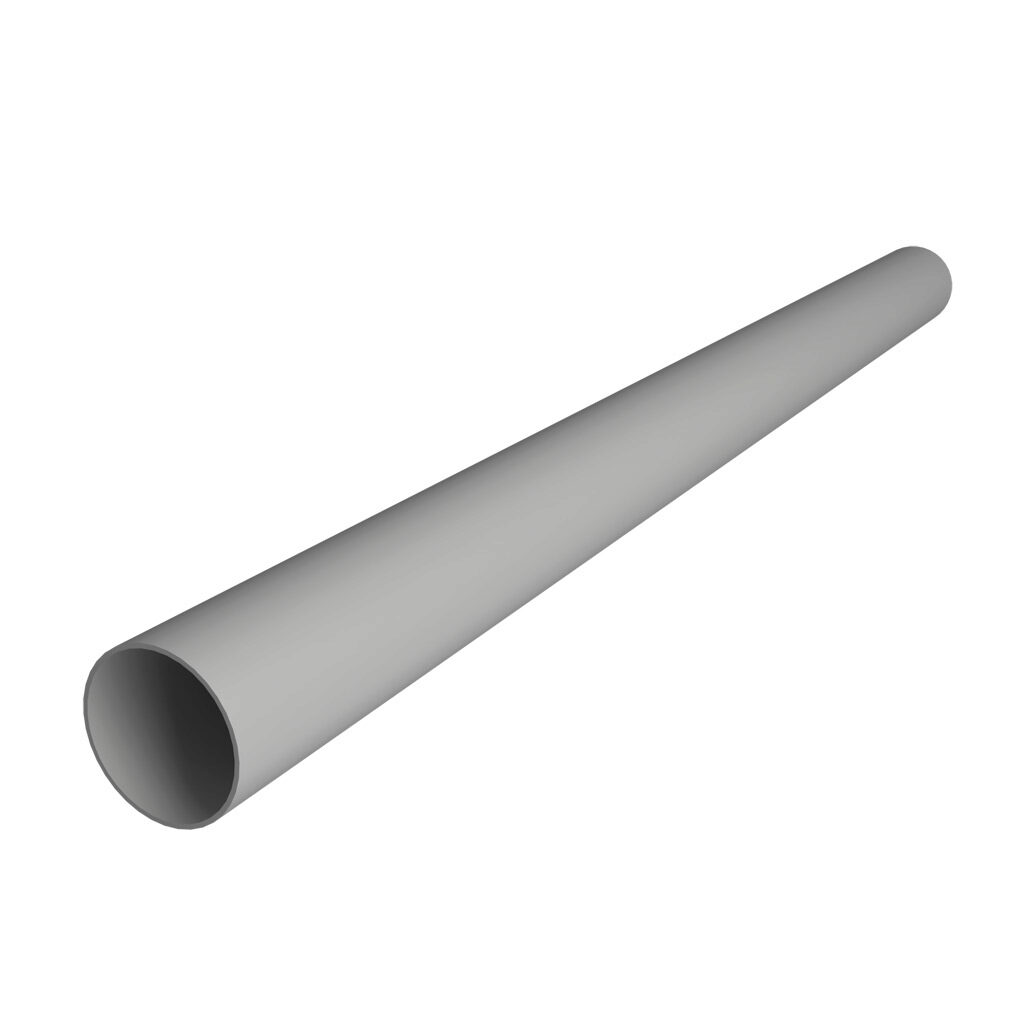

Hammond taraPLUS Suspension Arm System
New!
The Hammond taraPLUS suspension arm system enables operators to adjust and position ACE series HMI enclosures into a more ergonomic position. Systems can be configured into various assemblies to meet operator needs.
- Steel profile arm construction
- Die-cast G AL SI 12 aluminum joints and couplings
- Bearings used in all swiveling joints
- Wire management through profile tubes
Components starting at
(R140-045-000R)

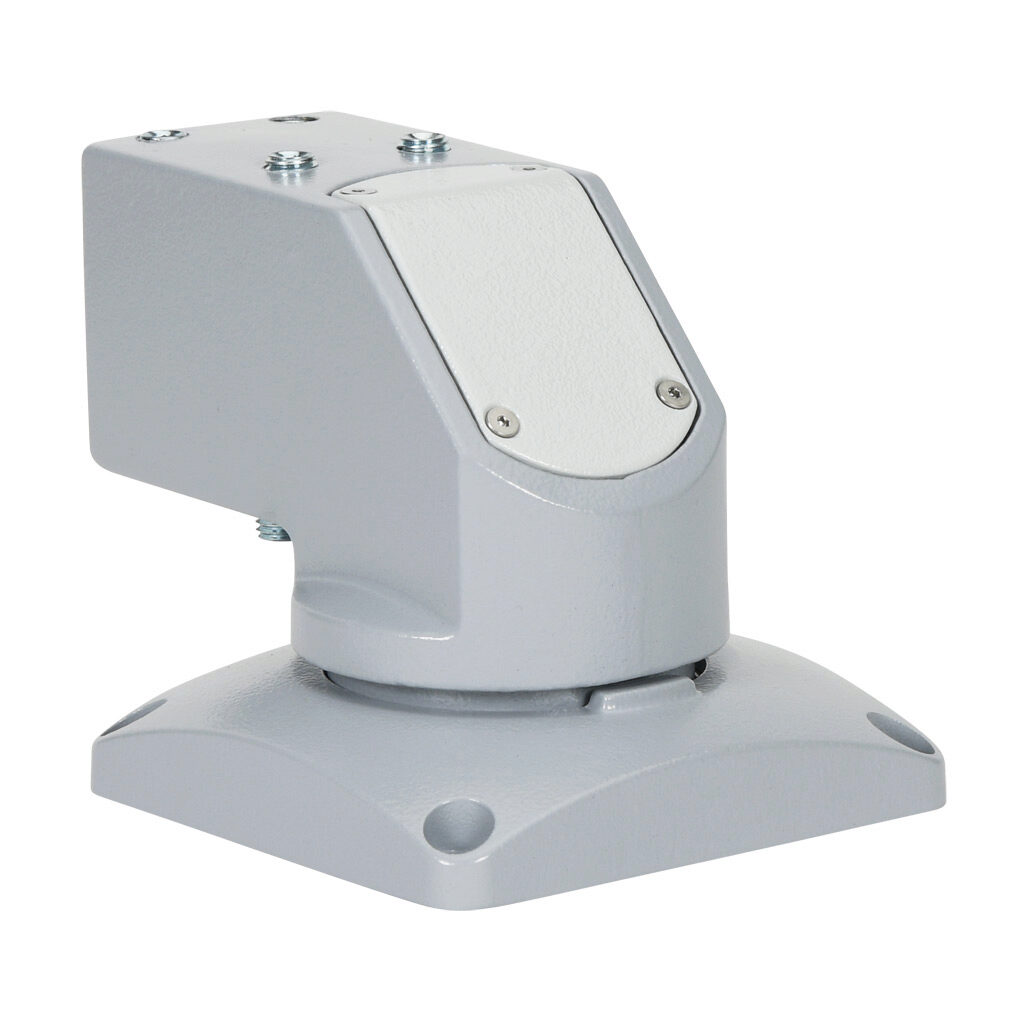

Hammond 50mm Heavy Duty Suspension Arm System
New!
The Hammond 50mm Heavy Duty suspension arm system provides robust structural support for larger enclosures and heavy equipment, ensuring stability and precise positioning during high-speed or repetitive operations.
- Steel profile arm
- 50 × 50mm square profile tubes
- Enhanced load capacity for larger installations
- Enclosure coupling and elbow coupling fittings are diecast from A04130 aluminum
Components starting at
(R140-045-000R)

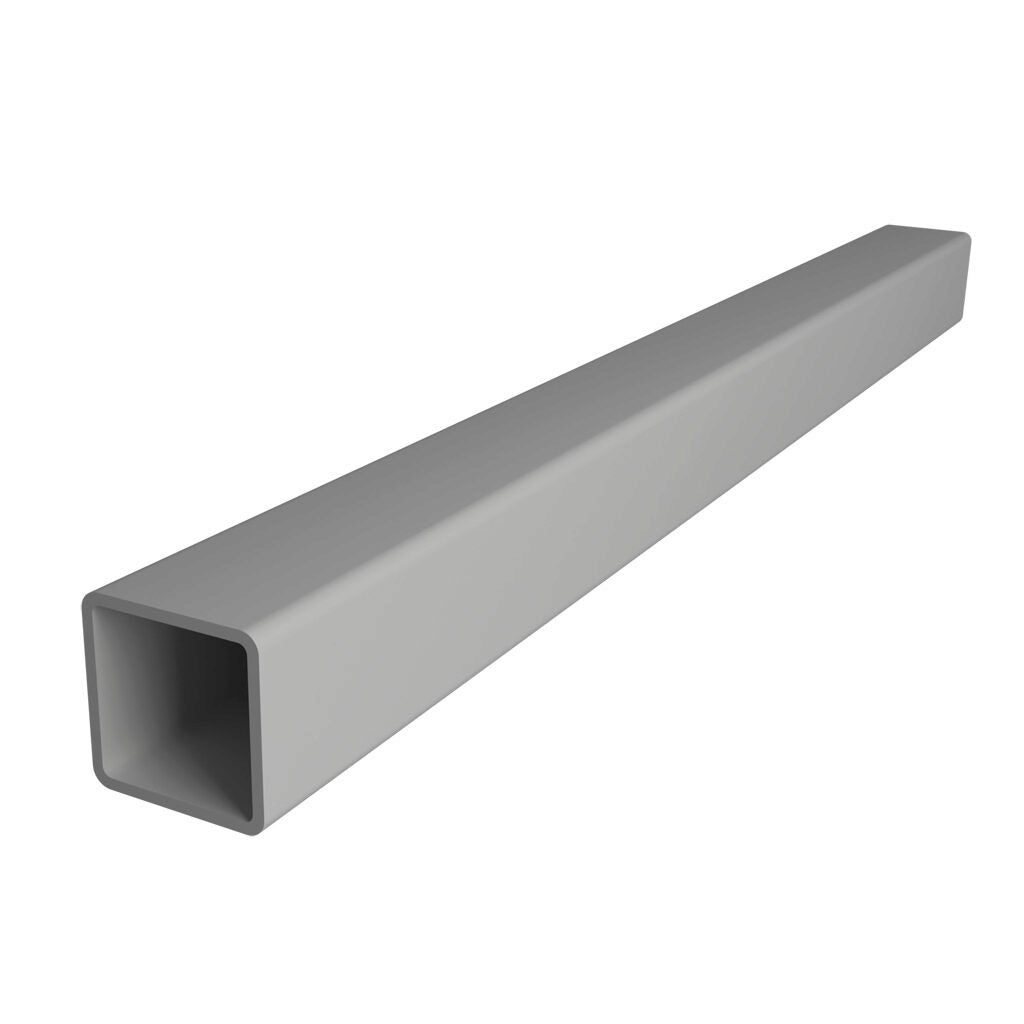

Hammond 80mm Heavy Duty Suspension Arm System
New!
The Hammond 80mm Heavy Duty suspension arm system provides robust structural support for larger enclosures and heavy equipment. Built for durability and harsh environments, this system can extend equipment lifespan, minimize maintenance costs, and improve overall efficiency.
- Steel profile arm
- 80 × 80mm square profile tubes for increased strength
- Enhanced load capacity for larger installations
- Enclosure coupling and elbow coupling fittings are diecast from A04130 aluminum
Components starting at
(R140-045-000R)

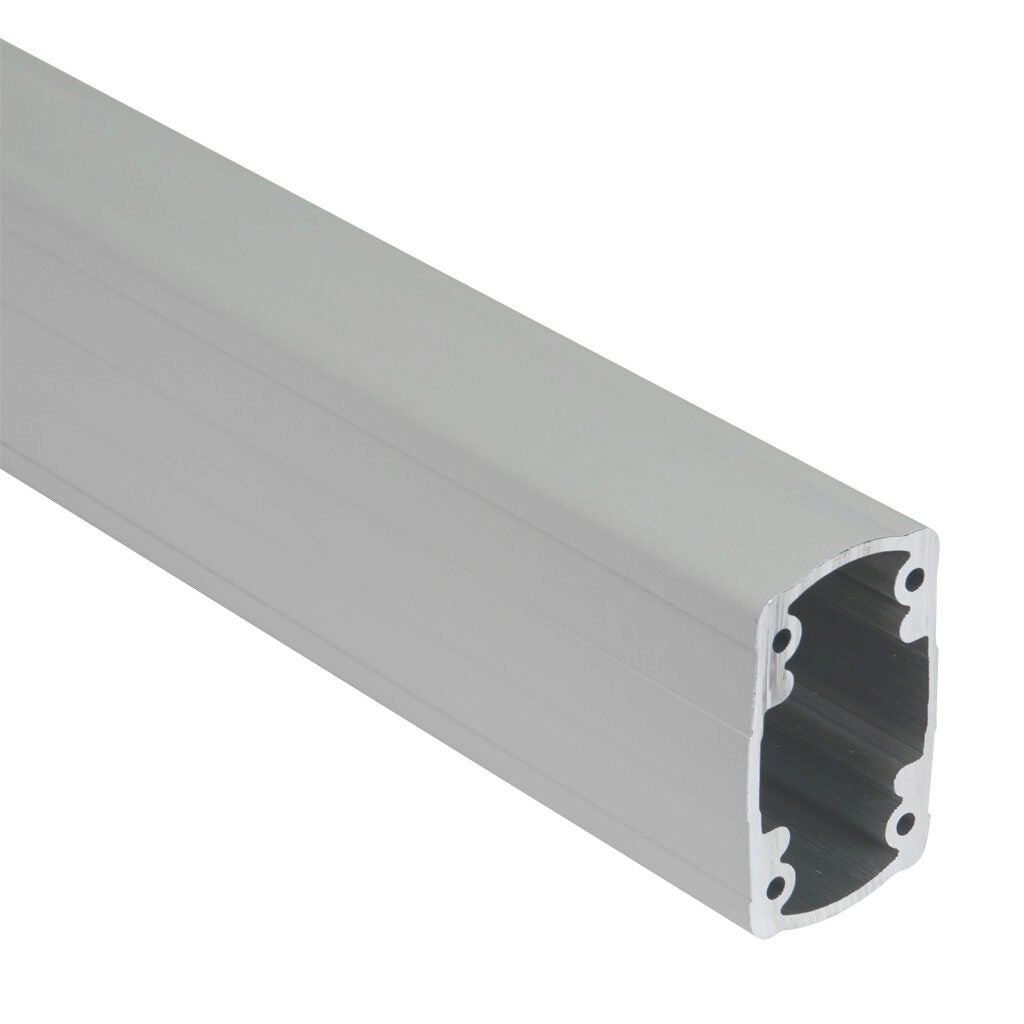

Teknokol TK060 Aluminum Suspension Arm System
The Teknokol medium-duty TK060 system supports up to a 225 lb load, depending on configuration. The suspension arm profiles can be ordered to full 2000mm length or in cut-to-length option that can be ordered to a specific cm length (up to 187cm) to fit the specific application.
Component options include:
- Straight or right-angle wall- and top-mount swivel bases
- Straight wall-mount swing base with bellow
- Fixed base
- 2000mm or cut-to-length up to 187cm suspension arm profiles
- Intermediate swivel joint
- Intermediate swing joint with bellow
- Straight or right-angle swivel couplings
- 90 degree elbow
- Inclining adapter with bellow
- Fixed coupling
Components starting at
/ cm (up to 200cm)
(TK060CTL)

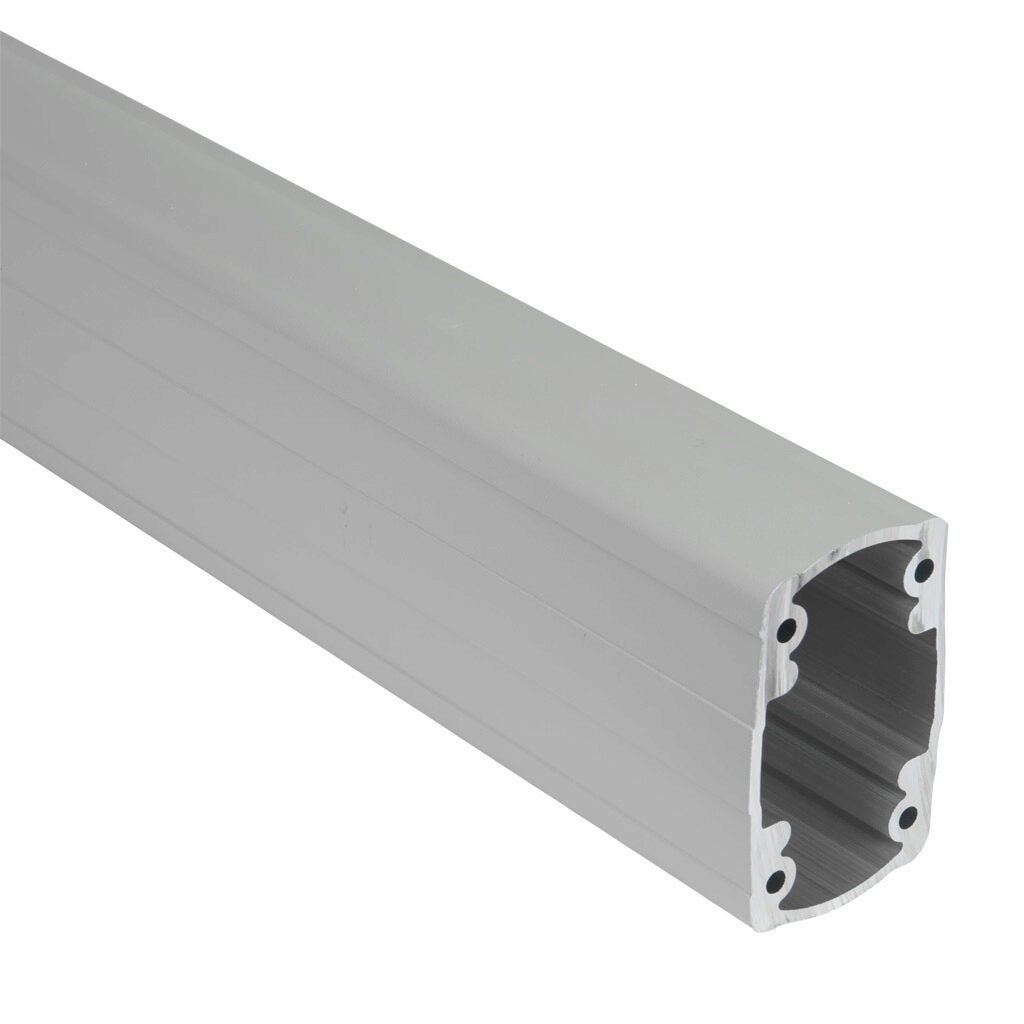

Teknokol TK120 Aluminum Suspension Arm System
The Teknokol heavy-duty TK120 system supports up to a 340 lb load, depending on configuration. The suspension arm profiles can be ordered to full 200cm length or in cut-to-length option that can be ordered to a specific cm length (up to 187cm) to fit the specific application.
Component options include:
- Straight or right-angle wall- and top-mount swivel bases
- Straight wall-mount swing base with bellow
- Fixed base
- 2000mm or cut-to-length suspension arm profiles
- Intermediate swivel joint
- Intermediate swing joint with bellow
- TK120 to TK060 reducer
- Straight or right-angle swivel couplings
- 90 degree elbow
- Fixed coupling
Components starting at
/ cm (up to 187cm)
(TK120CTL)
