HMI panels provide operators with visual displays of data and operations for easy monitoring and control of automated systems. A variety of screen sizes and functionality (touch or non-touch) is available, from low-cost 3-inch C-more Micro panels to advanced CM5 touch panels up to 22 inches.
HMI panels have built-in screens for displaying system data and for interfacing with controllers/PLCs using screen objects.
Numerous screen sizes are available from the compact 3-inch C-more Micro to the robust 22" CM5 HMI.
The CM5 HMI series has the highest performance of all our HMI families and the largest screen size available (22"). With an
amazing 1.6GHz processor in the larger units (10" and above) and 43Mbytes of memory, these HMIs provide much better trending,
extra data storage, faster communication, and improved file types including jpegs (compared to EA9 series).
The legacy C-more EA9 HMI series is still a good choice for your operator interface needs if already installed in a system or
location. This series offers several sizes up to 15 inches with various communication ports.
The C-more Micro is a low-cost touch panel with a 3-inch, 4-inch, or 6-inch screen that displays graphics as well as text (3-inch
non-touch screen versions available); the low price allows customers with tight budgets to take advantage of graphic control panel
features that are often found only in more expensive products.
For part listings and specifications, go to Shop Now

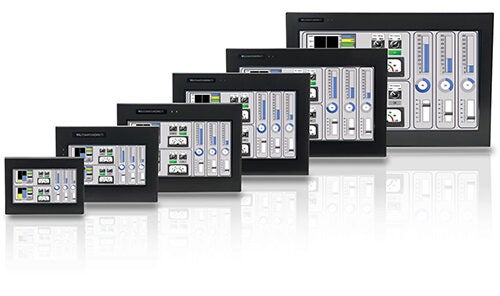

C-more CM5 Series HMI Panels
The C-more CM5 series HMIs provide many hardware options with a variety of screen sizes and communication capabilities.
All CM5 panels have serial and Ethernet ports that support many of the most popular industry protocols, including
EtherNet/IP and Modbus. The 10" and larger models feature an additional Ethernet port, which could be used to share
important data between two separate networks. The included USB ports provide in-an-instant connections for programming
and peripherals like keyboards, USB-to-audio converters, barcode scanners, memory storage, etc. The embedded SD-card
slot provides easy project transfers or up to an additional 2TB of data storage for important log files. CM5 HMIs
also support the secure MQTT (with TLS) protocol which has become the frontrunner for many IIoT/ cloud applications.
4", 7", 10", 12", 15", and 22" widescreen options
16.7M colors and LED backlights
800MHz or 1.6GHz Quad Core CPU
43MB project memory
12 to 24 VDC powered
Built in real-time clock with 30-day backup (no battery required)
NEMA 4/4X (indoor use only), IP65
FREE HMI programming software with powerful design tools and a project simulator
CM5 series HMIs support any EA9 series project (created with V6.73 or later) for an easy panel upgrade

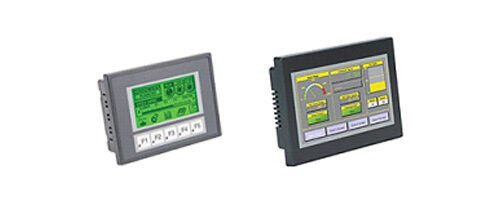

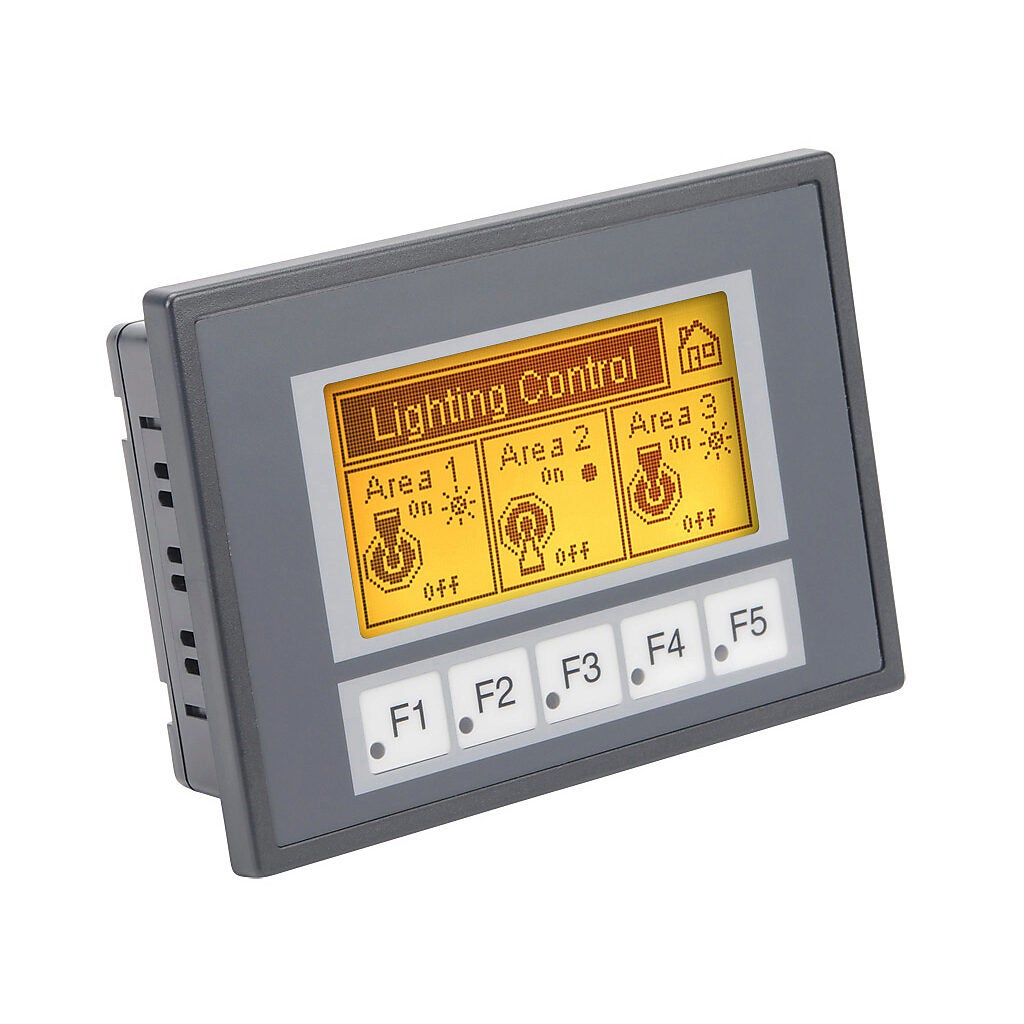

C-more Micro HMIs are packed with features yet priced for the tightest of budgets.
With screens as large as 6 inches, C-more Micro panels easily display text, graphics, and bitmaps to effectively
communicate critical data to the operator.
3", 4", and 6" versions
Built-in Ethernet available on select 3-inch and 4-inch models
Five function keys with LED indicators (except EA3-T4CL)
Key functions can be configured differently for every screen and the indicator LEDs can be programmed for alarms or status indication
5 to 12 software-selectable screen colors on STN panels (3-inch)
32,768 colors with LED backlight on color TFT panels (4-, 6-inch)
3-inch panels require no extra power needed when connecting to AutomationDirect PLCs; 4- and 6-inch models require an external power supply
