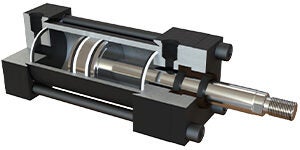

Hydraulic Cylinders
Hydraulic cylinders are used in many industrial applications including shears, clamps, presses, etc. These linear actuators convert the flow of pressurized hydraulic fluid into linear motion/force using a moveable rod embedded in a cylindrical tube. They produce very high forces and have excellent flow control for smooth motion.
Peninsular brand NFPA-style hydraulic cylinders are fabricated to very strict tolerance specifications from the highest quality materials. Many bolt-on options allow for installation flexibility and replacement of existing cylinder installations.
- Available bore sizes: 1-1/2", 2", 2-1/2", 3-1/4", 4"
- Stroke lengths from 1" up to 24"
- 3,000 psi working pressure
- All models are double acting (two ports - one in the head and one in the end cap; directing fluid to the end cap will extend the rod, directing fluid to the head will retract the rod)
- Models with tapped end caps for mounting accessories
- Ductile iron rod bearing
- Mounting options include front flange mount, rear pivot eye mount, rear clevis mount, and rod clevis mount
- Interchangeable with other popular brands of NFPA hydraulic cylinders
- Made in the USA
Starting at
$462.00
(HP16150A1S)
