Pneumatic air filters clean incoming compressed air for shop/plant air supply or air sources for individual machines. Particulate and moisture separation air filters are available in a wide variety of port sizes, drain styles and bowl materials to meet a broad range of pneumatic air supply filtration applications.
Pneumatic Air Filters
Category Selection
Particulate and moisture separation air filters are used for cleaning incoming compressed air sources. Coalescing filters can remove water and oil mist.

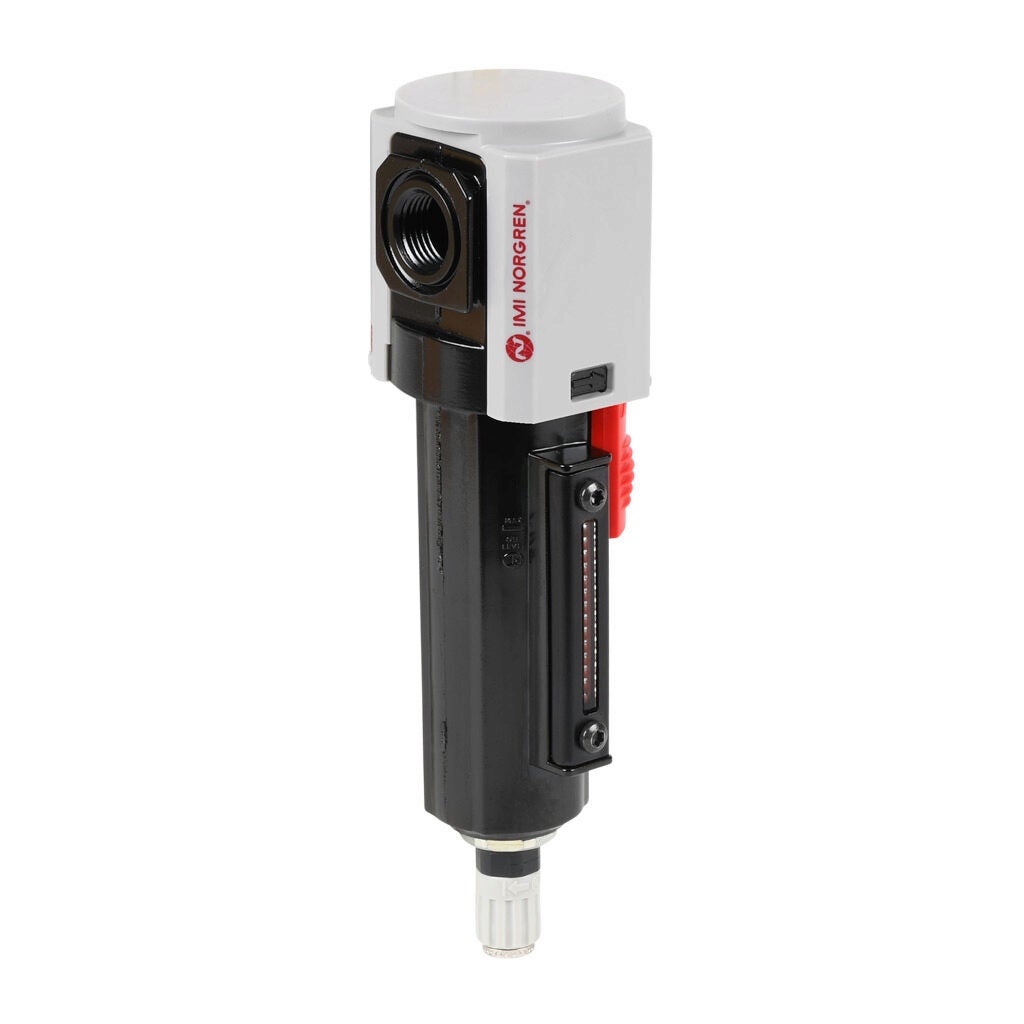

Norgren Excelon Plus 82 and 84 Series Air Filters
Excelon Plus 82 and 84 series general purpose air filters offer 40 micron particulate removal (5 micron sold separately), with water extraction levels greater than 95%. Coalescing filters remove oil down to less than 0.01mg/m3 and have 0.01 micron particulate removal. Carbon filters remove oil vapor (odor) from the compressed air supply (0.003 mg/m3 remaining oil). When used together, the filters deliver air at purity class 0 according to ISO 8573-1, making any compressed air system suitable for use in the most critical industrial applications.
Features
- Die-cast zinc, aluminum or guarded polycarbonate filter bowl
- Unique double-lock bowl design prevents bowl removal while the unit is pressurized, making Excelon Plus the safest filter on the market
- 1/4", 3/8", 1/2" and 3/4" PTF (FNPT - female NPT threaded ports)
- For particulate filters, 40 micron particulate filter (5 micron filter sold separately) are available, providing air purity per ISO 8573-1 class 6&7 for particles and class 8 liquid water
- 0.01 micron particulate removal for coalescing type filters provide oil removal down to 0.01 mg/m3
- Oil vapor (odor) removal down to 0.003 mg/m3 on vapor removal type filters
Starting at
$33.50
(F82G-2AN-QP3)
For part listing and specifications, go to Shop Now
NITRA® Air Filters
NITRA pneumatic air prep AF2 series particulate and moisture separation air filters are available with a wide selection of NPT female port sizes to meet a broad range of pneumatic air line filtration applications. AC series coalescing air filters remove moisture (water) and oil mist from compressed air applications.
The modular design enables easy field assembly for combining with other NITRA air preparation components (using modular assembly brackets which are purchased separately).
Features
- Large gauge and easy quarter-turn twist off feature
- 1/8", 1/4", 3/8", 1/2", 3/4" and 1" NPT female port sizes (depending on style)
- 40 micron replaceable filter element standard; for stricter filtration an optional 5 micron filter element purchased separately is easily customer installable
- 0.3 micron and 0.01 micron replacement air filter elements for coalescing type filters
- All-metal bowls with sight gauge available on all sizes. Polycarbonate or nylon bowls with metal bowl guards available on 2xxx, 3xxx and 4xxx sizes.
- Manual / semi-automatic and automatic drains available
- Mounting bracket provided for stand-alone applications
- Modular design enables easy field assembly for combining with NITRA regulators and lubricators
- 2 year warranty
Accessories
- T, L and U-brackets for assembly and mounting of NITRA air prep components
- 40 micron replacement air filter element
Starting at
$25.50
(AF2-213)
For part listing and specifications, go to Shop Now
