Combination air-prep units offer multiple functions in a single easy-to-install device, typically including a filter, regulator, shutoff, pressure gauge and lubricator. Available devices include Norgren pre-assembled air prep units; NITRA TAP units also offer an electric model that includes a soft start.
Combination Air Prep
Category Selection
Combination air-prep units offer multiple functions in a single easy-to-install device, typically including a filter, regulator, shutoff, pressure gauge and lubricator.

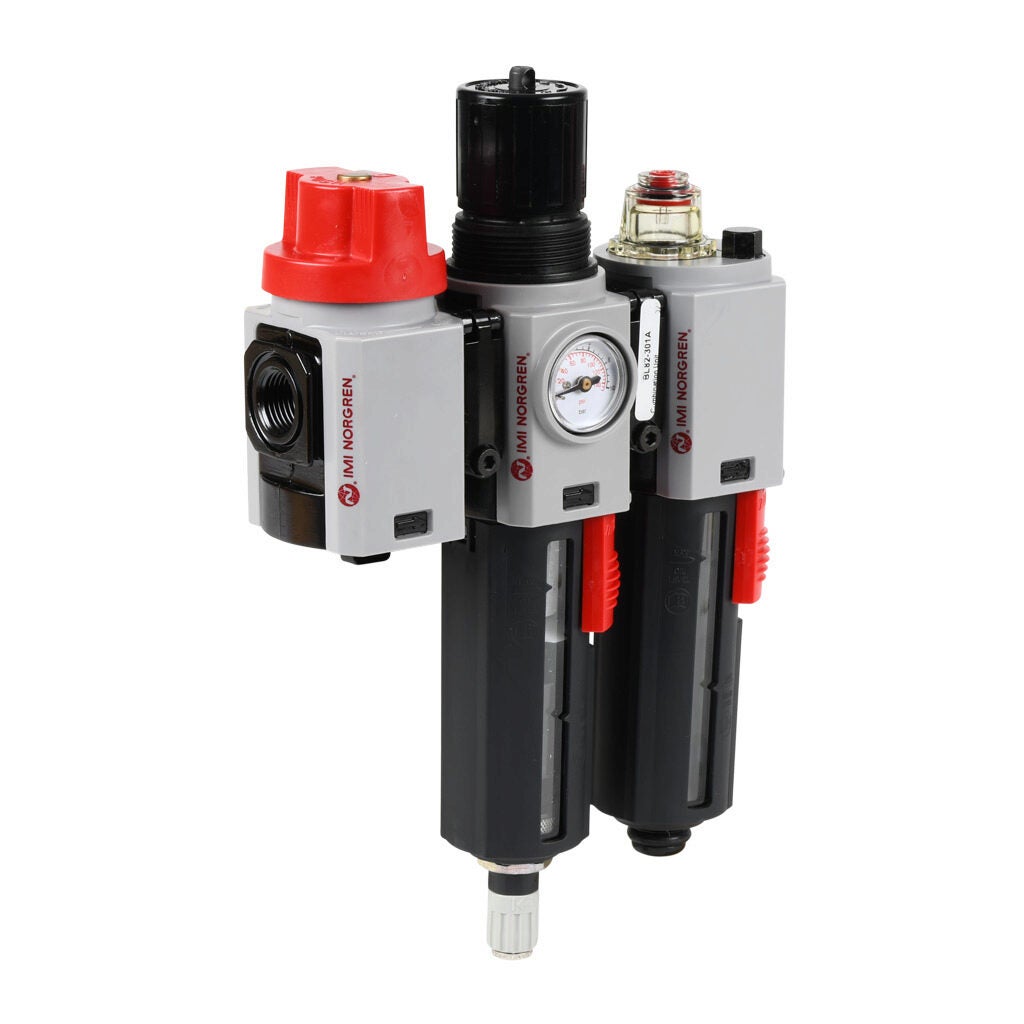

Norgren Excelon Plus 82 and 84 Series Combination Filter-Regulator-Lubricators
The Excelon Plus 82 and 84 series combination air prep units offer exceptional performance, are compact, lightweight, robust and are suitable for most industrial applications. Units come pre-assembled and ready to use. They include a filter, regulator, lubricator and manual shutoff valve.
Features
- Die-cast zinc, aluminum or guarded polycarbonate filter bowl
- 1/4", 3/8", 1/2" and 3/4" PTF (FNPT - female NPT threaded ports)
- 4 to 145 psi (0.28 to 10 bar) pressure range
Starting at
$165.00
(BL82-221A)
For part listing and specifications, go to Shop Now
NITRA Total Air Prep (TAP-3000) Unit
Interchangeable
NITRA Total Air Prep Port Inserts
(1/4" to 1" NPT or G threads)
NITRA Total Air Prep (TAP) Insert

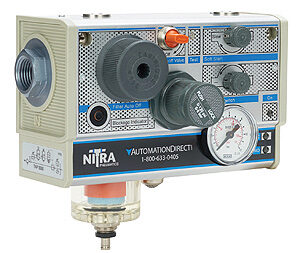

NITRA® Total Air Prep (TAP) Units
The NITRA Total Air Prep (TAP) unit is the latest technology for compressed air preparation. A single, high flow unit contains an automatic drain air filter with clogged filter indicator, relieving regulator, lockable shut-off valve, pressure gauge and air dump. Electric models also have an adjustable electric soft start / shut-off valve and an adjustable pressure switch with indicator LEDs. Interchangeable inlet and outlet port inserts allow the TAP to easily mount to most pipe sizes.
Features
- Two versions of a multi-functional filter-regulator assembly with a common small footprint regardless of piping requirements from 1/4" to 1" NPT or G threads
- 0-120 psi (0-8 bar) operating range
-
20 micron air filter with automatic drain
(optional 5 micron filter element sold separately) - Units ship with 1/2" NPT inlet/outlet ports. Optional NPT or BSPP port inserts in sizes 1/4" thru 1" (sold separately). Any combination of port sizes all in one small footprint!
- Units ship with panel mounting hardware. Optional thru-panel mount hardware sold separately.
- Operating temperature range: -10 to 50°C (-14 to 122°F)
- Ingress protection rating: IP 65 with connector
- Approval: CE
- Available accessories include mounting brackets, replacement parts, and port inserts
NITRA TAP-3000 total air prep unit is
$376.00
NITRA TAP-1000 total air prep unit is
$207.00
For part listing and specifications, go to Shop Now
