Solid core current transformers provide a cost-effective means to measure AC current while providing a 0 to 5 Amp output proportional to the current flow measured. They are easy to install, compact, accurate, and ideal for applications such as motor run status, pump dry run indication, and monitoring of conveyors, processes, heaters, and power.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

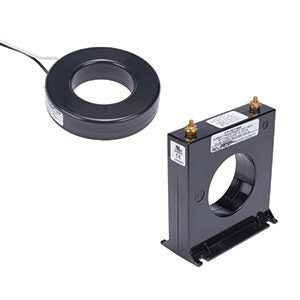

Solid Core AC Current Transformers
AcuAMP CTF Series Solid-Core AC Current Transformers
AcuAMP® Solid Core electrical current transformers are instrumentation grade (commercial class) and offer a compact, cost-effective means of measuring primary current.
Two different window openings and two mounting styles along with numerous secondary ratios are available to meet most applications.
Features
- Low cost
- Panel mount versions available
- Core secured with epoxy resin
- Solid-core case for convenient installation over large wires or bus bars
- 1.56" and 2.50" diameter apertures
- Current primary from 0-50A to 0-1000 A
- Secondary current; 5A
- Multiple connection options for 5A input devices
- Compatible with standard power monitors, data loggers, & panel meters
- Accuracy +/-2% and +/-1%
- cURus, CE approvals
- 2-year warranty
Applications
- Ammeters
- Energy measurement
- Watt/VAR/Watt-hour measurement
(for use with Socomec Diris and Trumeter panel meters) - Current sensing relays
Starting at
$26.00
(CTF-5RL-0050)
