Submersible level sensors provide continuous liquid level measurement by sensing the hydrostatic pressure produced by the height of liquid above the sensor, and providing a 4-20 mA output signal compatible with PLCs, panel meters, data loggers, and other electronic equipment.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Submersible Level Sensors
Category Selection
Submersible level sensors determine liquid height by measuring the pressure exerted on the sensor due to gravity acting on the fluid above it. This hydrostatic sensing method is an established technology noted for its high reliability, low installation cost, and simple engineering. It is one of the most popular methods of liquid level measurement. Submersible level sensors may be used in almost all liquid media, from water to pastes and sludges, providing reliable level measurement in the most challenging conditions.
For part listings and specifications, go to Shop Now
FMX11 Series Submersible Level Sensors
Endress+Hauser Waterpilot FMX11 series submersible level sensors have a slim 22mm diameter stainless steel housing and a diaphragm protection cap, making them ideally suited for freshwater applications.
- Sensing ranges up to 2 bar (66.9 ft WC)
- 4 to 20 mA analog output
- Durable 316 stainless steel construction for reliability and long life
- Shielded cable with atmospheric pressure compensation tube and Teflon filter
- +/-0.35% accuracy for ranges ≥0.4 bar; +/-0.5% accuracy for 0.2 bar range
- IP68 protection rating
- cULus Listed and NSF Certified for drinking water applications
Starting at
$534.00
(FMX11-CA11DS06)

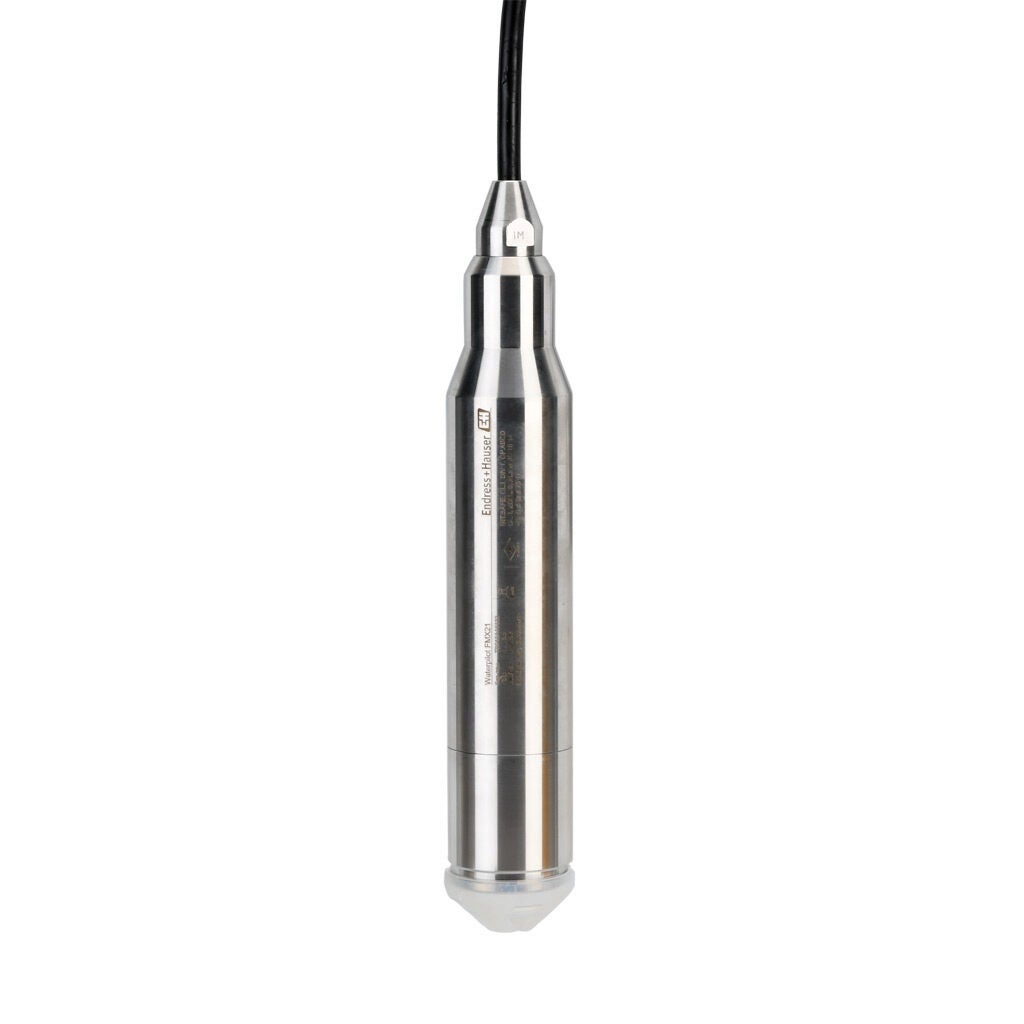

FMX21 Series Submersible Level Sensors
Endress+Hauser Waterpilot FMX21 series hazardous-location rated submersible level sensors are ideally suited for wastewater applications and offer a rugged 42mm diameter stainless steel housing and an easy-to-clean, flush-mounted, process-isolating sensor diaphragm with protection cap.
- Sensing ranges up to 2 bar (66.9 ft WC)
- 4 to 20 mA analog output
- Durable 316 stainless steel construction for reliable, long life in harsh environments
- Shielded cable with atmospheric pressure compensation tube and Teflon filter
- +/-0.2% accuracy
- IP68 protection rating
- FM hazardous location approvals for intrinsically safe applications
Starting at
$1,098.00
(FMX21-FE121DGB10A)
AchieVe ELT Series Submersible Level Transmitters
AchieVe ELT series general-purpose submersible level transmitters are ideal for applications where small size, weight, and low cost are required.
- Full scale sensing ranges from 11.5 to 115.5 ft WC
- 4 to 20 mA output
- Durable 316L stainless steel construction
- 8 to 32 VDC operating voltage
- IP68 protection rating
Starting at
$298.00
(ELT-005-L30)
ProSense GPLT Series Submersible Level Transmitters
ProSense GPLT series submersible level sensors are designed for general-purpose water applications and offer a slim housing in several sensing ranges and cable lengths.
- Full scale sensing ranges from 11.5 to 115.5 ft WC
- 4 to 20 mA output
- Durable 316L stainless steel construction
- Slim 0.825 in. diameter housing
- Integral lightning protection
- 11 to 30 VDC operating voltage
- IP68 protection rating
- Hazardous location rated
Starting at
$393.00
(GPLT-005-L30)
ProSense NFLT Series Submersible Level Transmitters
ProSense NFLT series non-fouling, submersible level sensors feature a rugged Kynar sensing membrane with superior abrasion and puncture resistance. As a result, NFLT sensors can be used in challenging wastewater applications without being damaged by floating particles and small objects.
- Full scale sensing ranges from 11.5 to 69.2 ft WC
- 4 to 20 mA output
- Durable 316L stainless steel construction
- Slim 1.26 in. diameter housing without protective shield
- Built-in lightning protection
- 11 to 30 VDC operating voltage
- IP68 protection rating
- Hazardous location rated
Starting at
$598.00
(NFLT-005-L30)
