Relay Output
BRX PLC Relay Output Modules

Need help selecting BRX PLC components?
Use our configuration tool to configure and order.

BRX PLC relay output modules control ON/OFF devices that operate at higher AC or DC currents. Modules are available with up to 16 points; all snap onto any PLC unit and are autoconfigured in the software. A DC in/relay out combo module is also available.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
PLCs & CPUs
PLCs & CPUs
Pluggable Option Modules (POM)
Pluggable Option Modules (POM)
Remote I/O
Remote I/O
DC I/O
DC I/O
AC I/O
AC I/O
Relay Output
Relay Output
Analog I/O
Analog I/O
Communications & Networking
Communications & Networking
Motion & Specialty Modules
Motion & Specialty Modules
ZIPLink Wiring Solutions
ZIPLink Wiring Solutions
BRX Accessories
BRX Accessories
Shop Now

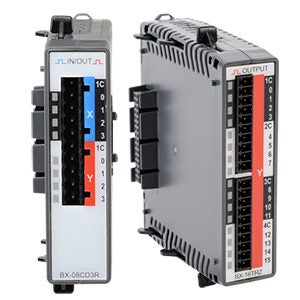

BRX (Stackable Micro Brick) PLCs - Relay Outputs

BRX (Stackable Micro Brick) PLCs - Relay Outputs

For use with higher current control devices, PLC relay output modules function just as an electromechanical control relay would. An external source is supplied to the relay contacts on the module and the PLC CPU will control the opening or closing of these contacts based on the logic coded in the CPU. This way, the PLC controls the device by completing or breaking the control circuit. Since the PLC is only controlling the "coil" and not supplying the output voltage, higher current circuits can be controlled. BRX PLCs with built-in I/O provide up to 16 relay output points. If additional relay outputs are required or to add relay outputs to the M series (no I/O) CPU, several relay I/O expansion modules are offered.

  • Expansion modules easily snap onto the side of any BRX PLC/CPU
  • Relay output modules with 5, 8, 12, or 16 points, in a selection of Form A or Form C contacts
  • Support 12-48 VDC, 100-125 VDC or 24-240 VAC circuits
  • Ratings up to 8A per point for isolated circuits; up to 8A/common for multiple circuits on one common
  • BX-08TRZ and BX-16TRZ relay output modules are designed to prevent leakage current which can inadvertently activate low-current devices

Starting at
$73.00
(BX-05TRS)

For part listings and specifications, go to Shop Now
