LS Electric PLCs (Stackable Micro & Brick)
LS Electric PLCs (Stackable Micro & Brick)

Need help selecting LS Electric XGB PLC components?
Use our configuration tool to configure and order.

The XGB controller, manufactured by global PLC supplier LS Electric, features a robust hardware selection including models with many high-level motion-specific capabilities, as well as a flexible programming software that supports several IEC standard-based languages.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
PLCs
PLCs
Motion Controllers
Motion Controllers
Bus Couplers
Bus Couplers
DC I/O
DC I/O
AC I/O
AC I/O
Relay Output
Relay Output
Analog I/O
Analog I/O
Communications & Networking
Communications & Networking
Motion & Specialty Modules
Motion & Specialty Modules
Wiring Solutions
Wiring Solutions
LS Electric PLC Accessories
LS Electric PLC Accessories
Shop Now

LS Electric PLCs (Stackable Micro & Brick)

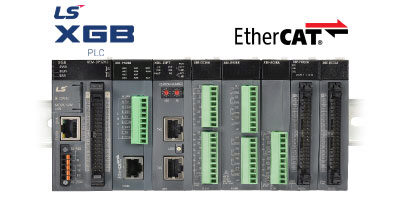

LS Electric System

The LS Electric XGB PLC provides advanced functionality for a low, low cost:

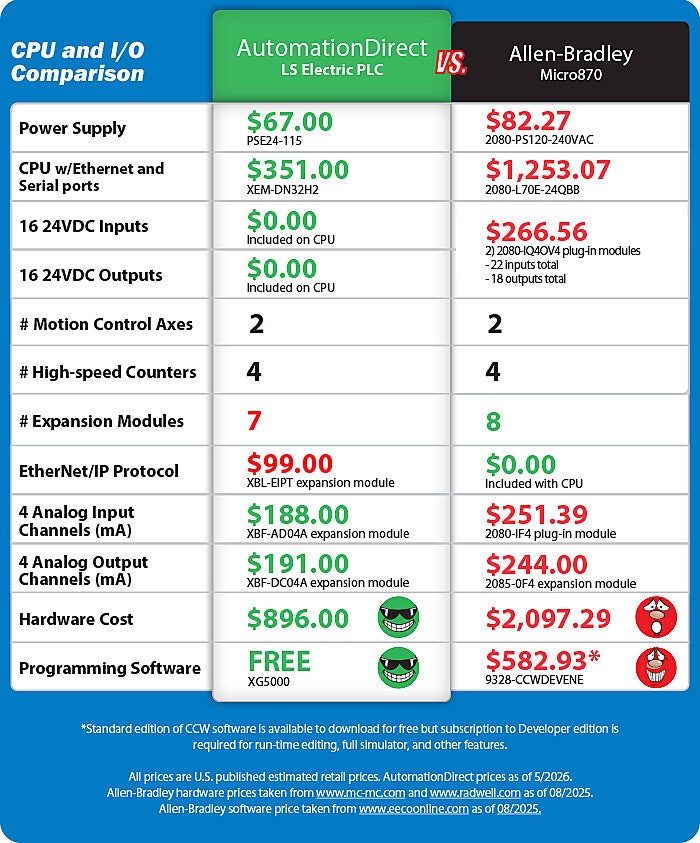

LS Electric XGB Price Comparison Chart

(click to enlarge)

XMC

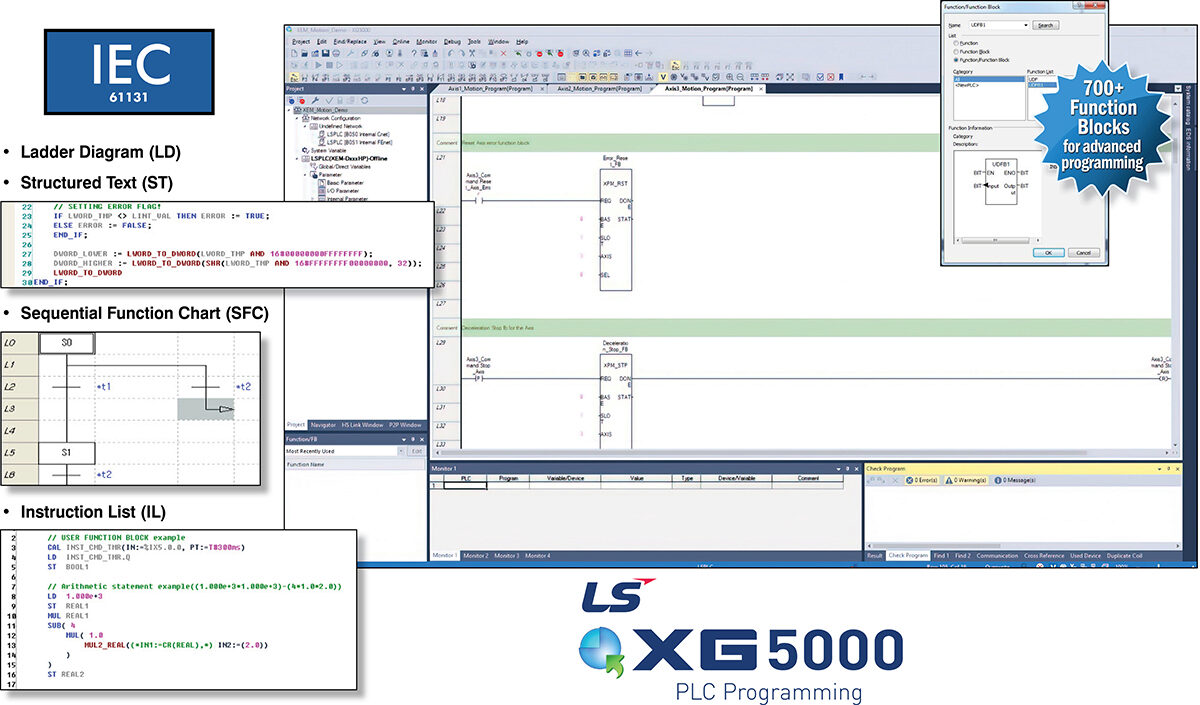

FREE IEC-based programming software can handle a wide range of applications:

Powerful IEC-based software

(click to enlarge)

What do you get when you take a well-established, global PLC manufacturer and combine that with a customer-focused, value-centric online supplier? You get the best of both worlds, otherwise known as the LS Electric XGB PLC from AutomationDirect. The LS Electric controller has many great features including a robust hardware selection, advanced FREE IEC-based programming software, and many high-level motion-specific capabilities. Add to that the customer satisfaction, the amazing $279.00 starting-at price, and the FREE tech support provided by AutomationDirect, and you have a "win-win" control solution!

  • Super-compact design
  • Seven stackable, micro-PLC processors with up to 16 inputs and 16 outputs, I/O types dependent on model
  • Specific inputs can be configured as (up to) 4 high-speed counter inputs and 4 preset inputs
  • 2-axis and 6-axis versions (using specific outputs, depending on model)
  • NPN, PNP and Relay output versions
  • Ethernet, serial, and USB ports
  • Supports up to 7 expansion modules including high-speed counter, EtherCAT, and EtherNet/IP modules
  • EtherCAT expansion modules provide superior motion control precision on up to 16 axes
  • Up to 16 PID loops for reliable process control

The XG5000 programming software is an advanced tool for configuring and programming the LS PLCs. This highly developed software has been fine-tuned over the years to provide a wealth of features and capabilities, including over 700 function blocks with over 70 motion control specific blocks, a convenient project simulator, and numerous data types including IEC standard data types (64 bit available) and 3 dimensional arrays.

This link opens a PDF. LS Electric XGB PLC Overview

This link opens a PDF. LS Electric XGB PLC Software Overview

This link opens a Download. Download the FREE Software

This link opens Help Site. LS Electric XGB Help Site with Tutorial Videos

This link opens a PDF. PLC Statement of Direction

Need a dedicated Motion Controller?

The LS Electric XMC motion controller builds further on the XGB family of hardware. These brick-style controllers have a full complement of built-in I/O, including 2 encoder inputs to enable full-closed-loop control. With 4 CPU models, XMC also offers built-in control of 8 or 16 axes of EtherCAT motion and allows control of up to 32 EtherCAT I/O racks (using the XEL-BSSCT bus coupler and XGB I/O modules). And the XMC uses the same XG5000 programming software to leverage your intellectual investment.

This link opens a PDF. LS Electric XMC Motion Controller Overview

For part listings and specifications, go to Shop Now

Learn More

PLCs

XGB PLCs with embedded I/O can act as standalone controllers or can be expanded with multiple I/O expansion modules. The powerful CPU offers up to 6 axes of motion control (depending on model) using up to 32 built-in I/O points with high-speed capability, and robust communications support.

  • Control up to 6 axes of pulse train motion with built-in high-speed outputs
  • Add EtherCAT option modules (4 or 8 axes each) for up to 16 axes of EtherCAT motion
  • Add up to 256 discrete I/O or 56 analog channels with local I/O modules
  • Expand I/O even further with a bus coupler and XGB remote I/O

Starting at

(XEM-DR14H2)

LEARN MORE
Learn More

Motion Controllers

New!

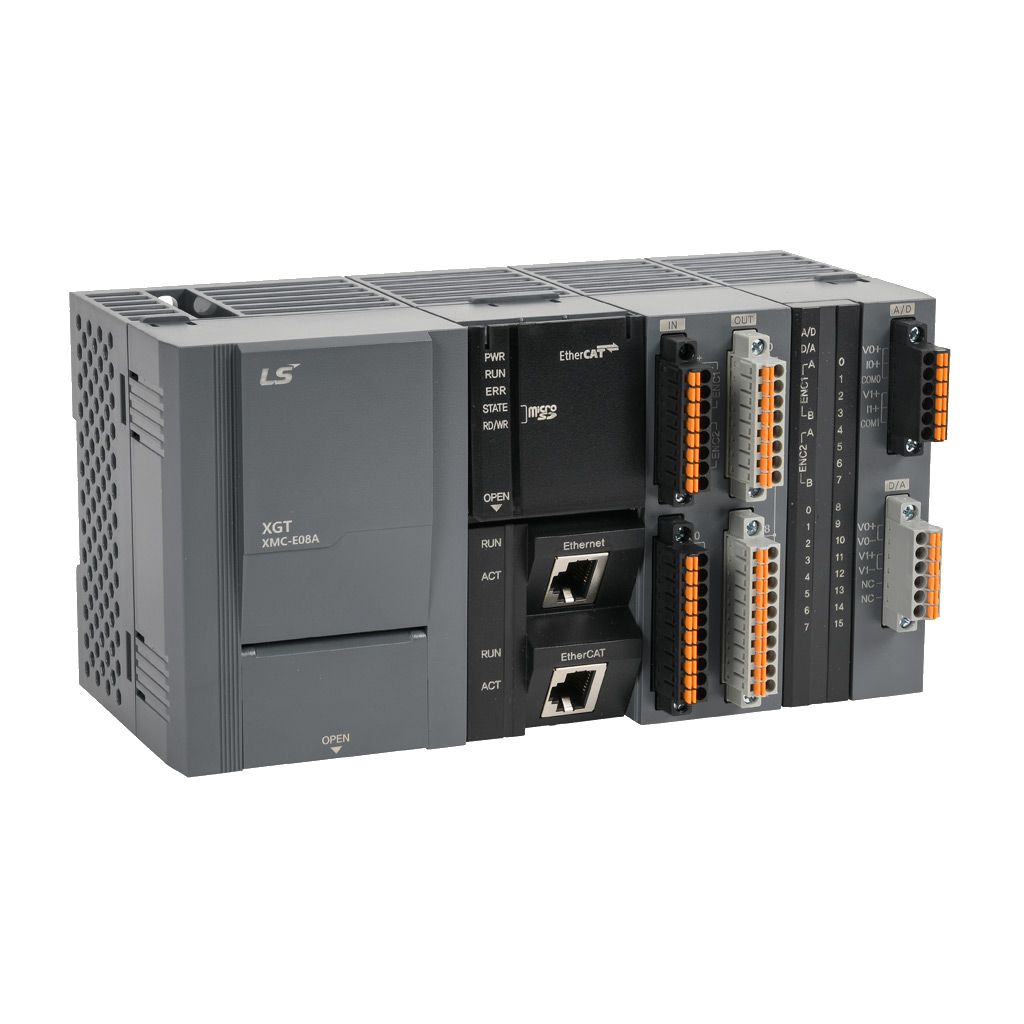

XMC brick style motion controllers with embedded I/O can function as standalone units, providing built-in EtherCAT Master and a generous selection of discrete and analog I/O onboard. These powerful controllers can control up to 8 or 16 axes of EtherCAT motion (depending on model) AND up to 32 EtherCAT remote I/O racks when paired with the XEL-BSSCT bus coupler. They even include two encoder input channels to enable full-closed-loop control.

  • Built-in control of 8 or 16 axes of EtherCAT motion (depending on model)
  • 24 discrete I/O, 4 analog channels, and 2 encoder inputs built in to controller
  • Expand I/O even further with an EtherCAT bus coupler and XGB remote I/O

Starting at

(XMC-E08A)

LEARN MORE
Learn More

Bus Couplers

Newest Additions!

  • XEL-BSSCT EtherCAT bus coupler

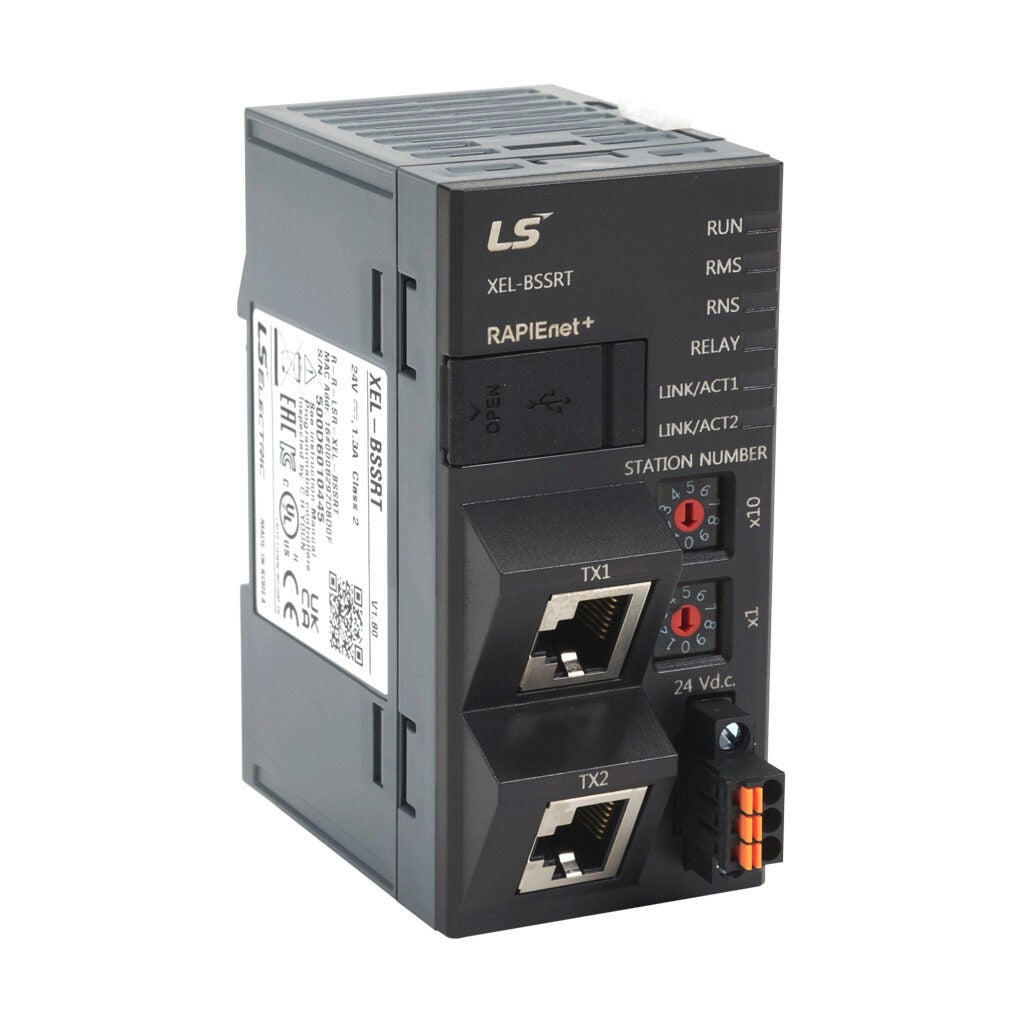

XGB bus couplers are ideal for systems where components are separated by large distances or where an extreme amount of I/O is needed. With these couplers, remote I/O can be located separately from the CPU and linked through EtherNet/IP, Modbus TCP or EtherCAT communication (supported protocols dependent on model chosen).

Priced at

(XEL-BSSCT)

LEARN MORE
Learn More

DC I/O

XGB discrete DC I/O modules monitor ON/OFF signals or control devices that switch DC power (12 or 12-24 VDC), such as discrete sensors, solenoid valves, or lights. High-density input and output modules with up to 32 points and a combination input/output module are available.

Starting at

(XBE-DC16A)

LEARN MORE
Learn More

AC I/O

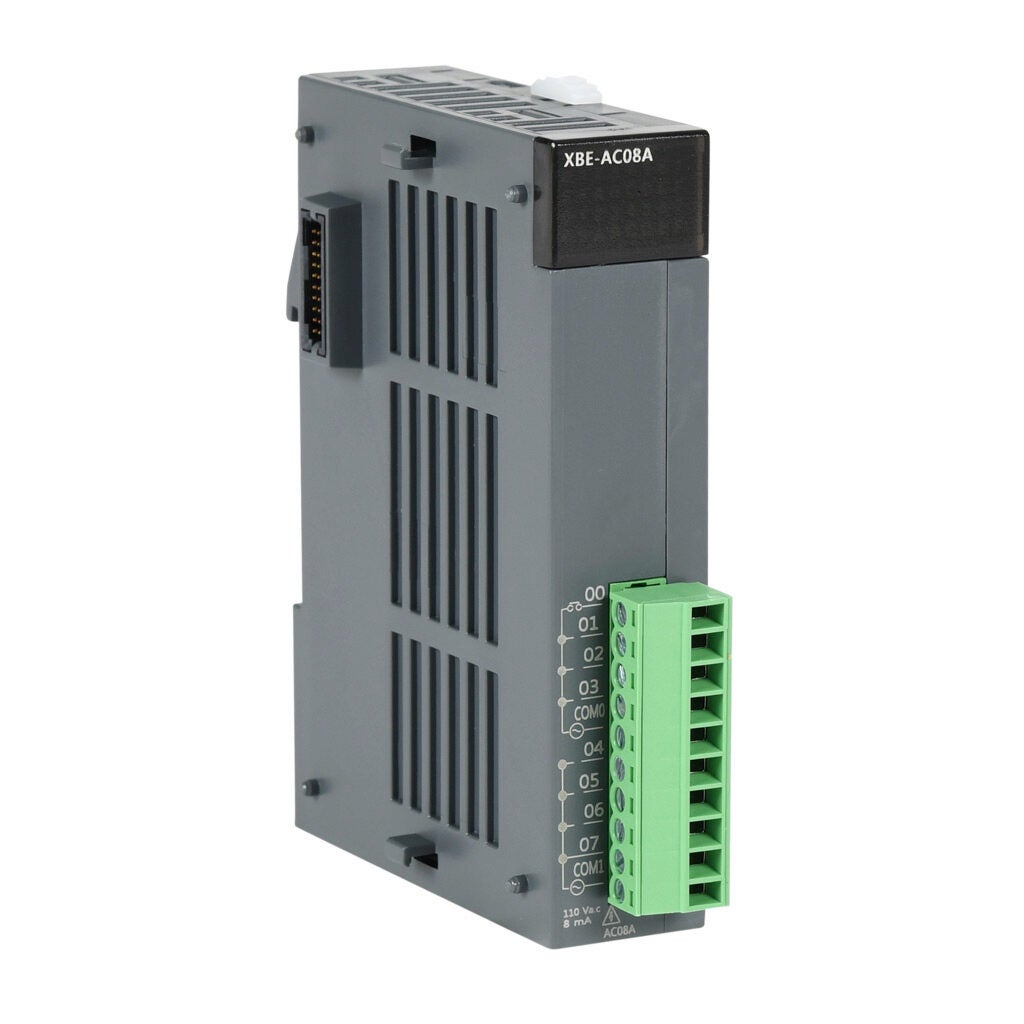

The XGB AC I/O module monitors ON/OFF devices that operate with AC power (120 VAC), such as sensors, pilot devices, and motor contactors.

Priced at

(XBE-AC08A)

LEARN MORE
Learn More

Relay Output

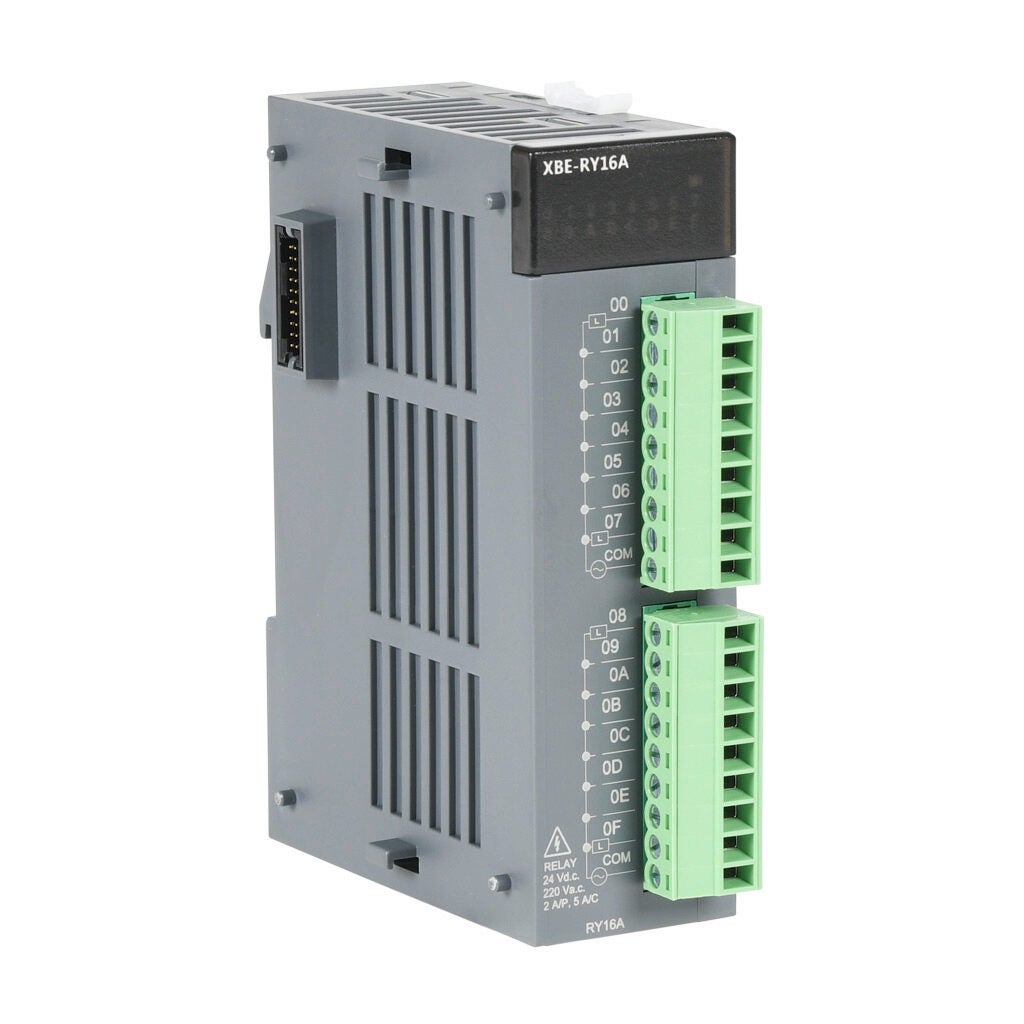

XGB relay modules can operate DC or AC rated devices (125 VDC / 250 VAC). Modules are available with up to 16 Form A (normally open) relay contacts.

Starting at

(XBE-RY08B)

LEARN MORE
Learn More

Analog I/O

XGB analog I/O modules monitor or supply the signals needed for precise control of a process, such as level or pressure, in ranges including 0-20 mA, 4-20 mA, and 0-10 VDC. Current/voltage input, current output, voltage output, and a combination input/output model are available.

Starting at

(XBF-DV04A)

LEARN MORE
Learn More

Communications & Networking

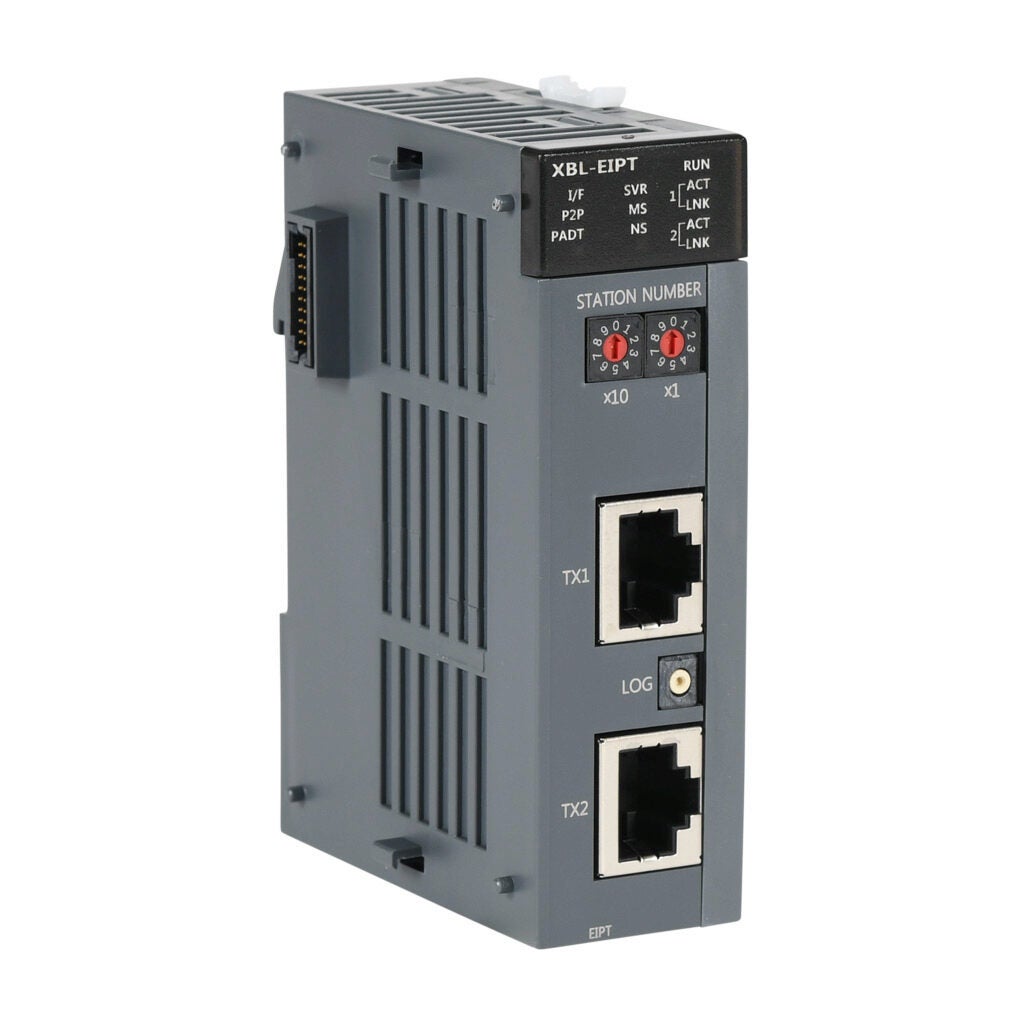

XGB PLCs have several built-in communication ports; optional expansion modules can provide additional protocols including EtherNet/IP.

Priced at

(XBL-EIPT)

LEARN MORE
Learn More

Motion & Specialty Modules

XGB motion and specialty modules perform advanced functions that are out of the realm of standard I/O.

  • High-speed counter input expansion modules offer additional high-speed capability with up to 500 kHz switching frequency

  • EtherCAT positioning modules provide extremely accurate motion control using Ethernet transmission media

Starting at

(XBF-HO02A)

LEARN MORE
Learn More

Wiring Solutions

Connections for the 32-point expansion modules and 32-point PLC units are made using specially designed Smart Link terminal blocks and connection cables. These cables and connectors provide readily accessible terminals for field I/O signals, organized wireways, and easily traceable I/O connections.

Starting at

(XTB-40H)

LEARN MORE
Learn More

LS Electric PLC Accessories

Accessories for the LS Electric PLCs and motion controllers include a variety of replacement terminal blocks. XG5000 software features many of the IEC programming languages along with motion axis and servo drive setup/testing applications. Software can be downloaded for free or purchased on a USB drive.

Starting at

(XGB-CON-3PX)

LEARN MORE

Shop Now
