Productivity1000® Stackable Micro PLC - PLC Units

New!

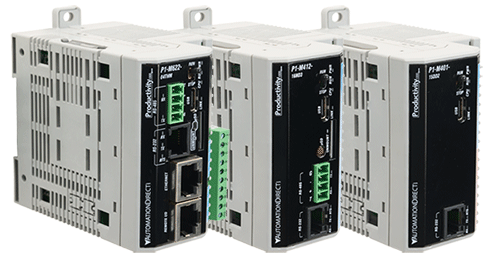

Productivity1000 PLC units (Mini PLCs) contain a microprocessor, memory storage, I/O terminations, and other integrated circuits used to execute the control program, store logic data, and communicate to external devices. The microprocessor follows a repeated sequence of operations that perform those functions and other internal processes. Below is an example of a typical PLC scan.

Click for more details

The Productivity1000 Mini PLCs offer even more hardware options for the Productivity PLC family. As the first-ever standalone model for the Productivity family, the Mini PLCs combine the CPU and I/O into a single unit. Other Productivity series require you to buy the I/O and CPU separately, but with the Mini series, you get a choice of models with embedded discrete or analog/temperature I/O. This design provides significant cost savings, especially for smaller systems, and can be expanded if needed for larger systems. 17 models are available to choose from with different communication options, I/O types and capacities, and available memory storage.

• Plug-and-play USB programming
• Tag database and program documentation storage in CPU (program pre-loaded on PC not necessary)
• Supports up to five built-in communications ports simultaneously
• High-speed Ethernet port for HMI and peer-to-peer or business system networking (no Ethernet communications module needed) (P1-M412/M622 series only)
• Support for Modbus, EtherNet/IP, and MQTTS connections (depending on model)
• Up to two serial ports for peripheral device interface or controller networking
• Micro SD data logging with select PLCs
• Remote I/O port (P1-M622 series only) for up to (16) GS series drive connections, (1) PS-AMC motion controller, or hundreds of additional remote I/O points using the P1-RX remote expansion module and/or the Protos X field I/O system
