RFID coded tongue interlock safety switches fit sliding, hinged or lift-off machine guards and provide positively operated switching contacts and superior tamper-proof protection. With these models, both the solenoid must be energized and the RFID coding must match to release the tongue key.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

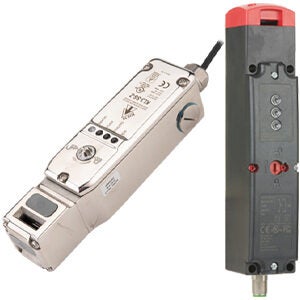

Solenoid Locking RFID Tongue Interlock Safety Switches
IDEM and Comepi solenoid locking RFID tongue interlock safety switches provide robust position detection for moving guards and will remain locked until the solenoid voltage is applied to the switch. These switches can be used in conjunction with delay timers to provide the solenoid energize signal only after a pre-determined amount of time has passed.
- Uniquely coded RFID interlock ensures safety mechanism cannot be easily bypassed
- Holding force of 1200N, 2000N, or 3000N keeps guard doors closed until hazards have been removed
- 24 VDC solenoid is energized to unlock
- Unique rotating head offers both front and end actuation for IDEM models
- Plastic, die cast aluminum, or 316 stainless-steel models
- Choice of standard or flexible actuators
- Two OSSD outputs or two safety contacts
- For use as directed by ISO14119 and EN ISO12100
- IP65 or IP67 enclosure rating (IP69K on all KL3-Z models)
- Agency Approvals: cULus, CE
Starting at
$413.00
(AFEPMKR1FR3-024E)
For part listings and specifications, go to Shop Now
Warning: Machine safety products sold by AutomationDirect are safety components only.
The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. AutomationDirect cannot certify that our products used solely or in conjunction with other AutomationDirect or other vendors products will assure safety for any application.
Any person using or applying any products sold by AutomationDirect is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the and suitability of the product for their respective application.
AutomationDirect does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
