Non-contact safety switches are devices that use RFID or magnets to monitor machine guards, doors, gates, windows, jaws or other machinery, isolating power from the hazard to protect both people and machines. Standalone and locking models are available.
Non-contact safety switches are a great choice for monitoring doors, guards, or other mechanisms on machinery that are used to isolate hazardous areas. They use RFID technology or magnets to monitor position and can isolate power from the hazard if the gate, guard, or door is opened. Unlike interlock safety switches that require physical contact between switch components, non-contact switches reduce wear from frequent mechanical contact and allow for a slight misalignment between the switch and actuator.
IDEM safety switches are high-quality, rugged devices that ensure reliable protection.
For part listings and specifications, go to Shop Now
RFID coded non-contact safety switches use RFID communication between switch and actuator to provide the most tamper-proof protection using both master and unique coded actuators.
Coded non-contact magnetic safety switches use coded magnets to close the circuits, offering more protection than standard magnetic safety switches.
Non-contact magnetic safety switches are low-cost interlocking devices that are designed to protect both people and machines. These non-coded switches utilize a magnetic field between the switch and actuator to open/close the safety circuit(s).

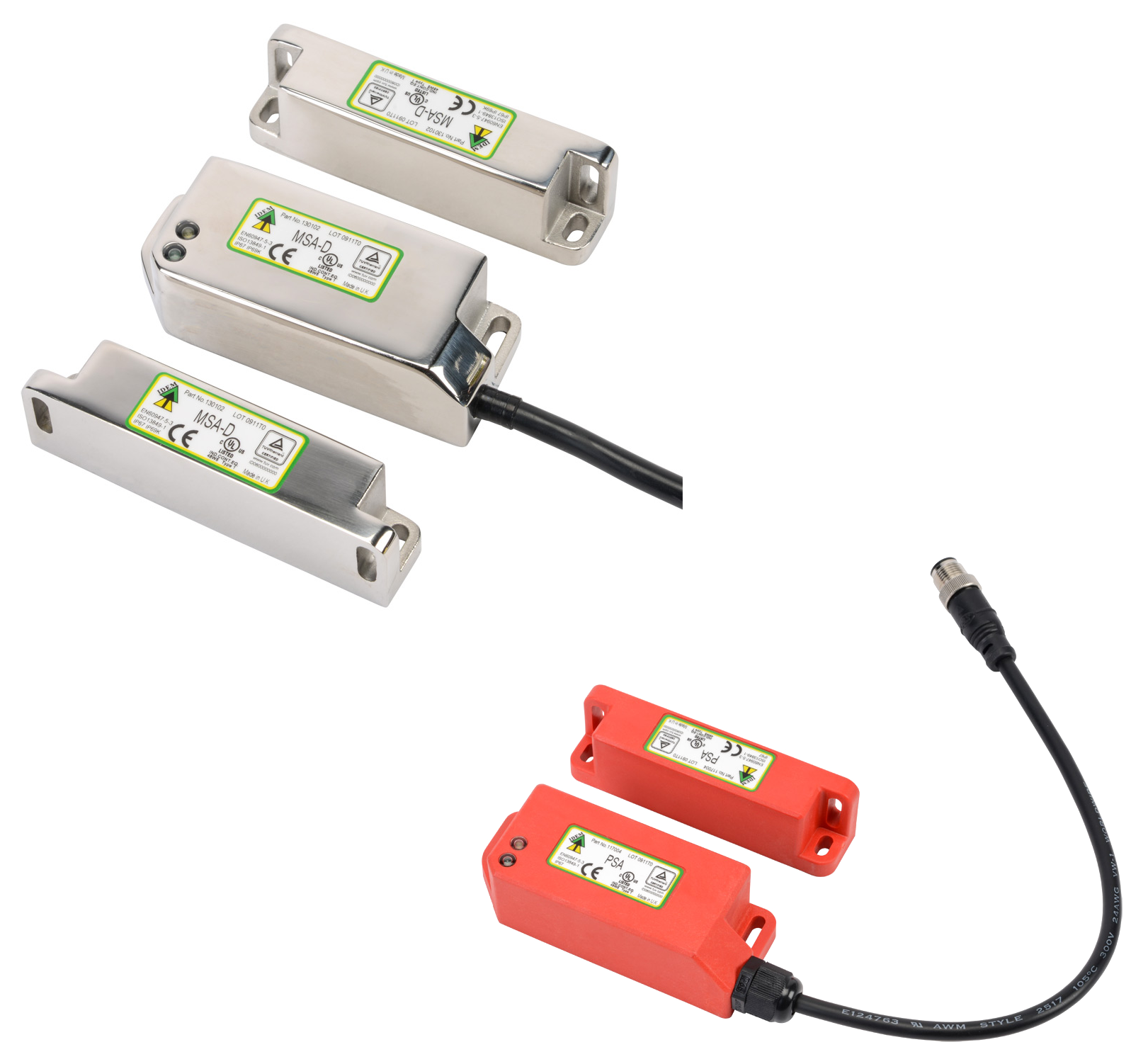

Stand-alone non-contact magnetic coded switches can monitor opening/closing of machine guards, doors or other machinery access panels. The differences from a standard non-contact safety switch are that these stand-alone models use force guided contacts, contain an internal monitoring system, and do not require an external safety relay. Coding offers a degree of tamper resistance.
These safety switches combine magnetic locking and radio-frequency identification (RFID) technology to provide non-contact operation and high anti-tamper coding. In addition, an electromagnet is used to lock machine guards.
Warning: Machine safety products sold by AutomationDirect are safety components only.
The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. AutomationDirect cannot certify that our products used solely or in conjunction with other AutomationDirect or other vendors products will assure safety for any application.
Any person using or applying any products sold by AutomationDirect is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.
AutomationDirect does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
