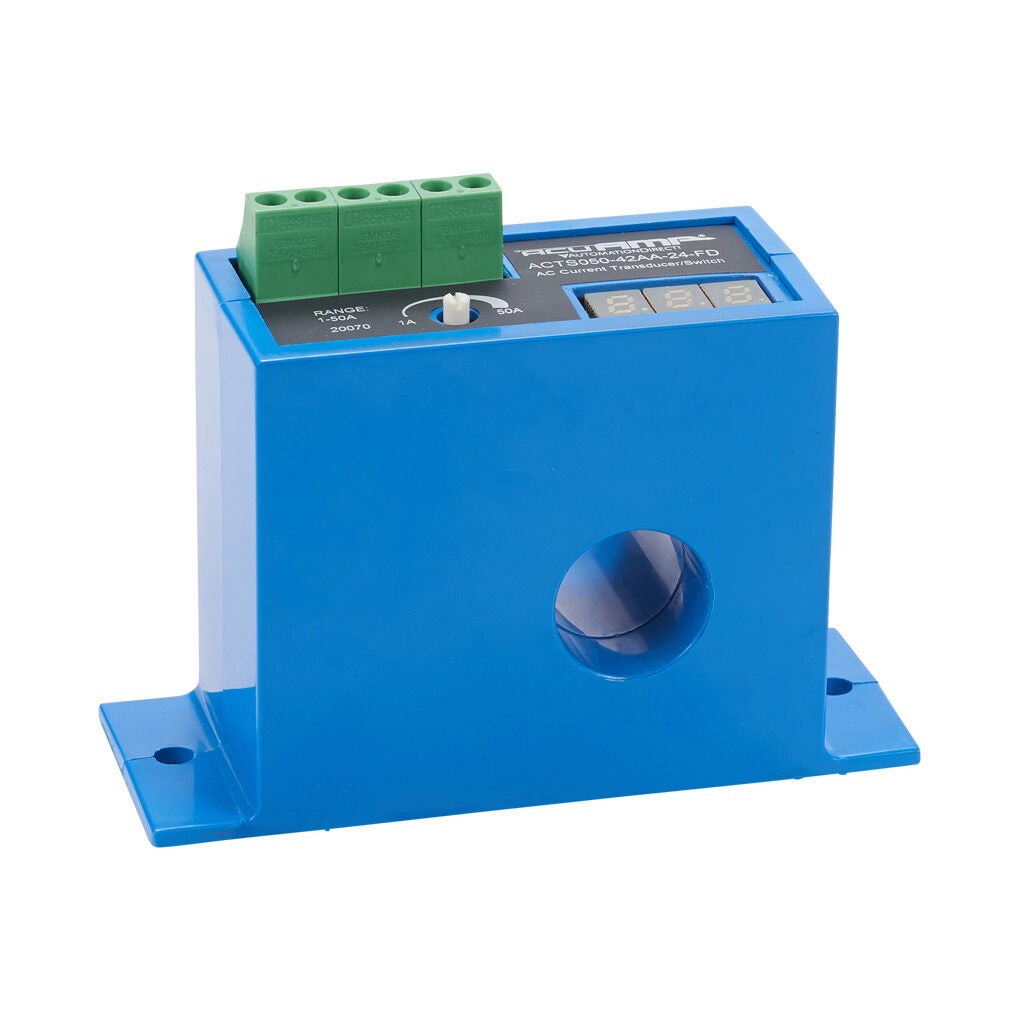

AcuAMP ACTS series AC current transducer/switch combo units combine a current transformer and signal conditioner in one unit, with both an analog output signal for monitoring and a solid-state output for a limit alarm. These fixed-core units are available with adjustable trip points up to 200 Amps, and include a digital setpoint display.
The ACTS Series AC Current Sensors combine a current operated switch and transducer into a single package. In addition to an analog output over the sensed current range, the sensor also provides a solid-state switched output which will change state when the current exceeds an adjustable setpoint or falls below the normal running current. The ACTS features a digital display that gives visual indication of the switch setpoint allowing for a much easier and precise adjustment. The display flashes on and off when current has exceeded the setpoint. This combination switch and transducer unit results in reduced installation time, plus the option to have local control of a starter coil while also sending the analog signal back to a controller housed in a separate cabinet.
ACTS series current transducer/switches are
