ProSense® Thermal Flow Sensors

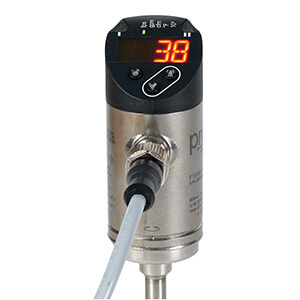

FTS Series Liquid / Air Thermal Flow Sensors

ProSense FTS series thermal flow sensors offer a very cost-effective solution for monitoring water, glycol solutions, or air flow for applications where high accuracy is not required. With no moving parts, thermal flow sensors are a reliable alternative to mechanical flow switches and other flow sensing technologies.

• Using the pushbuttons and display the FTS series can be easily set up to measure flow velocity in feet per second (fps) or by entering the internal pipe diameter volumetric flow rate can be measured in gallons per minute (gpm) or cubic feet per minute (cfm).
• Available with probe lengths of either 100 mm or 200 mm the FTS can be used in pipes up to 16 inches in internal diameter.
• Flow velocity measurement in larger pipe sizes or other shapes such as rectangular ducts is also possible using feet per second (fps) operating mode.

Features

• Cost effective solution for flow switch or flow transmitter measurement where high accuracy is not required
• Optimized for flow measurement of water, glycol solutions or air
• Volumetric flow rate measurement in pipe sizes up to 16 inches ID
• Measure fluid/air temperature in addition to flow

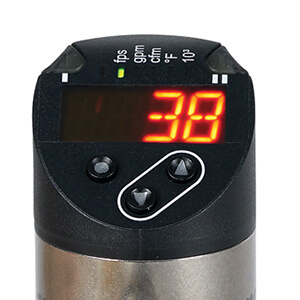

• 4-digit, two color alphanumeric display with pushbutton setup
• 100 mm or 200 mm probe length
• Two outputs selectable for switch, frequency or analog signals (FTS-1001 series)
• Two analog output signals for flow and temperature (FTS-1002 series)
• 4-pin M12 quick disconnect electrical connection
• 5-year warranty

FTS1001 Thermal Flow Sensors Overview

FTS1002 Thermal Flow Sensors Overview
