Temperature Sensors & Transmitters Accessories

Accessories for Optris infrared pyrometers include:

• Close-focus lens for smaller objects at closer distances
• Right angle mirror for measurements with a 90° angle to the sensor axis
• Air purge collars to keep the pyrometer lens clean
• Configuration cable (for use with IRmobile Android App and Windows software)
• Fixed and swivel mounting brackets
• Mounting bolts

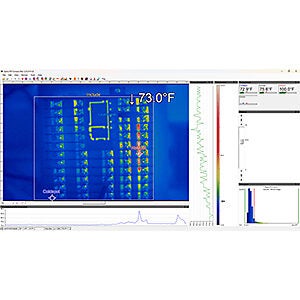

Optris PIX Connect is free software for configuring Xi 410 LT infrared cameras and managing radiometric thermal data. It provides integrated tools for system setup, real‑time process monitoring, and automated operation, including remote access through its built‑in web server. Its features include:

• Live thermal imaging with customizable palettes, temperature scaling, and desktop or touchscreen display modes
• Flexible measurement areas with independent temperature readings for hot‑spot, cold‑spot, and process‑variation detection
• Trend diagrams and histograms for evaluating changes and distribution across the thermal image
• Radiometric video and snapshot recording with full temperature data for documentation and review
• Configuration for emissivity, ambient compensation, measurement ranges, and motorized focus
• Multi-camera configuration and monitoring from a single interface
• Autonomous operation without a continuously connected PC

 OPTRIS-PIX-CONNECT-SW

The Optris discrete/analog process interface module provides the Xi 410 LT series infrared thermal cameras with analog, digital, and relay I/O for direct connection to PLCs, DCS systems, and other industrial equipment. The module supports process monitoring, alarms, and automation applications, while an integrated fail-safe relay continuously monitors system status and signals detected faults.

• Three analog and three relay alarm outputs provide flexible signal options for transmitting temperature data and alarm conditions
• Two analog inputs and one discrete input support connection to external control signals and process devices
• Up to three modules can be cascaded with a single camera for additional I/O capacity.
• IP65 (NEMA 4) rated enclosure provides protection against dust and water ingress for reliable operation in industrial environments

The Optris Modbus TCP communications module enables the Xi 410 LT thermal camera to integrate seamlessly with PLCs, HMIs, SCADA systems, and other Modbus TCP-compatible devices over standard industrial Ethernet. By providing direct access to temperature measurement data, the module simplifies system integration and supports real-time monitoring and process control.

• RJ45 Ethernet communication with an IP67-rated 4-pin M12 D-coded connector provides a rugged network connection suited for industrial environments
• Fixed Modbus register mapping simplifies PLC, HMI, and SCADA configuration
• Includes the network interface board, software and documentation USB drive, M12 connector, and RJ45 extension cable for convenient installation
• Industrial-grade construction designed for continuous operation alongside Xi 410 LT systems

Additional accessories for Optris infrared thermal cameras include:

• Air purge assembly to keep the lens clean
• 2-axis mounting bracket for flexible pan and tilt positioning
• Emissivity labels to provide a known emissivity reference for reflective or low-emissivity surfaces
• 4-pin M9 quick-disconnect to RJ45 shielded industrial Ethernet cables

A wide variety of accessory hardware includes:

• Replacement probes
• Compression mounting fittings
• Mounting hardware
• Thermocouple, RTD, and thermistor connectors
• Plugs and jacks
• Pipe clamp adapters
• Quick-disconnect and patch cables
