Manually operated valves are ideal for operator-controlled applications. Full-size manual valves are available in handle, lever, knob, and foot pedal styles, with select models available in both spring return or detented acting configurations.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
General Purpose Foot & Manual Valves
General purpose manual valves provide a variety of options for manually controlled operations. Foot pedals are an ideal choice when hands-free control is required. 90-degree, axial, push-pull, and rotary lever operated valves are also available and can be installed wherever operator control is needed.
For part listing and specifications, go to Shop Now

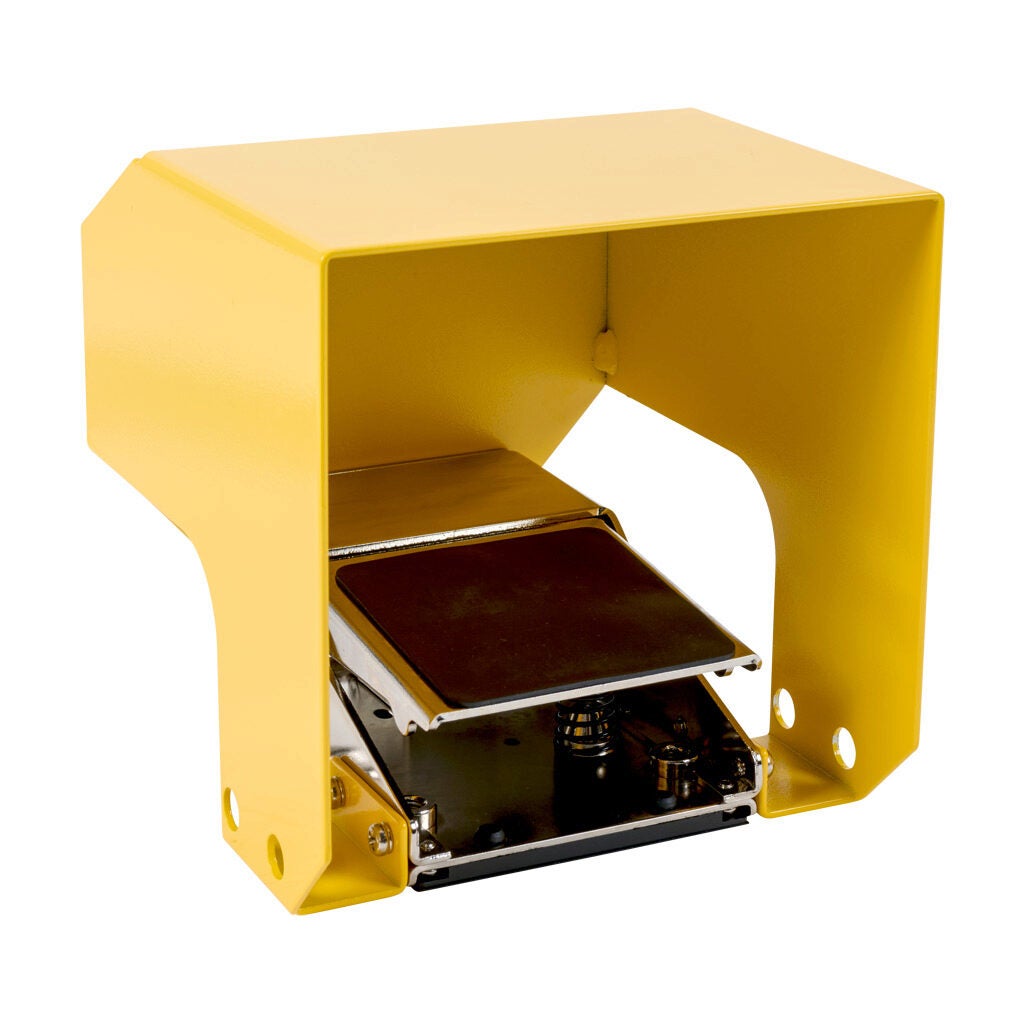

Air Foot Pedal Valves
Newest Additions!
- Mindman pneumatic foot pedal valves
-
Hands‑free foot‑pedal actuation improves operator safety and efficiency in repetitive or two‑hand tasks
- Momentary or locking foot pedal options to deliver superior application flexibility
- Select models include guarding to prevent accidental actuation
- 3‑port (3‑way) and 4-port (4-way) spool valve design options
- Operating pressure up to 102 psi
Starting at
(107023003044001)
Hand Lever and Push-Pull Valves
Newest Additions!
- Mindman hand lever and push-pull valves
Hand lever and push-pull manual directional valves provide heavy-duty, reliable, non‑electrical pneumatic control with multiple actuation styles, wide flow capability, and rugged construction suited for demanding industrial applications.
- Available with hand‑lever or push‑pull actuators to suit different operator preferences and control styles
- Body‑ported spool designs offered in both 3‑way and 4‑way configurations for versatile circuit control
- Broad FNPT port range from 1/8" up to 1/2" accommodates compact systems through higher‑flow applications
- Select models deliver maximum operating pressure up to 174 psi, supporting more demanding pneumatic applications than light‑duty manual valves
- Through‑panel mounting options help create clean, accessible operator interfaces
Starting at
(7010001200U)

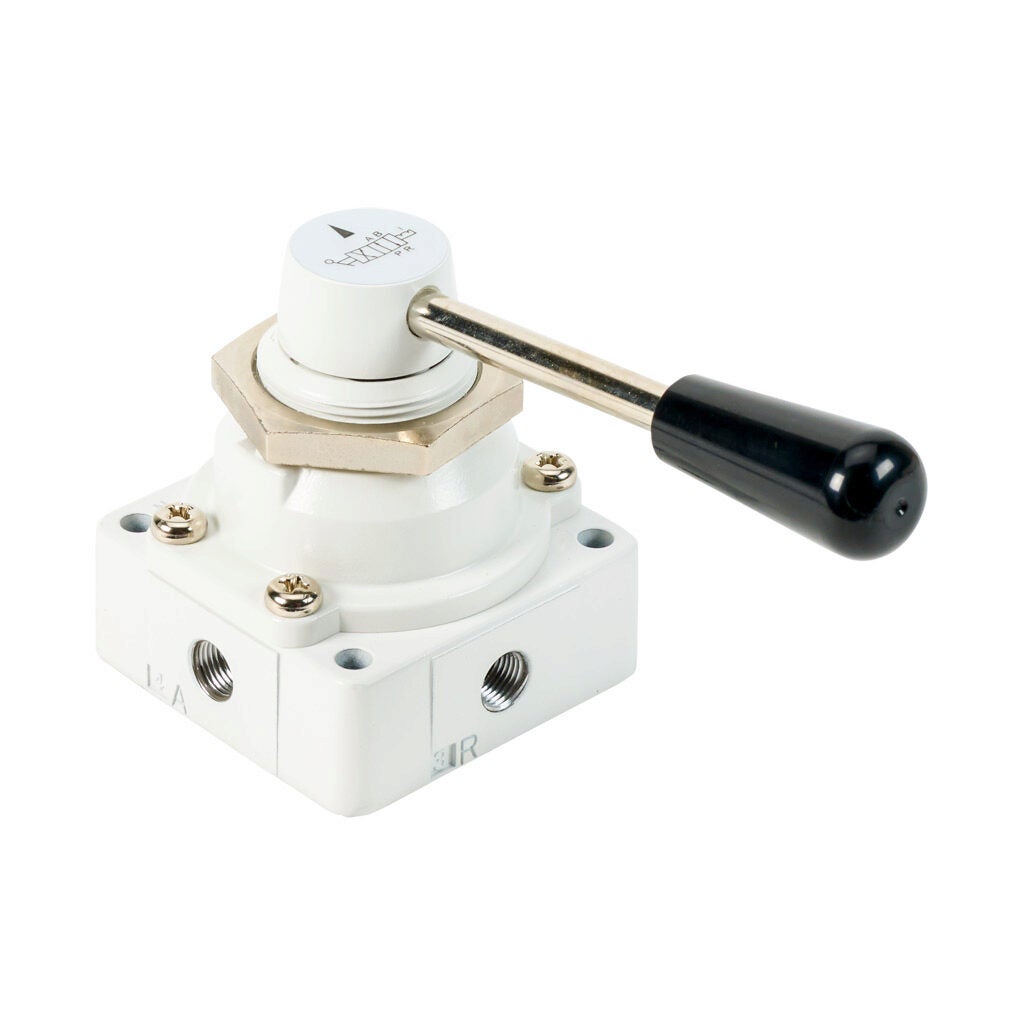

Rotary Style Hand Lever Valves
Newest Additions!
- Mindman manual rotary valves
- 4-port, 4-way configuration for versatile routing
- Detented acting valves with 2-position, 3-position center closed, and 3-position center exhaust valve configuration options
- Port sizes available from 1/8" to 3/4" FNPT provide broad selection for system integration
- Maximum operating pressure of 145 psi
-
Through‑panel mounting options help create clean, accessible operator interfaces
Starting at
(106220200034002)

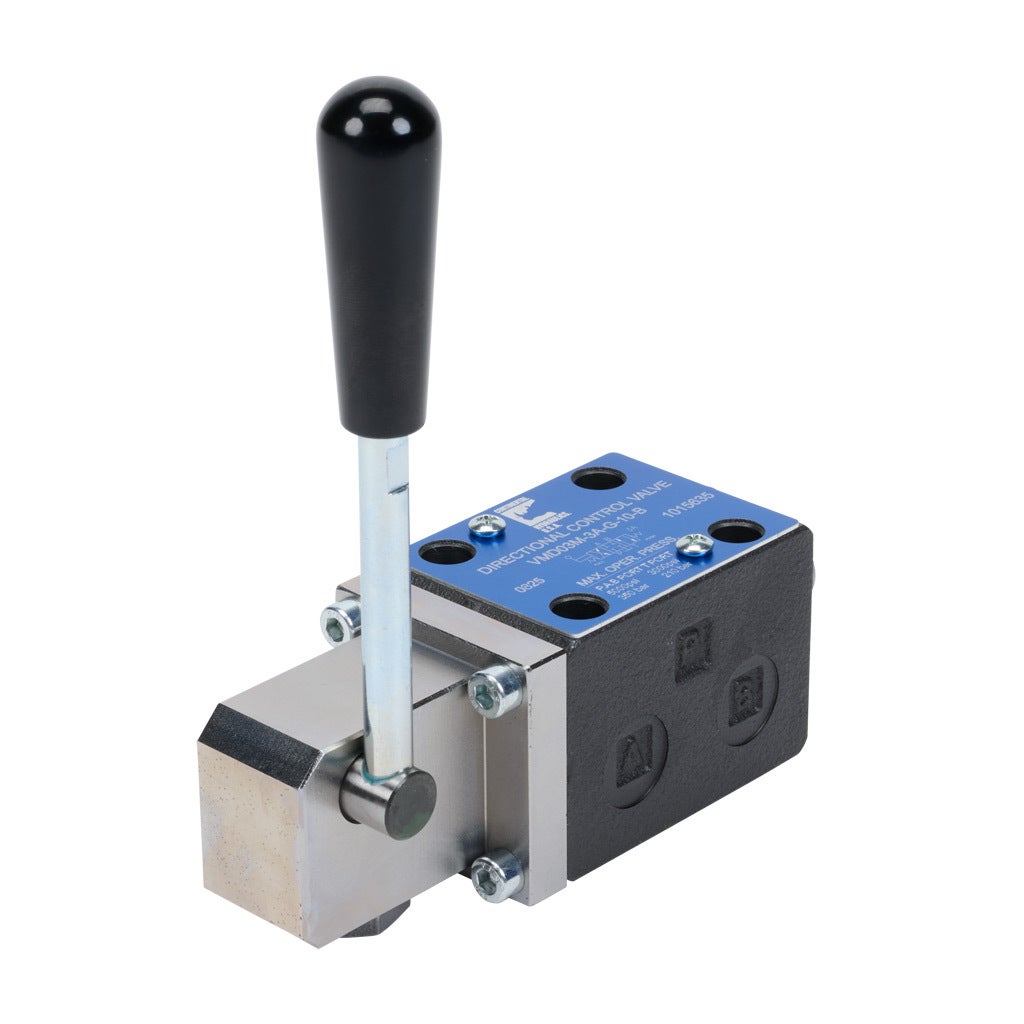

Hydraulic Manual Valves
New!
Manual D03 directional valves provide dependable, no‑power control for setup, maintenance, and straightforward machine functions while maintaining a common footprint with D03 solenoid valves.
- NFPA D03 / ISO 4401‑03 mounting keeps layouts consistent with D03 solenoid systems and simplifies standardization
- 4‑way, 3‑position manual control supports common cylinder and motor directional functions
- Hand‑lever actuation with spring return to center provides predictable neutral positioning
- Center‑condition options, including float center availability, allow tuning of actuator behavior
in neutral - High‑pressure ratings up to 5000 psi support demanding industrial circuits
- Well suited as a commissioning valve, manual fallback, or maintenance‑friendly control point where electrical actuation is not required
Priced at
(AD03017)
