Manual process ball valves are simple ON/OFF valves commonly used in process piping applications. Valves are available in micro, mini, and standard formats with a variety of handles, including T-handles, rotary levers, lockable rotary levers, and more.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Manual Process Ball Valves
For part listing and specifications, go to Shop Now
Puri-T292 Lead-Free Ball Valves
New!
-
CSA certified to NSF/ANSI 61 & 372 for potable‑water safety, meeting U.S. lead‑free requirements
- Rated to 600 psi for general use, providing strong overhead for a wide range of system pressures
-
Hot‑forged lead‑free brass construction ensures durability across potable water, air, gas, and coolant media
-
Adjustable PTFE packing gland enables in‑field tightening for reliable sealing performance over time
-
1/4" to 1‑1/2" NPT port range to support residential, commercial, and industrial fluid applications
-
Glass‑filled PTFE seats enhance stability under temperature variation up to 350 °F and continuous cycling
-
Lifetime warranty
Starting at
(T292B41)

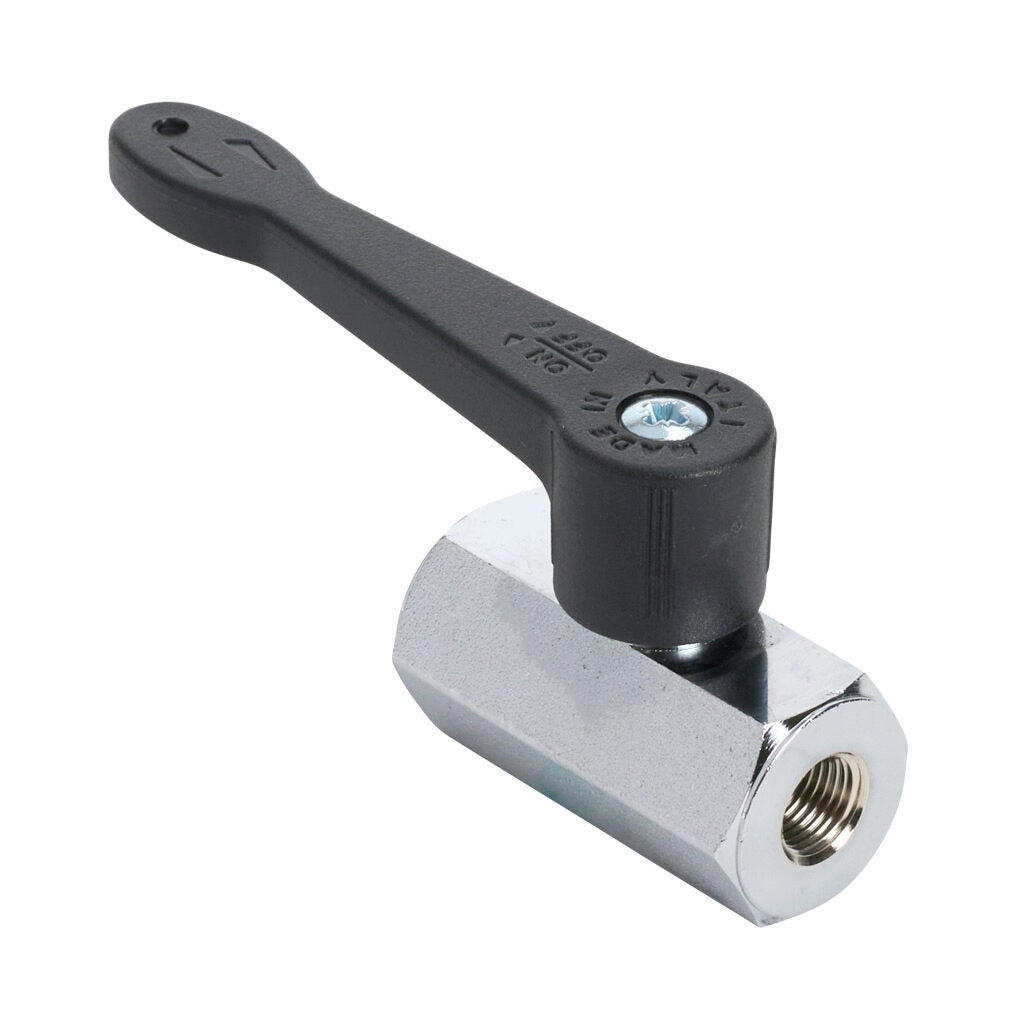

S34 Manual Mini Ball Valves
New!
-
Supports 200 psi cold‑working pressure, offering reliable flow isolation for a wide range of air, gas, coolant, and water applications
-
Compact size integrates easily into dense panels, equipment, and confined system layouts
- One‑piece drawn brass body provides superior stem support for long, smooth operation
-
Chrome‑plated ball and PTFE seats maintain low‑torque, leak‑free performance over years of cycling
- Double FPM stem O‑rings enhance sealing reliability for a wide range of media
- 1/8" to 1/2" FNPT/MNPT port options support small control circuits through general‑purpose flow isolation
- Designed for year-round operation across a wide –4 to 200 °F temperature range
-
Lifetime warranty
Starting at
(S34BX0)

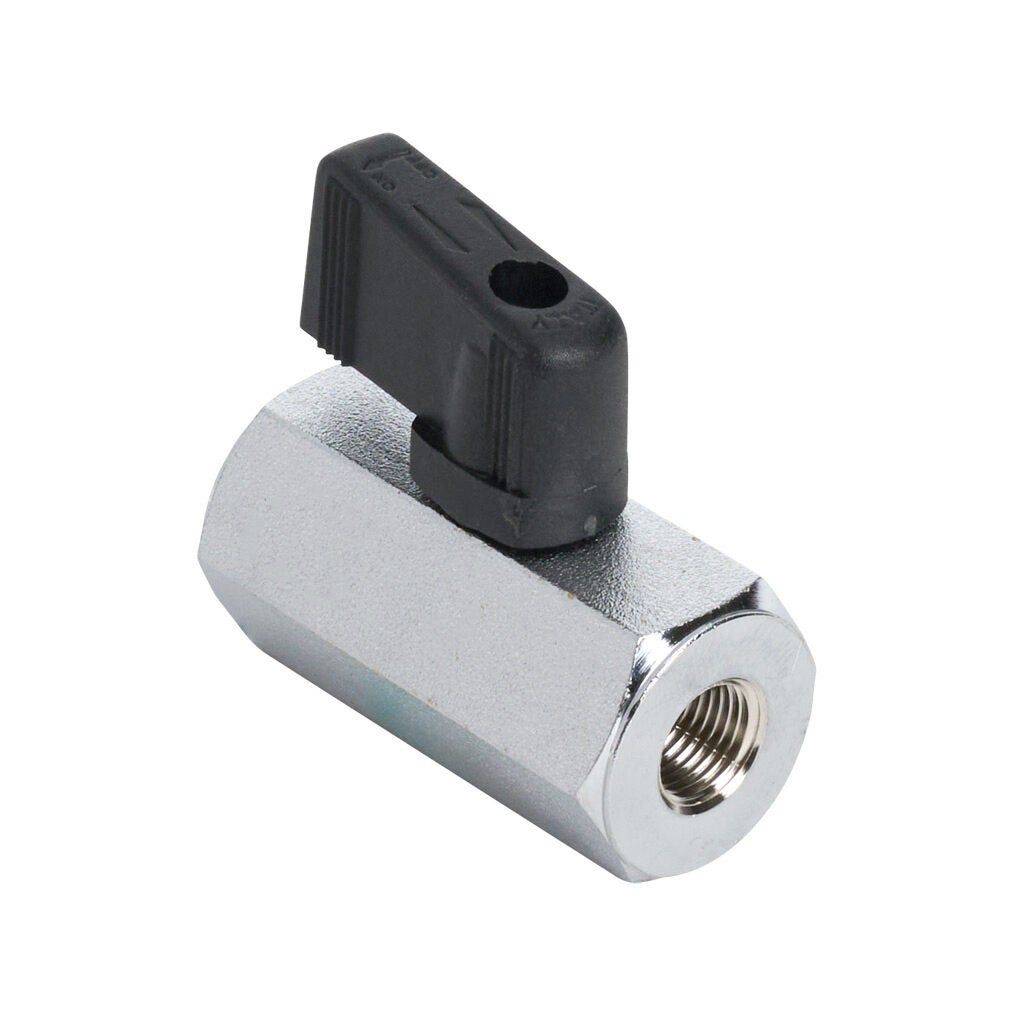

S35 Manual Mini Ball Valves
New!
-
Rated up to 450 psi to support high‑pressure requirements in compact system designs
- Patented one‑piece drawn brass body enhances strength and long‑term durability
- Blowout‑proof stem adds reliability in continuous cycling and elevated‑pressure use
- Chrome‑plated ball, PTFE seats, and FPM seals maintain smooth, clean, low‑torque operation over long service life
- 1/8" to 1/2" FNPT/MNPT port options support a wide range of general‑purpose flow‑control and isolation needs
- Lifetime warranty
Starting at
(S35BX0)

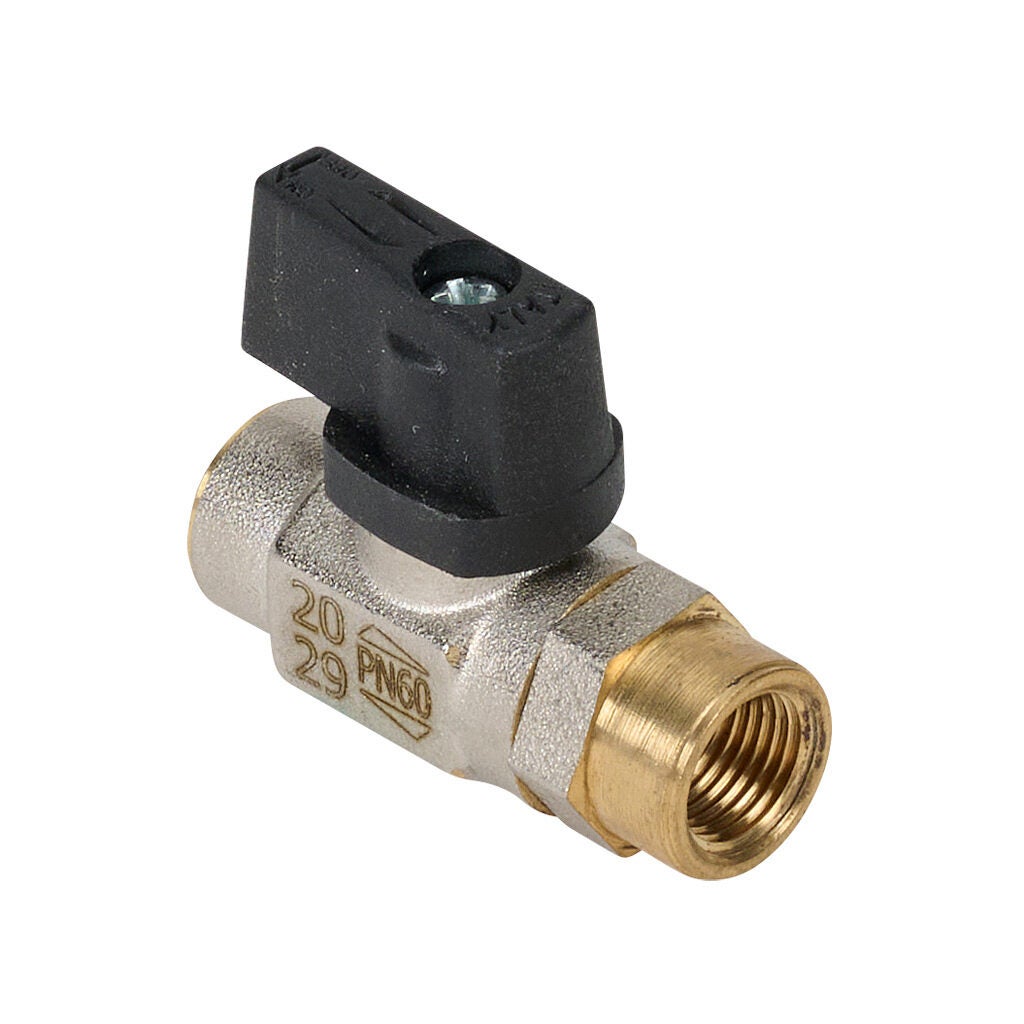

S39 Micro High-Pressure Ball Valves
New!
S39 series ball valves deliver exceptional durability, compact installation, maintenance-free operation, and bidirectional flexibility, offering high-pressure performance across air, gas, coolant, and water systems.
-
Rated up to 900 psi, delivering far higher pneumatic pressure capacity than typical micro ball valves in this size range
- Hot-forged, nickel-plated brass body resists wear from diverse media
- Chrome-plated ball and PTFE seats reduce friction for long, maintenance-free life
- Blowout-proof stem enhances safety in high-pressure circuits
- Cv 1.4 provides reliable flow for air tools, actuators, and test setups
- 1/8" to 1/4" FNPT/MNPT port options
- Lifetime warranty
Starting at
(S39AX0M)

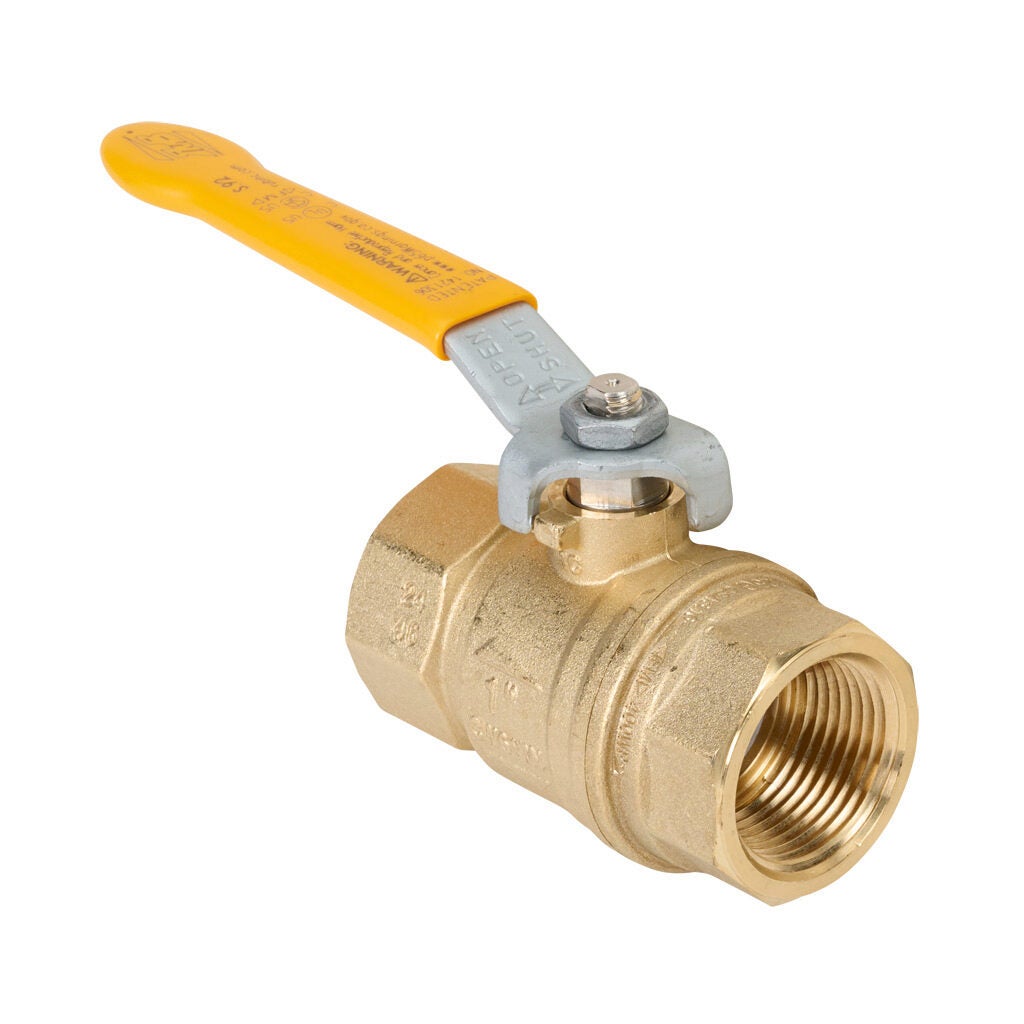

S92 Steam-Rated Manual Ball Valves
New!
- Rated up to 600 psi cold working pressure, 250 psi for LP-gas, and 150 psi for steam
-
Blowout‑proof nickel‑plated stem enhances operational safety in high‑energy applications
-
Glass‑filled PTFE seats maintain sealing stability during thermal cycling and elevated‑temperature operation up to 366 °F
- Adjustable PTFE packing gland enables field‑tightening for consistent sealing in air applications over time
-
CSA, FM, and UL approvals support use in regulated systems handling air, gas, liquid, and steam
- 1/4" to 2" NPT port options cover small equipment circuits through main process lines
- Lifetime warranty
Starting at
(S92B41)
S93 Lockable Exhaust Ball Valves
New!
-
Patented lockable handle secures only in the closed position to support OSHA‑compliant lockout
- Rated up to 200 psi non-shock cold working pressure for common industrial air pressures and safety‑critical pneumatic circuits
-
Blowout‑proof stem with dual FPM O‑rings improves reliability under frequent cycling
- 3‑way design enables positive shutoff and exhaust without added components
-
Tapped exhaust outlet allows direct muffler attachment for quieter, controlled venting
-
1/4" to 2" NPT ports supporting all from small equipment drops through main air headers
-
Molybdenum‑filled PTFE seats maintain smooth actuation and sealing consistency in air systems
-
Lifetime warranty
Starting at
(S93B41)

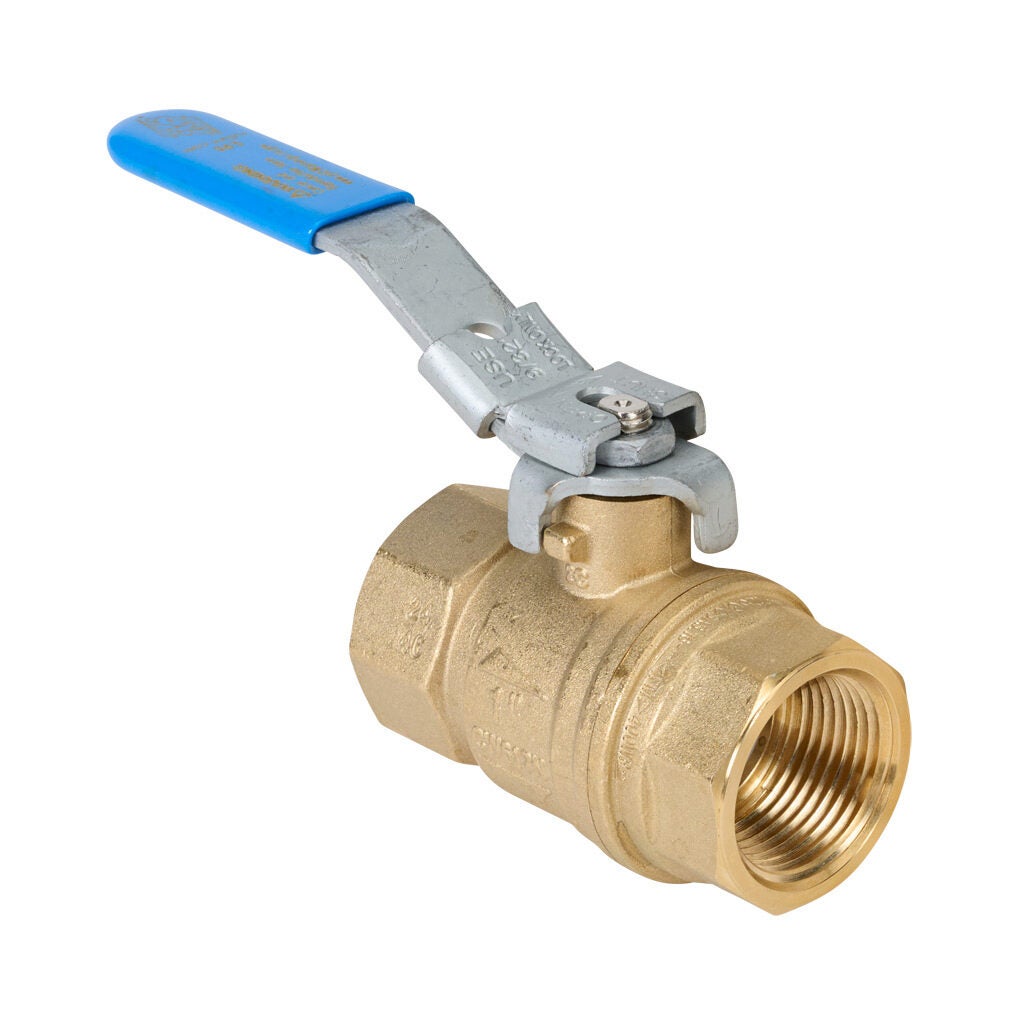

S95 Manual Ball Valves
New!
- 600 psi non-shock cold working pressure supports high‑pressure isolation across a wide media range
- Performance from –40 to
350 °F for stable operation in diverse process and facility conditions - Blowout‑proof nickel‑plated stem with PTFE seats and dual FPM O‑rings enhances sealing and cycle reliability under frequent cycling
- CSA, FM, and UL approvals support use in regulated industrial systems handling air, gas, or liquids
-
Available in standard, lockable, and spring‑return lever options to match operational and safety needs
- 1/4" to 2" NPT port options accommodate everything from equipment drops to high‑flow main lines
- Lifetime warranty
Starting at
(S95B41)
