Use our configuration tool to configure and order.
Ball screw driven linear actuators are designed for high-performance linear motion, providing higher speeds and duty cycles. Couplings' and hardware to mount small NEMA frame and SureServo motors are available, as well as hardware to create up to three axes of movement.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Ball Screw Driven Linear Actuators
Category Selection
Ball screw-driven linear actuators utilize ball bearings that are continuously circulated in between the ball nut and the shaft. This allows the nut to roll along the shaft as it turns, proving greater efficiency and much less friction. These highly efficient actuators are used when a linear motion application requires the highest precision, higher speeds, or very repetitive movements. They are available in lengths of up to 24 inches or 910mm.
For part listings and specifications, go to Shop Now

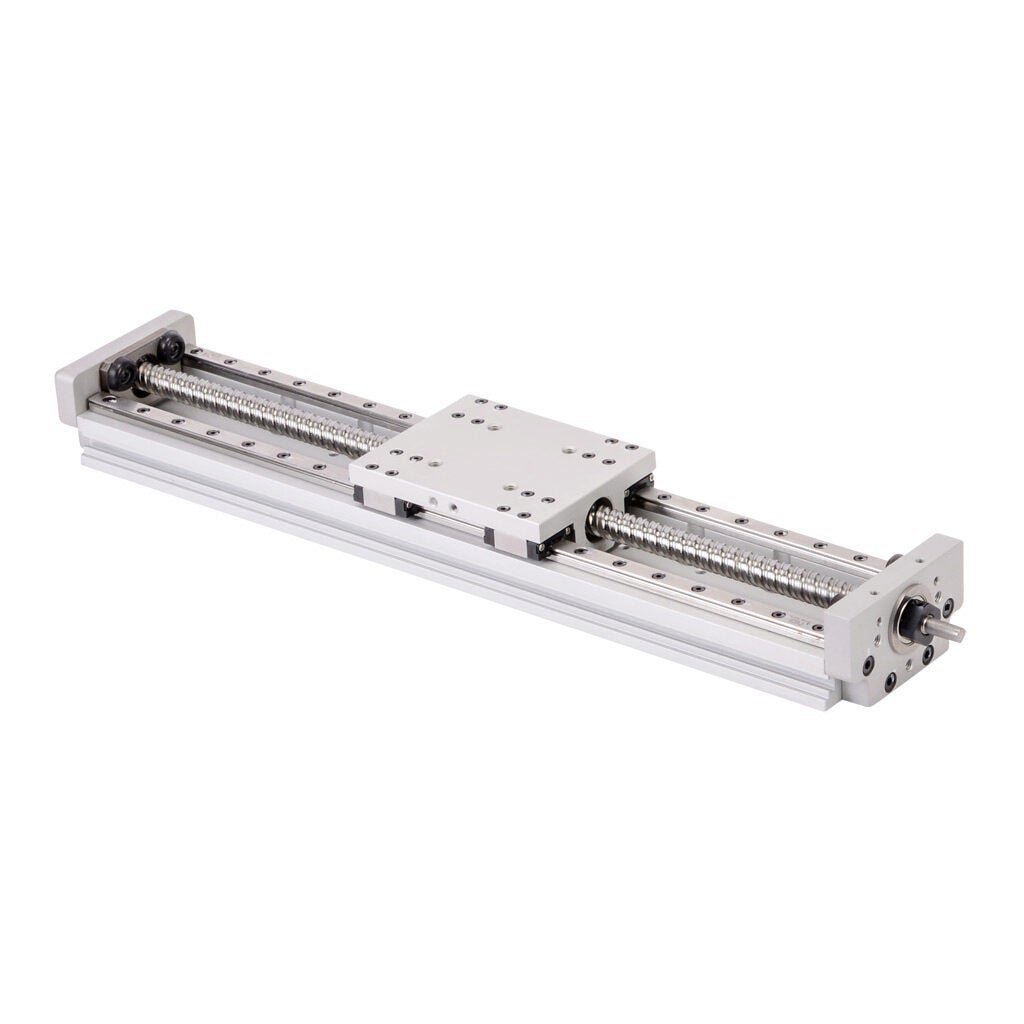

LAHP Series
Ball Screw Driven Actuators
SureMotion LAHP series XYZ Gantry linear slide actuators can be used to create ball-screw driven systems with up to three axes of motion.
- Travel distances from 52 to 910 mm
- Widths from 50 to 120 mm
- Available in 3mm and 10mm ball screw pitch
- Drive couplings available for a variety of small NEMA and SureServo motors
Starting at
$1,302.00
(LAHP-25TM52B3M)

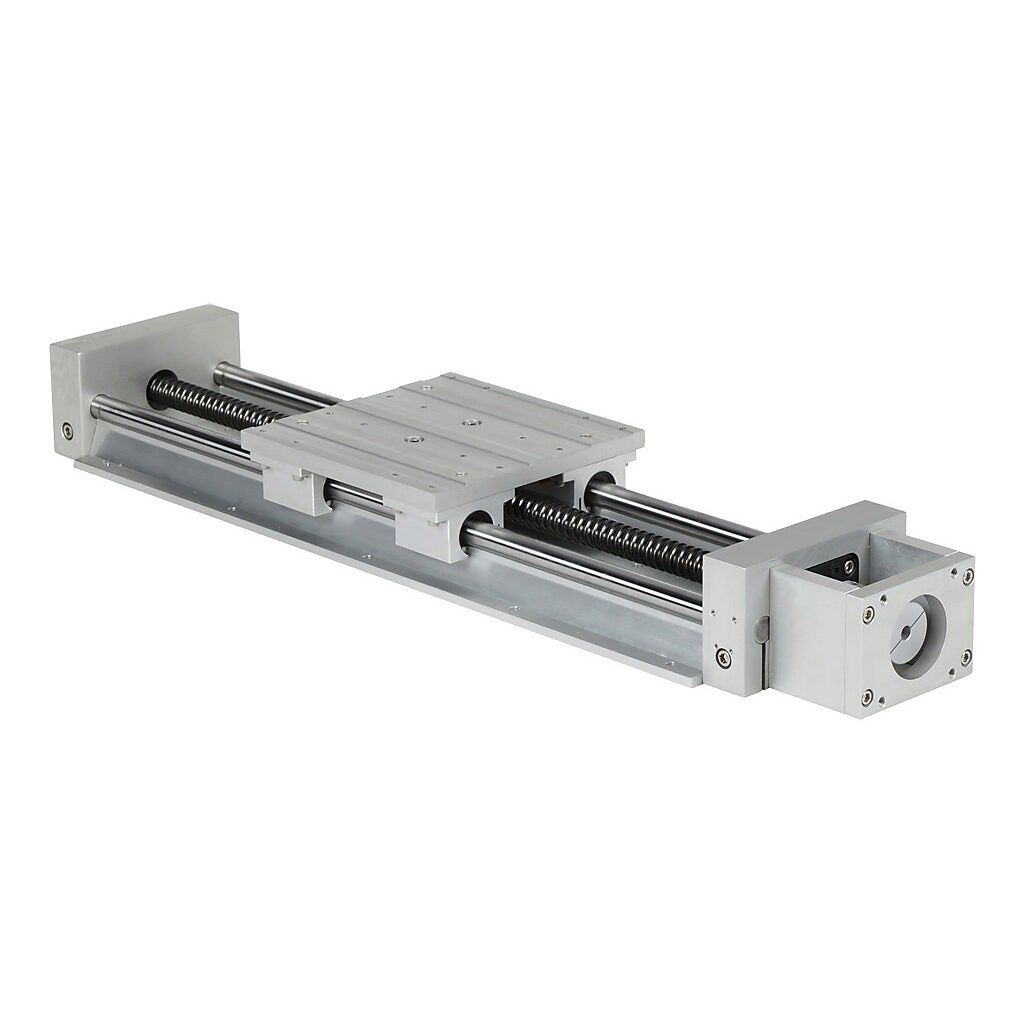

LARS Series
Ball Screw Driven Actuators
SureMotion LARS series round-shaft slide actuators feature a continuously-supported round rail slide with ball screw actuation.
- Travel distances of 12 or 24 inches, with 0.2 inch pitch
- Ideal for heavy loads
- Accepts NEMA 23 motors
Starting at
$3,157.00
(LARSD2-08T12BP2C)
