Undriven linear slides are used in multi-axis systems and run parallel to a linear actuator of the same travel length. These slides are used to stabilize the X-axis for more consistent, accurate operation. Mounting hardware to assemble a multi-axis system is available.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Undriven Linear Slides
Category Selection
Undriven linear slides are support devices used to help stabilize a multi-axis gantry system, provide assistance with moving loads, and ensure motion is straight and level.
Non-actuated linear slides usually consist of a carriage and a rail. The carriage is used to support the load as it slides across the rail. These slides can be used with many actuator styles, including stepper motor linear actuators or rack and pinion systems, to build a variety of machine mechanisms.
- Installed parallel to a linear actuator of the same travel length
- Widths of 50 or 60 mm
- Square or round shaft rail versions
- End-supported or continuously-supported styles available
For part listings and specifications, go to Shop Now

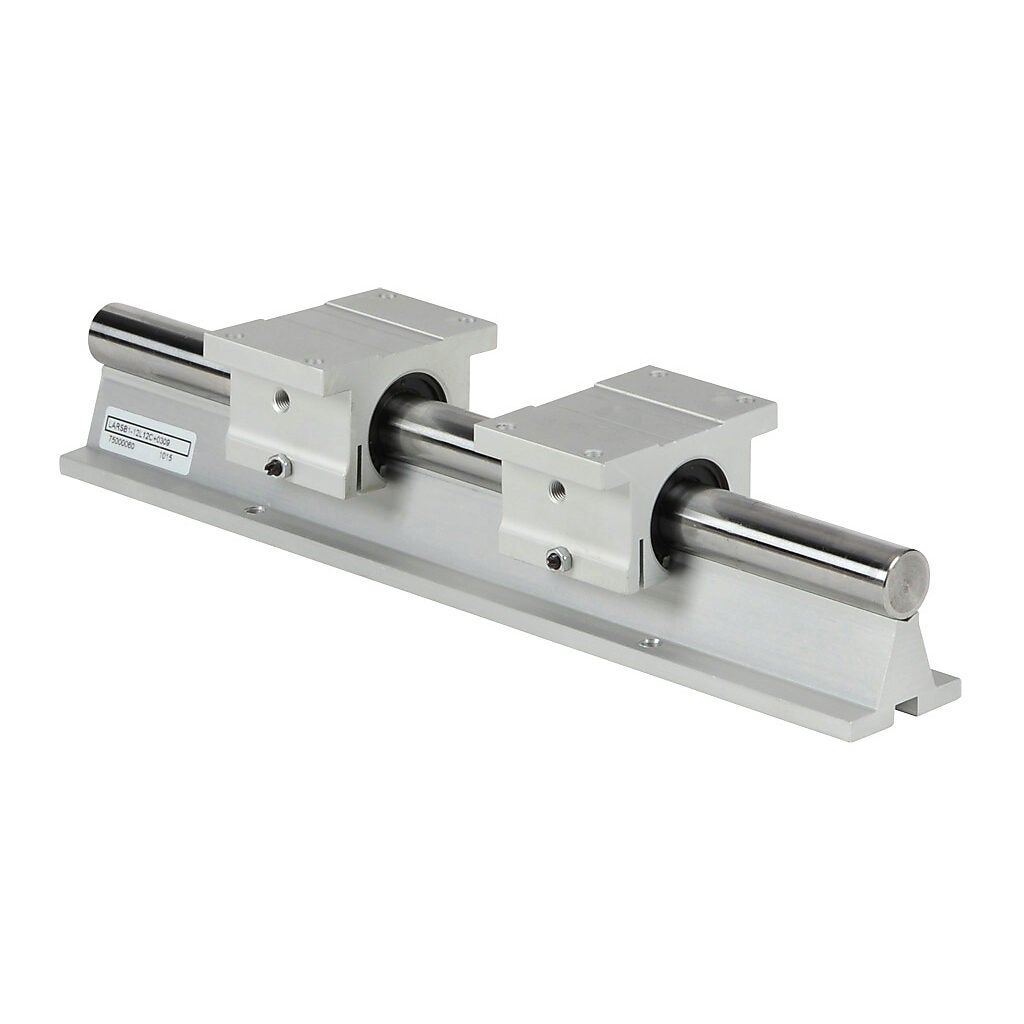

LARS Series Undriven Linear Slides
SureMotion LARS series undriven linear slides are round-shaft sliding elements that can be combined with other driven actuators to create stability of the x-axis.
- Travel lengths of up to 36 inches
- Linear ball bearings
- ANSI 15566 carbon steel, 60 RC round shafts
Starting at
$354.00
(LARSA1-08L12C)

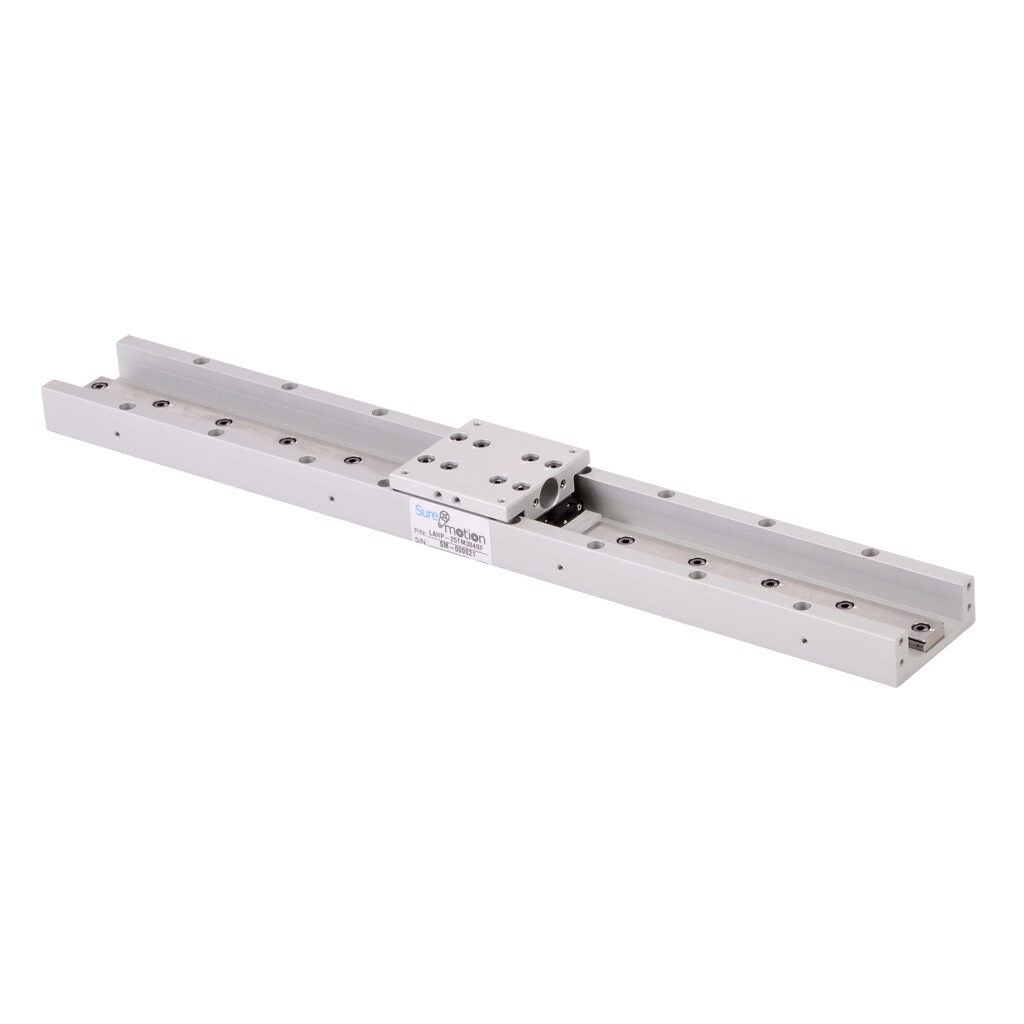

LAHP Series Undriven Linear Slides
SureMotion LAHP series undriven linear slides are continuous square shaft slides used to stabilize the x-axis in a SureMotion Gantry system.
- Travel lengths of up to 910mm
- Linear ball bearings
- Max linear speed 1.5 m/s
Starting at
$652.00
(LAHP-25TM52SF)
