Optional accessories for SureServo2 systems include Ethernet modules, toroid, communications cables, RS485 splitter and terminating resistor, and an encoder battery box and cable. The free downloadable software (with a USB programming cable) offers greatly enhanced programming, backup, and troubleshooting options.

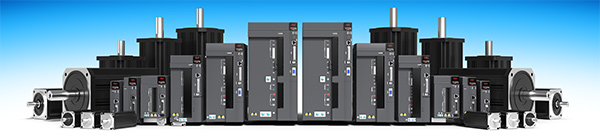

The AutomationDirect SureServo2 family of brushless servo systems is the newest edition of our flagship SureServo family. SureServo2 offers even more power and features (and at lower cost) than our previous offering. There are 15 standard permanent magnet servo motors that can be operated in combination with one of eight standard servo drives:
The SureServo2 family is designed for flexibility and quick implementation.
SureServo2 (SV2A series) drives accept a wide range of command sources:
For configuration, tuning and diagnostics:
Complete servo systems start at $810.00
The SureServo2 servo systems provide the highest possible level of performance for precise control of position, velocity, and torque. Compared to our previous SureServo1 family AND to other low-cost stepping systems, the SureServo2 products provide:
These accessories are required for interface to the on-board drive I/O (via the CN1 connector).
These connector parts can be used with the appropriate bulk cable to create custom servo cables. We strongly recommend that customers purchase our professionally manufactured cable sets for motor power, encoder feedback, and the optional holding brake, but there may be applications where the custom cables must be field-wired. Replacement mating connectors for various drive connections are also available.
Optional accessories include Ethernet modules (Modbus TCP or EtherNet/IP), a toroid (EMI/RFI filter), communications cables, RS485 splitter and terminating resistor, and an encoder battery box and cable to enable absolute encoder functionality.
The drive can be programmed via the on-board keypad, but the free downloadable software (and a USB programming cable) offer greatly enhanced programming, backup, and troubleshooting options.
