DC motors are designed for use with unfiltered SCR (Thyristor) type and PWM (pulse width modulated) type DC adjustable speed drives, and on across-the-line DC controls. DC motors are perfect for conveyors, turntables, anywhere adjustable speed and constant torque are required, or when dynamic braking and/or reversing are needed.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
DC Motors
Category Selection
Industrial DC motors have historically been of the brush type with speed controlled by varying the amount of armature current. AC motor speed control is achieved by varying the frequency of the alternating current. DC motors are typically more efficient than AC motors and provide 100% rated torque from 0-100% of base speed. Their speed can be easily controlled with a simple analog DC drive.
Applications
- Conveyors
- Turntables
- Where adjustable speed and constant torque are required
- When dynamic braking and reversing capabilities are needed
For part listings and specifications, go to Shop Now
DC Armature Motors
(1/3hp and above)
IronHorse motors are manufactured by leading motor suppliers for the U.S. market. These suppliers thoroughly test these motors during production and after final assembly to ensure long-lasting operation. IronHorse DC motors are designed for use with unfiltered SCR (Thyristor) type and PWM (pulse-width-modulated) type DC adjustable-speed drives, as well as across-the-line DC controls. These NEMA-framed motors bolt directly to gearboxes or motor mounts that fit the selected frame size.
- 56C / 90 VDC armature models in sizes from 1/3hp to 1-1/2hp
- 56C / 180 VDC armature models in sizes from 1/3hp to 2hp
- Input power of 115 or 230 volts rectified AC can be used with an appropriate SCR drive
- Linear speed/torque characteristics over entire speed range
- High starting torque for heavy load applications
- Capable of dynamic braking for faster stops
- Available in TENV or TEFC housings, depending on model
- NEMA 56C flange mount
- Rolled steel shell frame / cast aluminum end bell
- Removable feet
- STABLE motor slide base available for adjustable mounting
- Large replaceable brushes for longer brush life
- Easy access to DC motor brushes (shipped with set of spare brushes)
- Large easy-to-wire junction box with rubber gasket
- Heavy duty oversized ball bearings
- High tensile strength steel shaft
- Electrically reversible

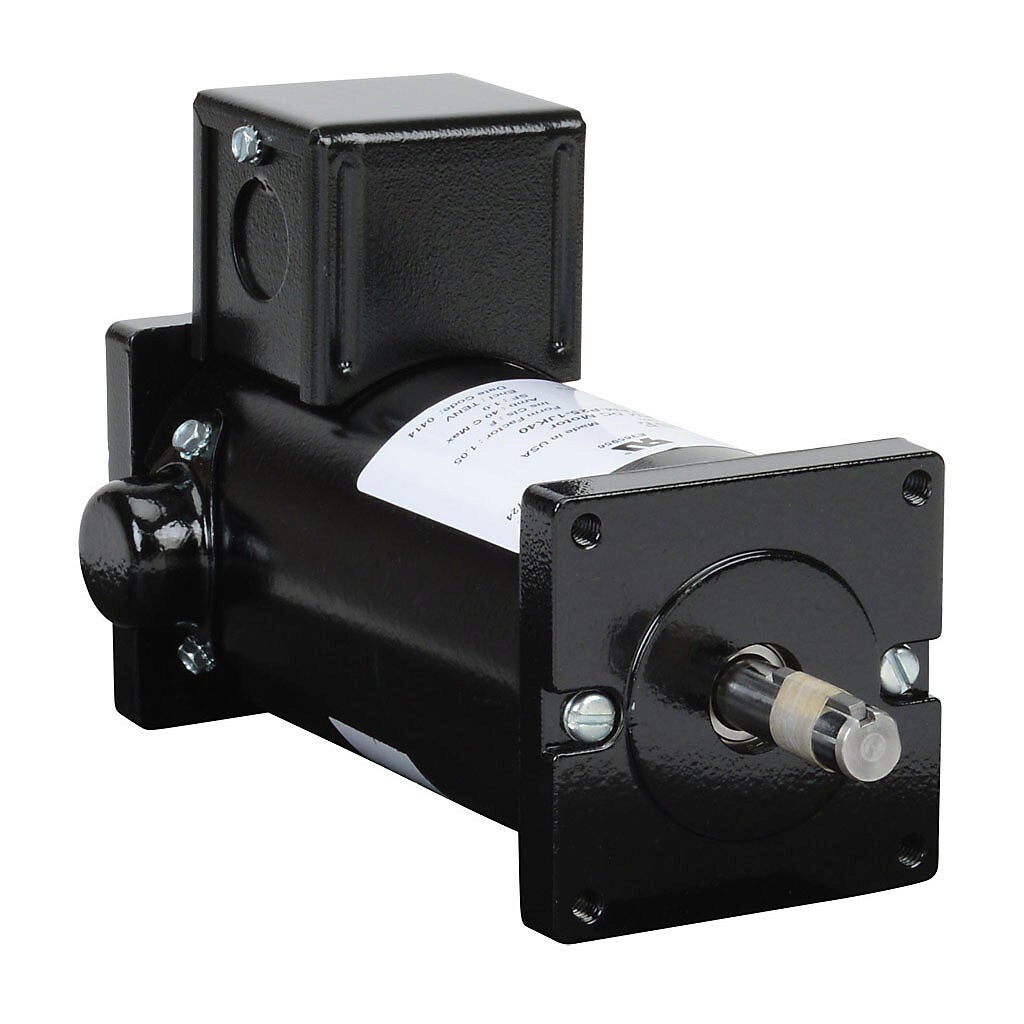

Small Motors / 12-180 VDC
(1/4hp and under)
Small frame IronHorse DC motors feature the same quality as their full-sized counterparts and are also designed for use with unfiltered SCR (Thyristor) type and PWM (pulse-width-modulated) type DC adjustable-speed drives, as well as across-the-line DC controls. These motors are useful for moving small loads when a compact framed motor is required.
- Sizes to 1/4hp
- Available models accommodate:
12VDC, 24VDC, 90VDC (can be used with 110VAC powered DC drives), and 180VDC (can be used with 230VAC powered DC drives) - Rated for SCR drives
- TENV enclosure
- IP40 environmental rating
- High energy ceramic magnets
- Double shielded ball bearings
- Dynamically balanced armature
- Reversible design
- 18-inch leads, or junction boxes with 8-inch leads
- Externally replaceable brushes
- Can be mounted in any orientation
- Not intended for DC power generation
DC Motor Accessories
- All IronHorse permanent magnet DC motors are shipped with brushes installed. An extra set of PMDC motor brushes is also included in the box. 56C DC motors (0.33HP and above) also ship with an extra set of brushes. Replacement brushes are available.
- Mounting slide bases for 56C permanent magnet DC electric motors allow adjustment of motor mounting position.
