DC Power Supplies

Encapsulated (PSE Series)

RHINO PSE Series Encapsulated, Dual Output Power Supplies. The PSE series power supplies are rugged AC-DC power supplies (switch mode) encapsulated in an ultra-compact, low profile housing. The PSE series DC power supplies feature a universal input from 85-264 VAC with single or dual outputs from 15 Watts up to 60 Watts (above 30 Watt, single output only). These small power supplies operate at up to 440 Hz input.

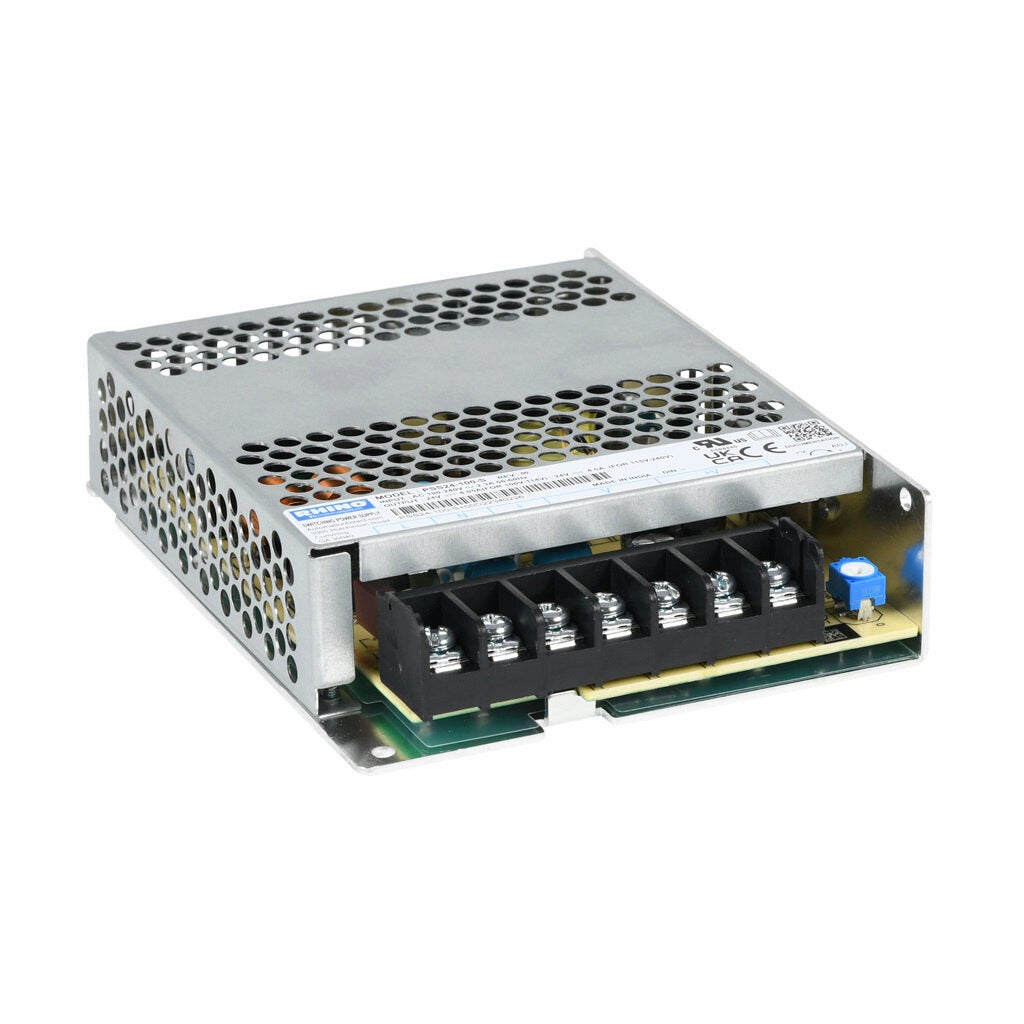

Enclosed Panel Mount (PSS Series)

RHINO PSS Series panel mount power supplies are perfect for applications that require a basic DC voltage power supply. These low cost power supplies offer high performance and reliability without all the additional features of higher cost full-featured DC power supplies.

Open Frame (FA Series)

FA Series DIN Rail or Panel Mount Power Supplies.

• The compact FA-24PS power supply accepts 85-265 VAC input and provides up to 1.2 A output current at 24 VDC.
• The FA-24PS-90 power supply accepts either 95-130 VAC or 190-264 VAC (jumper selectable) input and provides up to 3.7 A output current (90 W at 24 VDC).

Specialty Modules

RHINO Series Redundancy, Battery Control and Buffer Modules

• Battery Control Module - PSL-24-BCM240
• Battery Control Module - PSH-BCM360S
• Battery Control Module - PSB24-BCM960S
• Redundancy Module - PSB60-REM20S and PSB60-REM40S
• Buffer Module - PSB24-BFM20S
• RHINO PSM Series Specialty Modules
• Redundancy Module - PSP24-REM240S

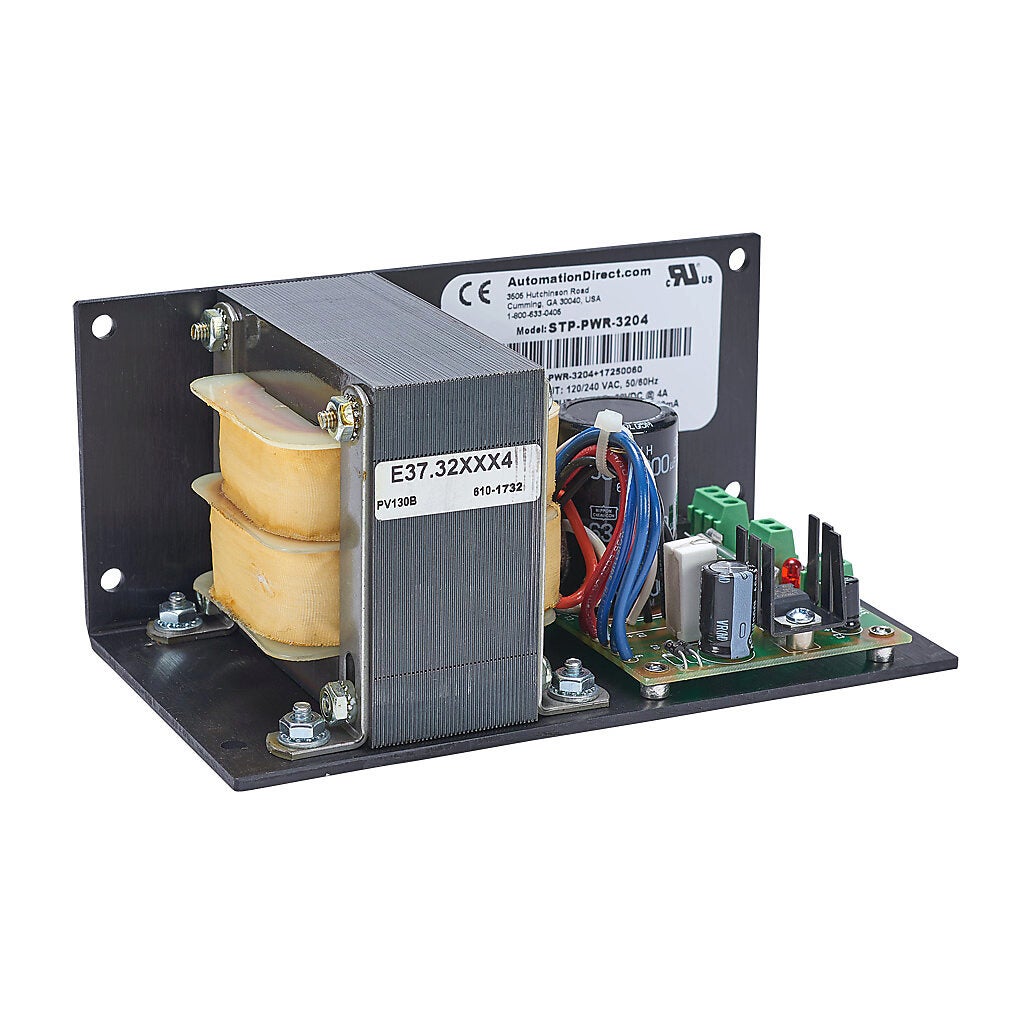

Linear (Stepper) Power Supplies

Unregulated Open Frame linear power supplies offer full load outputs of 48 VDC/5A, 48 VDC/10A, and 70 VDC/5A. Less expensive than regulated power supplies, they are perfectly suited to provide the power for SureStep stepper drives and stepper motors.

RHINO PSB Series DIN rail power supplies are available with universal single-phase input and with output voltages of 48VDC with 240 and 480 Watts. They feature high efficiencies, conformal coated circuit boards, and approval for Class 1, Division 2 hazardous locations.
