Linear DC Power Supplies

Regulated and unregulated open-frame linear power supplies are available with outputs up to 75 VDC @ 6.6A. These simple power supplies feature a clean DC output with low output noise and ripple. Select models offer multiple output voltage options, and many are suitable for stepper applications.

DIN Rail Mount

Rugged Machine Mount

Encapsulated Chassis Mount

Enclosed Chassis Mount

Open Frame

Specialty Modules

Linear Power Supplies

DC Power Supplies Accessories

Shop Now

Linear Power Supplies

Linear power supplies are rugged devices frequently used in industrial equipment, such as CNC machines, robots, and automated assembly lines. The basic components of a linear power supply are a transformer, a rectifier, and a filter capacitor:

The transformer steps down the input voltage to a lower voltage that is suitable for the rectifier
The rectifier converts the AC voltage to a DC voltage
The filter capacitor smooths out the DC voltage to remove any ripple

A regulated linear power supply also includes voltage regulation circuitry that maintains the output voltage at a constant level, regardless of changes in the input voltage or load current.

Regulated and unregulated linear power supplies offer several advantages, including low output ripple, high output voltage accuracy, and low output noise. They are relatively simple in design and generate minimal electromagnetic interference (EMI) due to the absence of high-frequency switching components.

For part listings and specifications, go to Shop Now

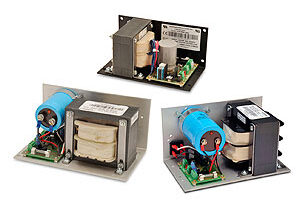

Unregulated Linear Power Supplies

Unregulated open frame linear power supplies are designed for low cost, high current applications when full regulation is not required. Many of these rugged, highly reliable power supplies are perfectly suited to provide power for stepper drives and stepper motors.

Models from International Power and SureStep
32, 36, 48, 70, and 75 VDC output options up to 480W (depending on model)
120/240 VAC selectable input
Secondary fuse protection
Select models offer an additional 5VDC, 500 mA regulated logic supply with electronic overload protection
Select models are made in the USA

Starting at

(STP-PWR-3204)

Regulated Linear Power Supplies

International Power regulated open frame power supplies are designed to operate from a wide range of AC power sources. They maintain a constant output voltage regardless of changes in input voltage or load current and offer better voltage regulation than other types of power supplies, ensuring accurate and consistent power delivery.
