Digital panel meters with analog inputs support multiple signal types for displaying various industrial process parameters with simple setup and bright LED displays. Sunlight-readable large format displays and options for expansion, serial communication, and secondary displays are available.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Analog Input
Digital panel meters with analog input provide a simple, cost-effective way to display process values. Select models also support temperature, load cell, and potentiometer inputs.
- Easy setup via menu-driven pushbuttons; once configured, parameters can be fully or selectively locked to prevent unauthorized or accidental changes
- Two-point direct or reverse-acting linear scaling can be entered manually or taught using actual process values
- Compact housing models minimize panel space requirements
- Large format displays provide clear visibility, even in direct sunlight
For part listing and specifications, go to Shop Now

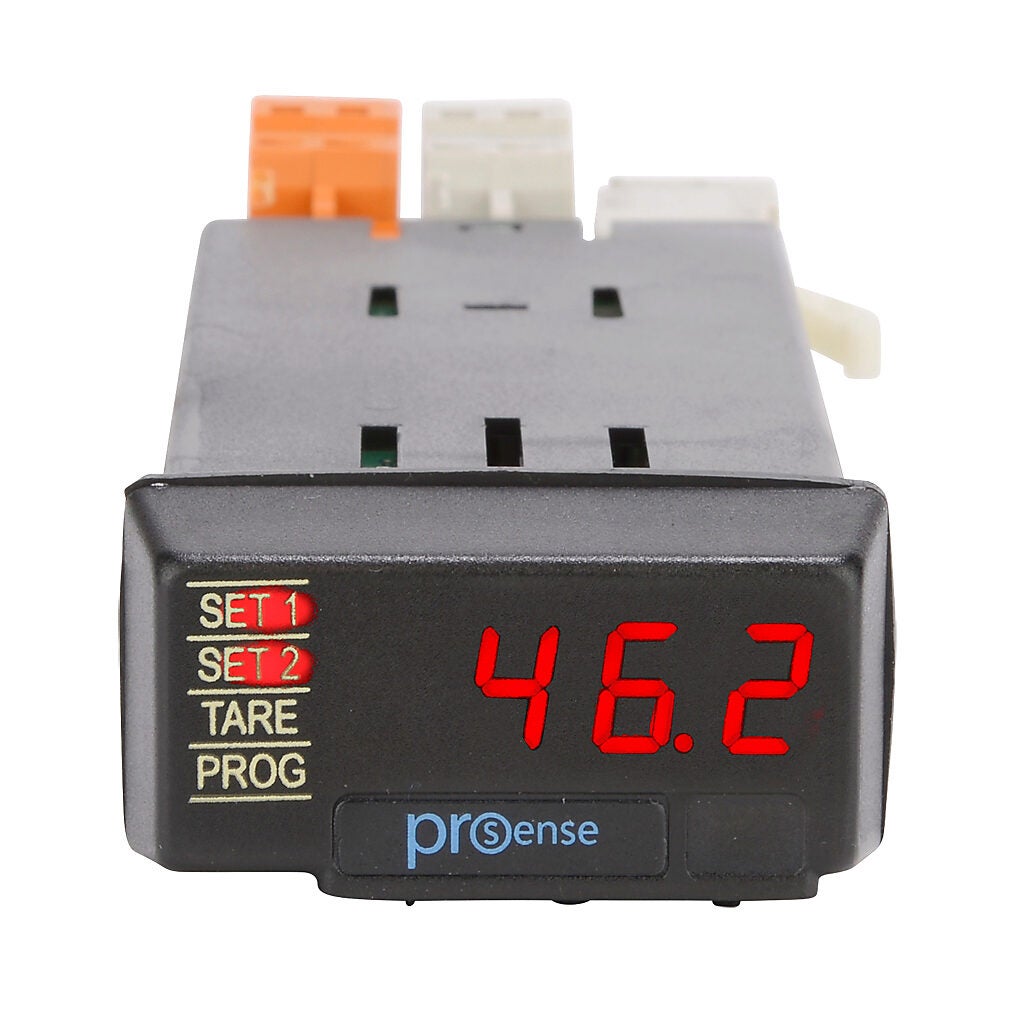

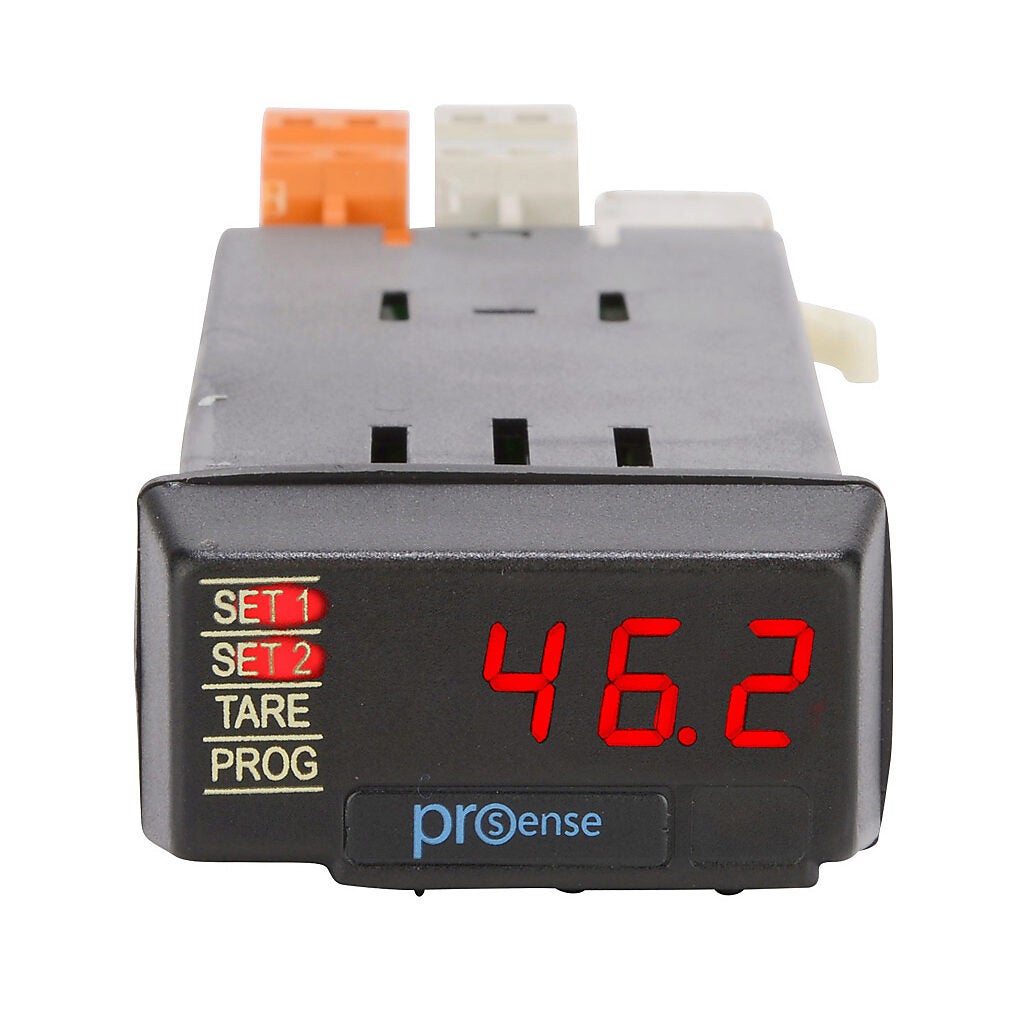

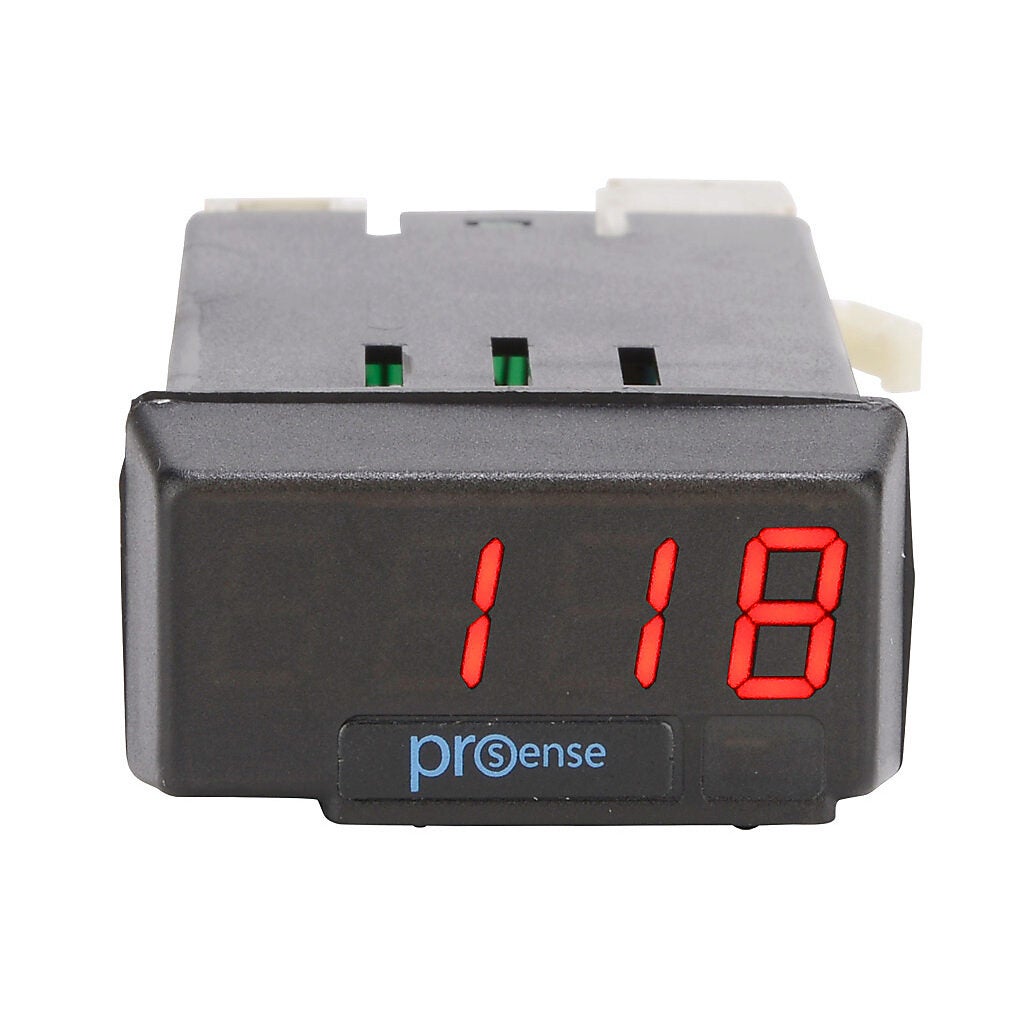

DPM1-A Series
ProSense DPM1-A series digital panel meters are a popular, cost-effective option for displaying various industrial process parameters. They accept common industrial signals such as 4-20 mA, making them suitable for displaying readings from various sensors (pressure, flow, level, etc.).
- Compact 1/32 DIN size saves panel space
- Bright 4-digit red LED display for clear visibility
- Multiple operating voltages, including loop-powered models, provide flexible installation options
- IP65-rated for dust and water jet protection
Starting at
(DPM1-A-LP)

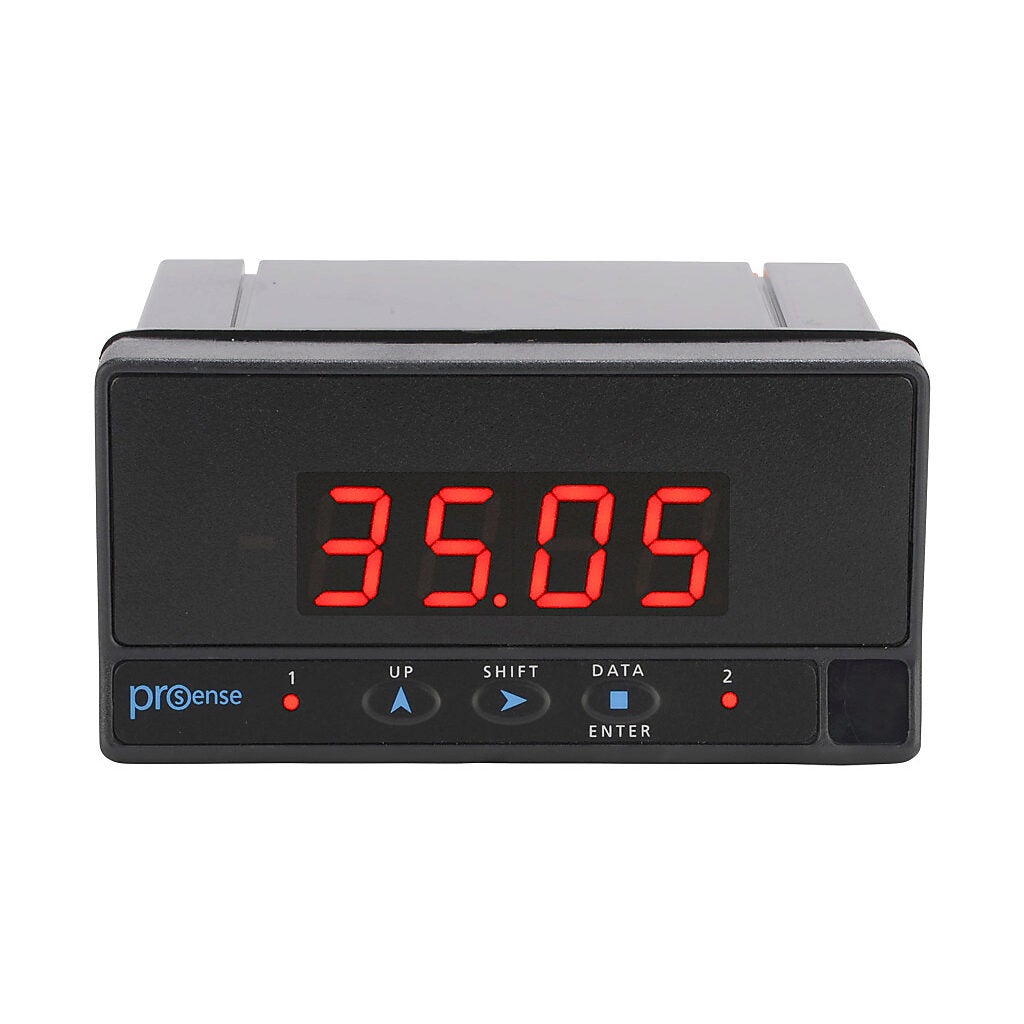

DPM2-AT Series
ProSense DPM2-AT series digital panel meters with 4-digit LED display offer large characters and a range of input and output options. They accept analog process signals, RTDs, various thermocouple types, and potentiometer/resistance inputs.
- 1/8 DIN size with larger characters for better visibility
- Optional dual Form C relays for basic alarm/control functions
- Built-in 24VDC excitation powers sensors and simplifies wiring
- Process teaching mode enables easy two-point linear scaling
- Wide AC/DC input power range ensures power source compatibility
- Min/max value capture supports process monitoring
- IP65-rated for dust and water jet protection
Starting at
(DPM2-AT-HL)

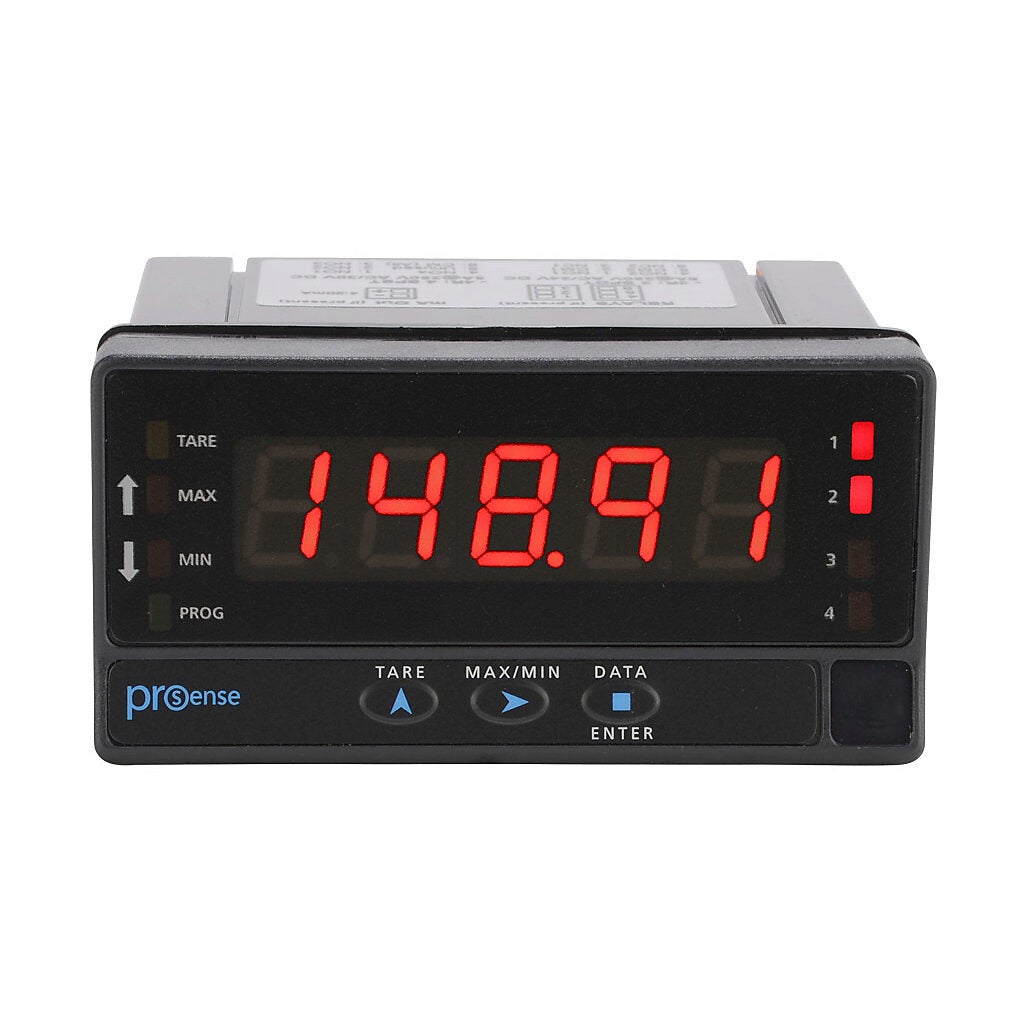

DPM3-AT Series
ProSense DPM3-AT series digital panel meters are extremely versatile, offering more advanced features for a wider range of industrial monitoring and control applications.
- Input options include analog process signals, temperature, potentiometer, and load cell (for weighing applications)
- Tri-color LED (red/green/amber) display provides color-coded visual cues for quick status indication
- 5-digit display allows greater precision and a wider measurement range
- Up to (4) Form A and (2) Form C relay output options for expanded control
- 11-point scaling supports complex non-linear processes
- Multiple excitation voltages accommodate a variety of sensor types
Starting at
(DPM3-AT-H)

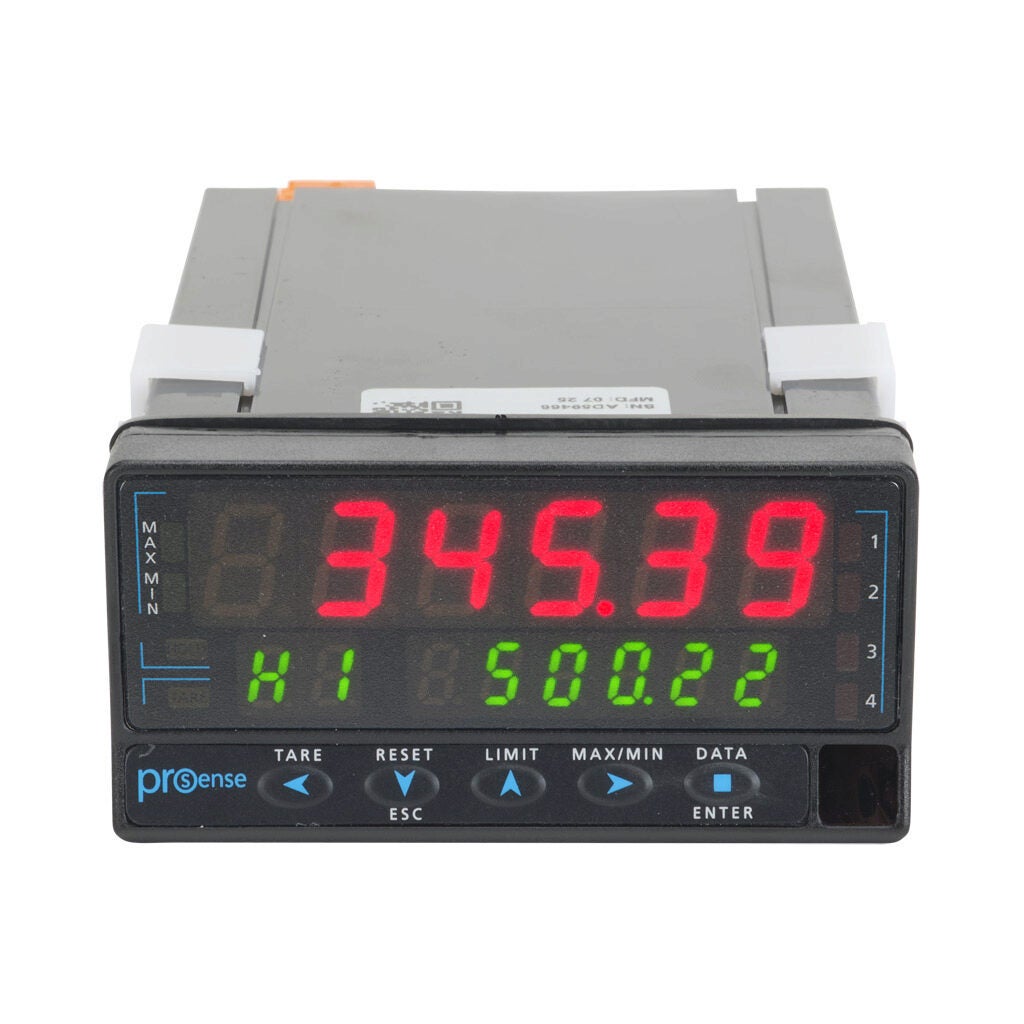

DPM4 Series
New!
ProSense DPM4 series 1/8 DIN advanced digital panel meters combine precision, flexible inputs, multi-function displays, and customizable outputs in a compact package. High-speed options (HS models only) are available for applications requiring rapid sampling and an ultra-fast response.
- Input options include analog process signals, temperature (AT models only), potentiometer, and load cell (for weighing applications)
- Bright 5- or 6-digit 14mm red LED main display plus secondary 8mm green displays
- Supports up to three output modules for customizable functionality
- Analog outputs (0-10 V or 4-20 mA)
- Discrete outputs (Relay, NPN, or PNP)
- Serial communications (RS-232C or RS-485)
- Linear (direct or reverse), non-linear (up to 30 points), and teach-mode scaling options
- Advanced process modes (AT models only) for common process calculations and control
- High-speed (HS models) panel meters can trigger setpoint outputs in as little as 2.1 ms and provide analog output response times of 5 ms
- IP65 protection rating
Starting at
(DPM4-AT-H)

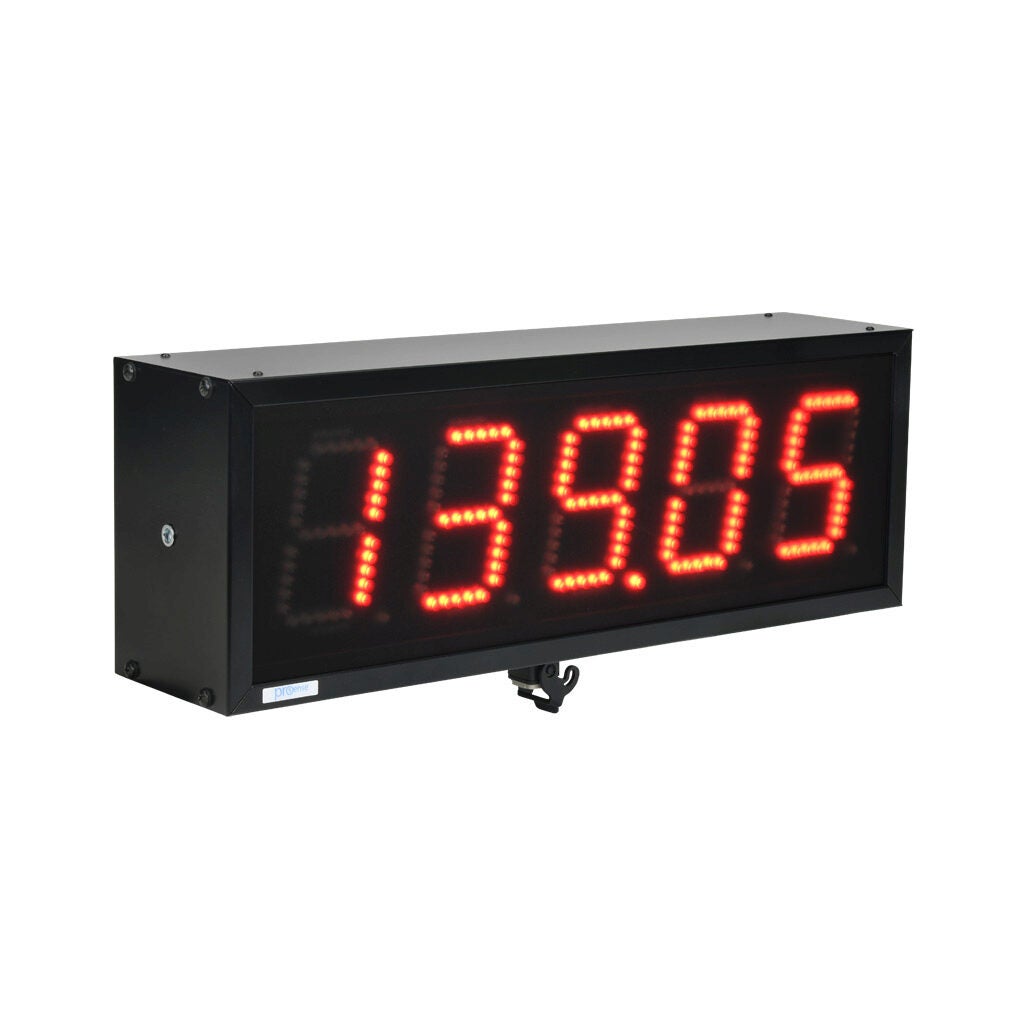

LPD5-A Series
New!
ProSense LPD5-A series large format displays provide ultra-bright, high-contrast readouts for analog process signals, ensuring clear visibility, even in direct sunlight. These rugged, field-mount units are built to endure harsh outdoor environments.
- Extra-large, tri-color LED digits for instant readability
- Supports voltage and current inputs, with selectable ranges for flexible integration options
- Two customizable 5A SPDT Form C relay outputs for alarming, indication, and control
- Display scaling or teach-in modes allow precise calibration and simple adjustments
- UV-resistant materials ensure reliable performance in outdoor environments
- IP65 protection rating guarantees reliable performance in wet or dusty conditions
Starting at
(LPD5-A-AC)
LPM1-A Series
ProSense LPM1-A series panel meters offer a loop-powered design and focus on analog signals, drawing all power directly from the monitored 4—20 mA loop. This eliminates the need for separate power wiring, streamlines installation, reduces costs, and makes them ideal for remote or field-mounted applications.
- 5-digit LCD with large digits for clear viewing
- 11-segment bar graph shows relative signal position at a glance
- The backlight improves visibility in low light
- Supports direct/reverse-acting linear processes and includes square root extraction for flow applications
- Selectable high and low range error limits provide alerts when values fall out of range and help identify process issues quickly
- Panel- and enclosed field-mount models offer flexible installation options
- IP65 panel-mount and IP66/67, NEMA 4X field-mount models ensure reliable operation in wet or dusty environments
Starting at
(LPM1-A-PNL)
