Digital Panel Meters with Temperature Input
Digital panel meters with temperature inputs support RTDs, thermocouples, and other signals for reliable process monitoring. High-visibility displays, 22mm panel mounting, and options for alarms, retransmission, sensor excitation, I/O expansion, and serial communication provide added flexibility.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Digital panel meters with temperature input display measurement data transmitted from RTDs, thermistors, and thermocouples; select models are also capable of displaying analog process, load cell, voltage, potentiometer, and pulse values.
- Easy to set up using menu-driven pushbuttons or configuration software (depending on model)
- Scaling and display configuration allow process signals to be presented in meaningful engineering values
- Models with compact housings, including 22mm panel-mount options, take up minimal panel space
For part listing and specifications, go to Shop Now

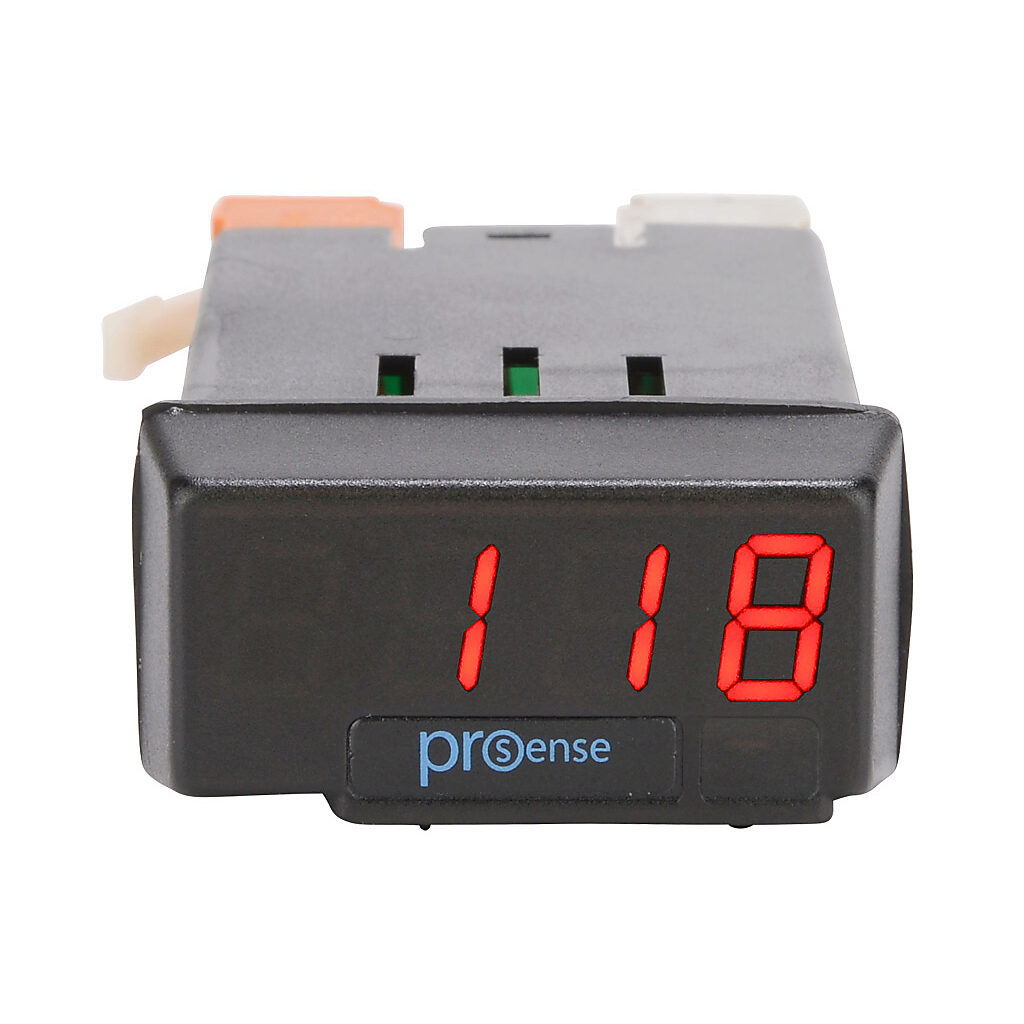

DPM1-T Series
ProSense DPM1‑T temperature meters offer a straightforward, economical way to display readings from common industrial sensors. Their compact 1/32 DIN format and durable construction make them a solid fit for small panels that need dependable temperature indication.
- Bright 4‑digit LED display provides clear, easy‑to‑read temperature indication
- Selectable °F or °C display supports a wide range of temperature‑monitoring applications
- RTD and thermocouple input compatibility accommodates common industrial temperature sensors
- AC or DC power options ensure flexibility in standard control environments
- IP65‑rated front panel protects against dust and water in harsh environments
Starting at
(DPM1-T-H)
DPM2-AT Series
ProSense DPM2‑AT meters offer a practical 1/8 DIN solution for routine process and temperature monitoring. Their bright display and broad input compatibility make them a dependable choice for everyday industrial applications that call for clear indication and straightforward integration.
- 14mm or 20mm red LED displays provide a clear, easy-to-read indication
- Versatile input capabilities support a wide range of industrial signals
- Selectable decimal point location matches display resolution to engineering units
- AC or DC power options ensure compatibility with standard control power sources
- Sensor excitation output powers external transmitters without a separate supply
- Optional (2) Form C SPDT relays provide alarm or control outputs using hysteresis or time-delay operation
- Min/max value capture supports process monitoring
- IP65-rated meter face protects against dust and low-pressure water exposure in harsh environments
Starting at
(DPM2-AT-HL)
DPM3-AT Series
ProSense DPM3‑AT meters enhance standard indication with a tri‑color display and expanded configuration options. Built on a rugged 1/8 DIN platform, they support applications that benefit from added visual feedback, flexible scaling, and optional outputs for more advanced monitoring needs.
- 14 mm tri‑color LED display provides clear, easy‑to‑read indication
- Versatile input capabilities support a wide range of industrial signals
- Selectable decimal point location matches display resolution to engineering units
- AC or DC power options ensure compatibility with standard control power sources
- Sensor excitation output powers external transmitters without a separate supply
- 4-20 mA analog output on select models allows signal retransmission to other devices
- Optional Form C or Form A relay outputs on select models provide flexible alarm and control functions
- Advanced scaling functions accommodate non‑linear sensors and processes
- Programmable functions such as min/max value memory and reset, tare, and hold provide operational flexibility
- Adjustable input filtering minimizes display bounce for stable, readable measurements
- Display brightness adjustment improves visibility in varying lighting conditions
- IP65-rated meter face protects against dust and low-pressure water exposure in harsh environments
Starting at
(DPM3-AT-H)
DPM4-AT Series
ProSense DPM4‑AT‑H meters provide higher‑level process visibility with a multi‑line display that presents key values simultaneously. Their 1/8 DIN design and modular expansion options make them well-suited for applications that require more comprehensive indication and adaptable functionality.
- High‑visibility multi‑line LED display provides a clear indication of primary and secondary values
- Versatile input capabilities support a wide range of industrial signals
- Selectable decimal point location matches display resolution to engineering units
- Selectable sensor excitation output powers external transmitters without a separate supply
- Optional accessory cards expand analog, discrete, and serial communication capabilities
- Advanced scaling functions accommodate non‑linear sensors and processes
- Multiple process modes and functions provide flexibility for batching, totalizing, dosing, and related operations
- IP65-rated meter face protects against dust and low-pressure water exposure in harsh environments
Starting at
(DPM4-AT-H)
Merlin Series
Define Instruments Merlin series UL-listed digital panel meters accept a wide range of input types, allowing users to standardize on a single meter for many applications. Configuration is fast and intuitive with the free Define ToolBox software. The USB connection powers the meter during setup, allowing full configuration before installation.
- Bright, wide‑angle red LED display provides clear, easy‑to‑read indication
- Setpoint indicator LEDs offer quick visual confirmation of alarm or output status (R2A model)
- Buttonless front panel prevents accidental configuration changes in busy environments
- Wide‑range AC/DC power input ensures compatibility with standard control power sources
- Flexible input capabilities support analog, temperature, and pulse signals for broad application coverage
- Built‑in sensor excitation powers external transmitters without a separate supply
- Optional analog, relay, and user‑input I/O provide expanded control, retransmission, and reset functions (R2A model)
- Advanced scaling and linearization accommodate non‑linear sensors and processes
- Durable 1/8 DIN enclosure with shallow installation depth and IP65 front protection withstands harsh industrial environments
Starting at
(DEFINE-MERLIN)
DPM22 Series
New!
ProSense DPM22 series panel meters provide convenient visual monitoring of process values in compact 22 mm panel-mount housings. The 48 x 26 mm display mounts in a standard 22.5 mm panel cutout, helping conserve panel space. Numeric and bar graph models provide detailed readings or at-a-glance signal level indication.
- The numeric display model features a 4-digit, 7-segment display that shifts from green to yellow to red based on user-defined thresholds for clear indication of changing process conditions
- The bar graph model features a 10-segment bar graph with tri-color coding and flashing states to provide quick visual indication of signal levels and alarm conditions
- Both models accept a wide range of input signals, including RTD, thermocouple, DC voltage, and DC current signals
- A configurable NPN transistor output provides control or alarm signaling
- Parameters can be configured using pushbuttons on the mounting barrel or through the micro-USB interface with the free akYtec Tool Pro software
- IP65-rated front panel protects against dust and water in harsh environments
Starting at
(DPM22-A)
