FMM series magmeters reliably detect the flow rate of conductive media such as industrial water, drinking water, water-based coolants, water glycol mixtures, and salt water at up to 160 GPM. Units feature numeric displays with selectable engineering units, no moving parts, and 2 selectable outputs for switch, pulse, frequency or analog signals.
ProSense® Magnetic-Inductive Flow Meters
FMM Series Magnetic-Inductive Flow Meters
AutomationDirect's ProSense FMM Series (-1001 and -1002) Magmeters are designed to reliably detect the flow rate of conductive media up to 158.5 - 160 gallons per minute.
- The stainless steel, mechanically-robust design mounts directly in-line providing a compact, low-profile installation for process control.
- A 4-digit numeric display with pushbutton setup indicates flow parameters with selectable engineering units.
- Two outputs are available to remotely monitor the flow parameters and temperature.
- Simple to setup, easy to install and with no moving parts, the FMM series is a reliable alternative to traditional flow meters and mechanical flow switches.
FMM series magnetic-inductive flow meters start at
$556.00
(FMM50-1001)
FMM Series (-1001) Flow Meters
Two outputs selectable for switch, pulse, frequency or analog signals
- Output 1:
- - Flow rate switch
- - Volumetric flow totalizer pulse
- - Volumetric flow totalizer preset switch
- - Flow rate frequency (1-1/2 and 2 inch models only)
- - Empty pipe detection switch (1-1/2 and 2 inch models only)
- Output 2:
- - Flow rate switch
- - Temperature switch
- - Analog flow rate
- - Analog temperature
- - Volumetric flow totalizer reset input
- - Empty pipe detection switch (1-1/2 and 2 inch models only)
- Measure up to 160 GPM
- Measure fluid temperature in addition to flow and volume
- 4-digit numeric display with pushbutton setup
- Selectable engineering units: GPM, GPH, GAL, °F, °C
- 1/2 to 2" NPT female process connections
- 4-pin M12 quick disconnect
- 5-year warranty
FMM Series (-1001) Flow Meters Overview
FMM Series (-1002) Flow Meters
Two analog output signals
- Output 1: Analog temperature
- Output 2: Analog flow rate
- Measure up to 158.5 GPM
- Measure fluid temperature in addition to flow
- 4-digit numeric display with pushbutton setup
- Selectable engineering units: GPM, GPH, LPM, m3/h, °F, °C
- 1/2 to 2" NPT female process connections
- 4-pin M12 quick disconnect
- 5-year warranty
Magnetic-Inductive Flow
Meter Application
Magnetic-inductive flow meters (Magmeters) are one of the most widely used technologies for liquid flow monitoring in industrial process markets such as wastewater, mining and minerals, utilities, food and beverage, and pharmaceuticals.
To ensure reliable and accurate operation, some important application requirements should be considered.
- Meeting the minimum conductivity of the liquid and properly installing with a full pipe are required in order to avoid significant error or the meter not functioning at all.
- Additionally, the presences of air bubbles should be avoided as they will affect the accuracy of the meter's measurements.
- Installation location in the piping is important because disturbances in the flow caused by bends in the pipe, valves, reductions, etc. can cause inaccuracies.

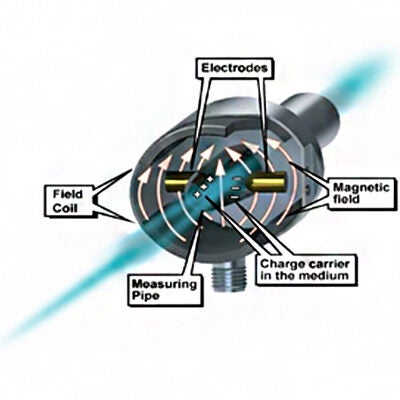

Magnetic-Inductive Flow Meter Measuring Principle
Magmeters operate by using the magnetic-inductive measuring principle in which a magnetic field is generated in the specified measuring pipe by current-carrying coils.
- When the media flows through the pipe, the ions of the conductive media are diverted perpendicularly to the magnetic field with the positive and negative charge carriers flowing in opposite directions.
- The two electrodes that are in contact with the medium then measure the voltage that is induced. The measured signal voltage is proportional to the average flow velocity.
- By knowing the inside pipe diameter of the unit, the volumetric flow rate is determined.
- Magmeters are suitable for use with a variety of conductive liquids in industrial process applications such as: industrial water, drinking water, water-based coolants, water glycol mixtures, sea water (salt).
