Mechatronic flow sensors monitor liquid media using a differential pressure sensing principle to detect or measure flow and provide a discrete, frequency, or analog output. They are immune to rapid media temperature changes and offer a fast response time and precise flow measurement at a low cost.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Mechatronic Flow Sensors
Category Selection
Mechatronic flow sensors utilize a spring-supported piston that is lifted by the flowing medium against the spring resistance. The flow rate is determined by monitoring the piston position and converting it to an output signal. The spring resistance forces the piston to return to its original position with decreasing flow, preventing backflow.
For part listings and specifications, go to Shop Now

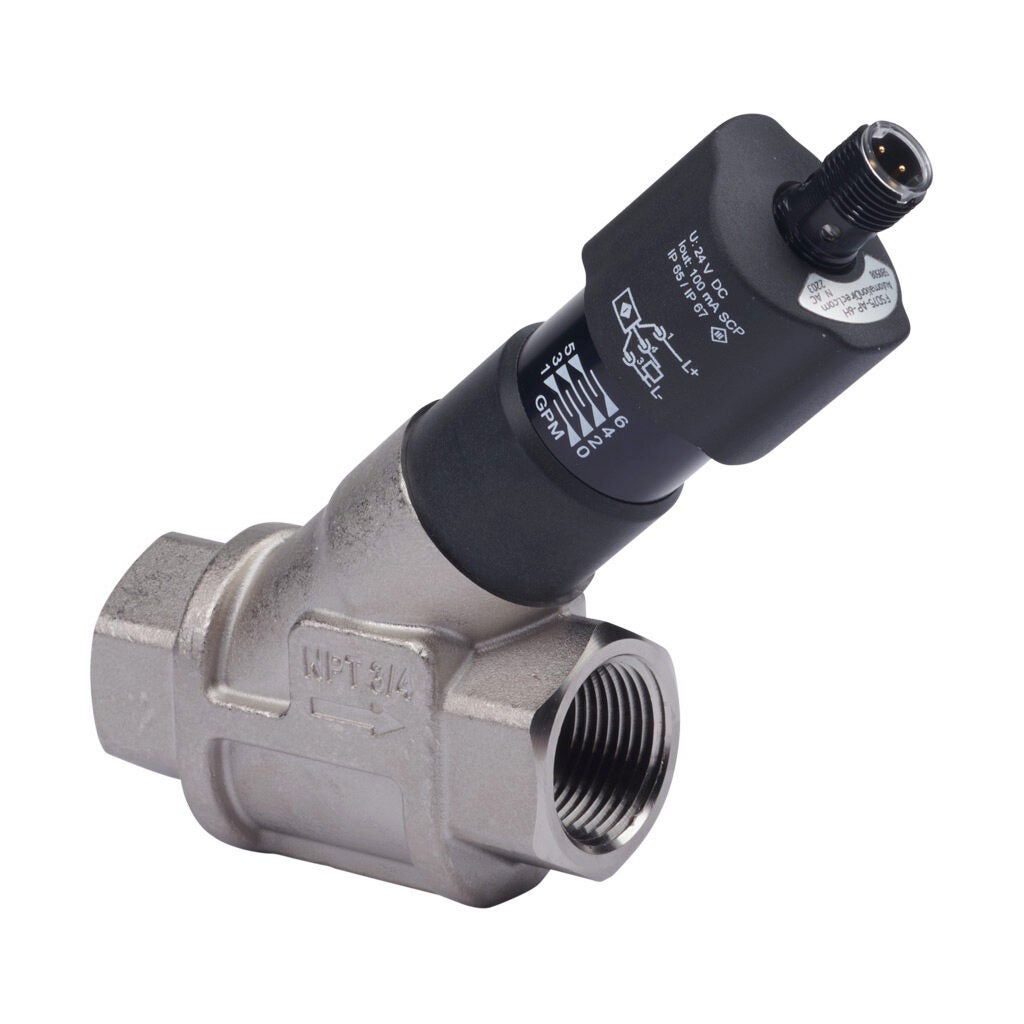

Mechatronic Flow Switches
ProSense FSD series mechatronic flow switches monitor liquid media and provide a switch output for reliable flow detection in various flow applications. They have a fast response time, a long lifespan, and are ideal for applications requiring precise flow control.
- Up to 26.4 GPM setpoint range
- Easy setpoint adjustment via rotary dial
- 3/4" or 1" NPT process connections
- 4-pin M12 quick disconnect
- N.O. DC PNP output
- LED output status indication
- Immune to rapid temperature changes of media
- IP65/67 protection rating
Starting at
$188.00
(FSD75-AP-6H)

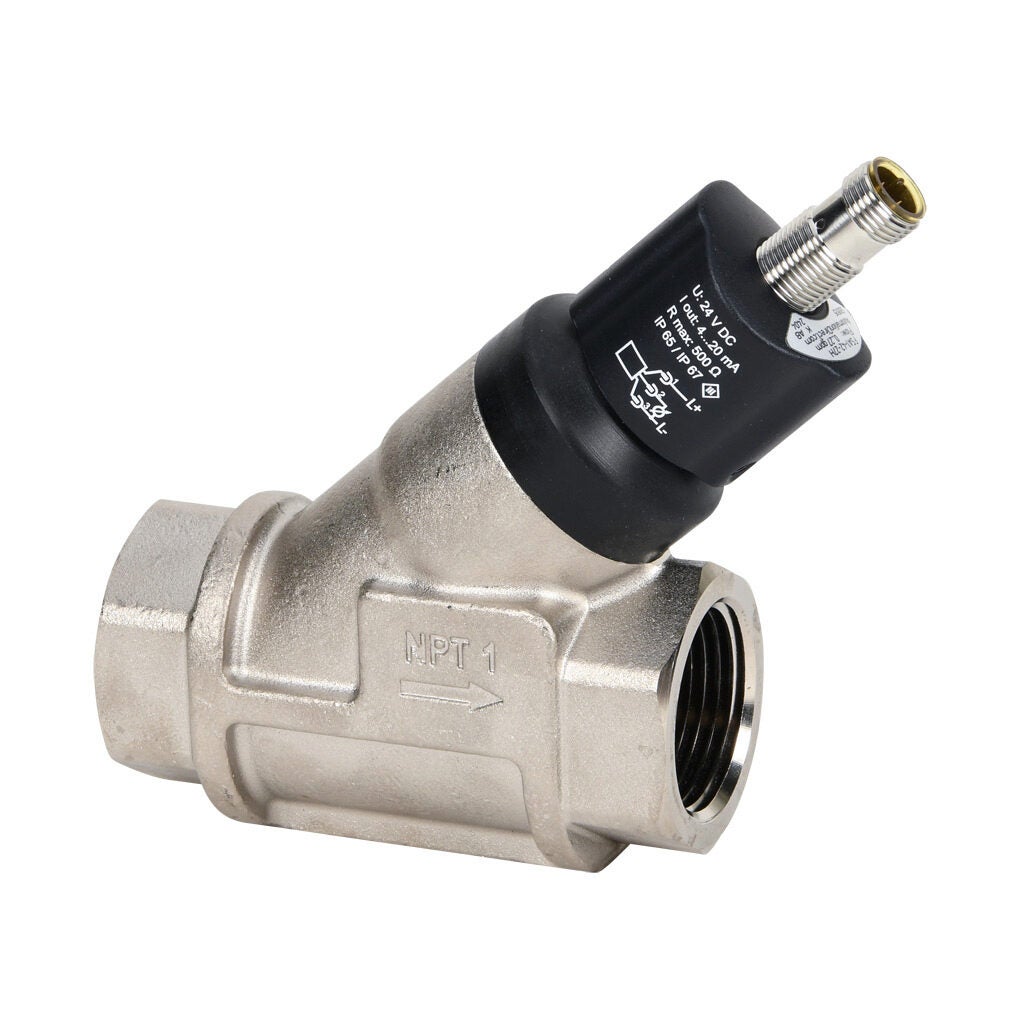

Mechatronic Flow Transmitters
ProSense FSA series mechatronic flow transmitters monitor liquid media and provide an analog output proportional to the flow rate. They are immune to rapid media temperature changes and are ideal for applications requiring fast response times, such as machining or cooling water applications.
- Up to 27 GPM sensing range
- 4 to 20 mA analog output
- 3/4" or 1" NPT process connections
- 4-pin M12 quick disconnect
- IP65/67 protection rating
Starting at
$204.00
(FSA75-42-6H)
Digital Flow Sensors
ProSense FSC series mechatronic digital flow sensors monitor liquid media and provide analog, frequency, or switch outputs based on flow rate or temperature. Their pushbutton interface offers quick and easy setup, while a bright two-color digital display prominently displays process variable data.
- Up to 50 GPM sensing range
- 14 to 212°F temperature sensing range
- 4-digit, two-color digital display
- Immune to rapid media temperature changes
- Two configurable analog, frequency, or switch outputs
- 3/4", 1", or 1-1/2" NPT process connections
- Suitable for horizontal or vertical mounting orientations
- 4-pin M12 quick disconnect
- IP65/67 protection rating
Starting at
$286.00
(FSC75-00-42-6H)
