ProSense VFS series vortex flow sensors are a cost-effective solution for monitoring flow and temperature of water and deionized water. The sensing technology creates alternating vortices as the liquid moves through the sensor to determine the flow. These sensors include a display for measured flow and temperature values, and two selectable outputs that provide switch or frequency signals.

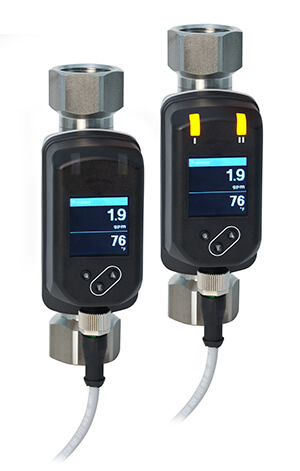

ProSense® Vortex Flow Sensors
VFS Series Vortex Flow Sensors
ProSense VFS series vortex flow sensors offer a very cost-effective solution optimized for monitoring water and deionized water flow in industrial applications. Vortex flow sensors are a reliable alternative to other flow sensing technologies and are a simple, low cost, and proven method for measuring flow of water-based liquids that is independent of the liquid's pressure or temperature fluctuations.
- Using the pushbuttons and display, the VFS series can be easily set up to measure both flow rate and temperature. The VFS series is available with 1/2" or 3/4" NPT process connections.
- The VFS (-1001) series offers two separate outputs that can be used either as a flow or temperature limit switch or to monitor continuous flow rate or temperature. The VFS (-1002) series offers two analog flow/temperature monitoring outputs.
- The TFT color display and switch point LEDs are used during configuration and operation to provide clear indication of both flow and temperature measured variables simultaneously.
VFS series flow sensors start at
$223.00
(VFS50-5-1001)
VFS1001 Thermal Flow Sensors Overview
Features
- Optimized for measurement of water and deionized water flow applications
- Cost effective solution for flow switch or continuous flow measurement
- Volumetric flow rate and temperature measurement
- TFT color display with pushbutton setup
- 1/2" or 3/4" NPT rotatable process connections
- Two outputs selectable for switch, frequency or analog signals (FVS-1001 series)
- Two analog outputs for flow and temperature (FVS-1002 series)
- 4-pin M12 quick disconnect electrical connection
- 5-year warranty
Outputs
The VFS (-1001) series
The VFS (-1001) series offers two separate outputs that can be used either as a flow or temperature limit switch or to monitor continuous flow rate or temperature.
-
Output 1: 2 selection options
- Switching signal for flow limit values
- Frequency signal for flow -
Output 2: 6 selection options
- Switching signal for flow limit values
- Switching signal for temperature limit values
- Analog signal for flow
- Analog signal for temperature
- Frequency signal for flow
- Frequency signal for temperature
The VFS (-1002) series
The VFS (-1002) series offers two separate analog outputs that can be used monitor continuous flow rate and temperature.
-
Output 1:
- Analog signal for temperature -
Output 2:
- Analog signal for flow
