CLICK PLUS (Stackable Micro Modular PLC) - CPU Option Slot Modules

One of the many benefits of the CLICK PLUS PLC system is the added versatility of the CPU I/O. Unlike their predecessor, the CLICK PLUS CPUs don't have a fixed set of built-in I/O, but instead offer one or two option slots for customizable I/O configurations. And with the option modules available, CLICK PLUS CPUs can be configured in over 400 different ways; they can also be configured as direct functional replacements for the original CLICK PLCs.

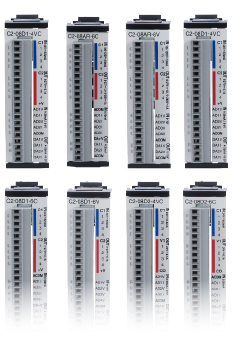

• Numerous option modules are available to add analog and/or discrete I/O to any CLICK PLUS CPU
  • Discrete in/out combo modules
  • Discrete/analog in/out combo modules
• Simply insert the desired option slot module(s) into the built-in slot(s) of the CPU for a custom stand-alone PLC
• CPU I/O can be reconfigured if/when application requirements change
• Discrete I/O option slot modules support high-speed I/O signals up to 100kHz (high-speed I/O allowed in slot 0 only)
• Add the C2-14TTL module to your CLICK PLUS CPU for low-voltage (~5VDC), high-speed motion control signals

Specialty option slot modules provide capabilities outside the realm of standard I/O. Several are intelligent, meaning they contain their own processor and do not hinder the performance of the main CPU. Adding a specialty module can enhance any installation with high-level capabilities for an extremely low cost.

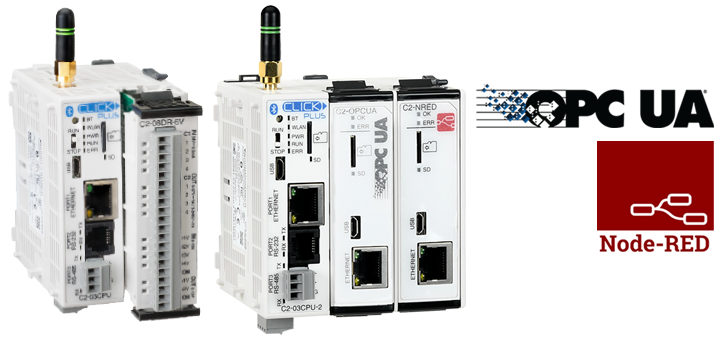

• The C2-NRED module combines the most affordable and user-friendly PLC in the industry with one of the most popular open-source software tools in the industrial sector for developing IIoT applications. With the low-code Node-REDŽ interface, you can easily facilitate interactions between the CLICK PLUS CPU and upper-level IT/business systems. This intelligent module utilizes its own processor, ensuring the main CPU remains unburdened but has direct access to the memory of the PLC and all the data needed. The C2-NRED also supports custom JavaScript programming, extending the CLICK PLUS platform's functionality even further.
• OPC UAŽ (Open Platform Communications Unified Architecture) is a long-standing communication protocol used throughout industry and provides a standardized way for industrial systems, regardless of manufacturer, to communicate and share data. The C2-OPCUA module, when added to a CLICK PLUS CPU, allows the simplicity and reliability of CLICK PLCs to be deployed in many more applications that support this protocol (the C2-OPCUA module supports OPC UA Server only).
• The C2-DCM serial communication module adds additional serial ports to the CPU if needed.
