Intrinsically safe relays provide a safe and reliable method to control up to four loads with up to four input devices (switches, sensors, etc.) located in a hazardous area. All models offer finger-safe design, LED status indicators, and DIN rail or panel mounting options.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Intrinsically Safe Relays
Category Selection
Chemical plants and any other application with flammable particles or gases present must take extra precautions to ensure there is not enough electrical or thermal energy in a circuit to act as an ignition source for the hazardous atmosphere. Intrinsically safe barrier relays operate at low energy levels in order to limit the amount of energy present. These relays are designed so that there is never enough current, voltage, or total energy in the circuit they are controlling to create an explosion.
For part listings and specifications, go to Shop Now

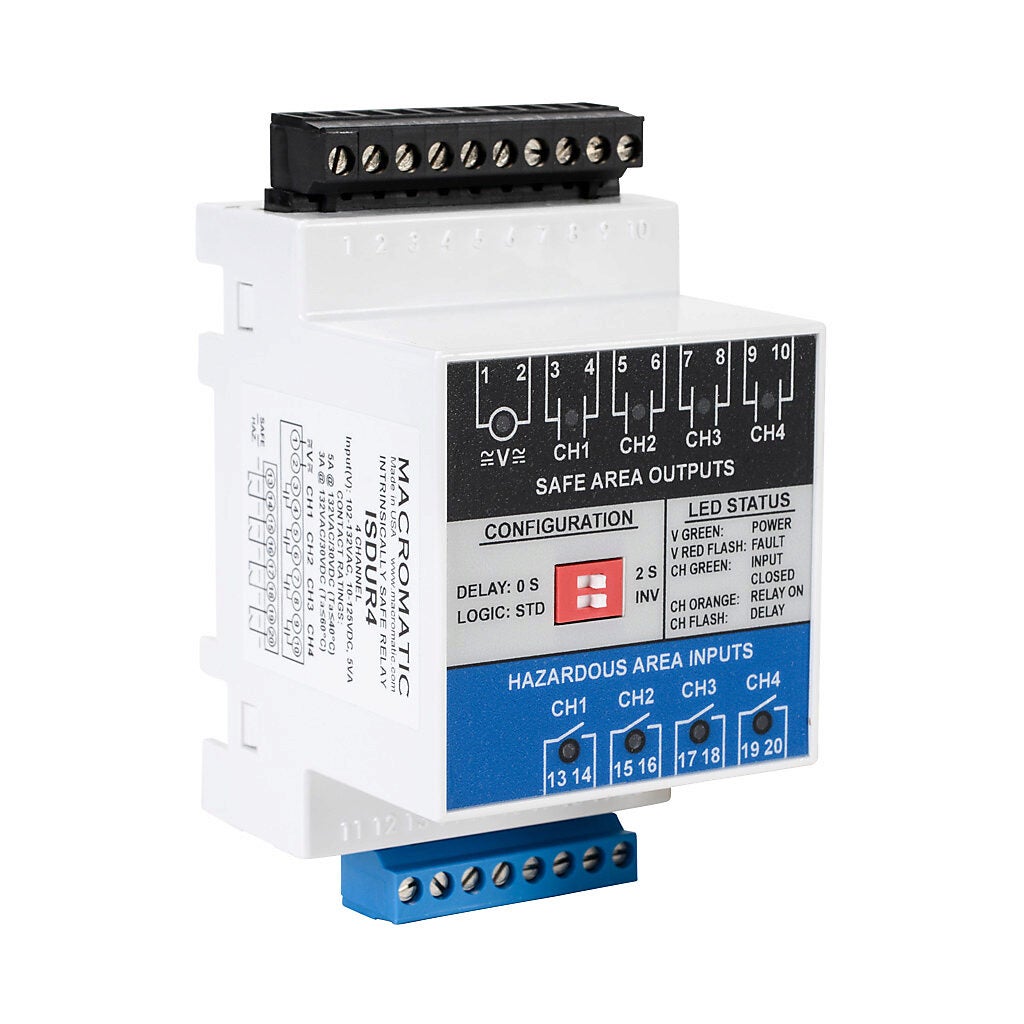

ISD Series Intrinsically Safe Relays
Macromatic ISD series barrier relays control up to four loads and provide four DIP-switch settable operating configurations to meet a variety of applications. These relays mount on 35mm DIN rail or can be panel mounted.
- Approved for use in Class I, Class II, and Class III Hazardous Locations (Zones 0 & 1 in Canada)
- Isolated input terminals
- Isolated 5A relay outputs
- Universal input voltage, 10 to 125 VDC and 102 to 132 VAC, 50/60 Hz
- LED status indicator
Priced at
$314.00
(ISDUR4)

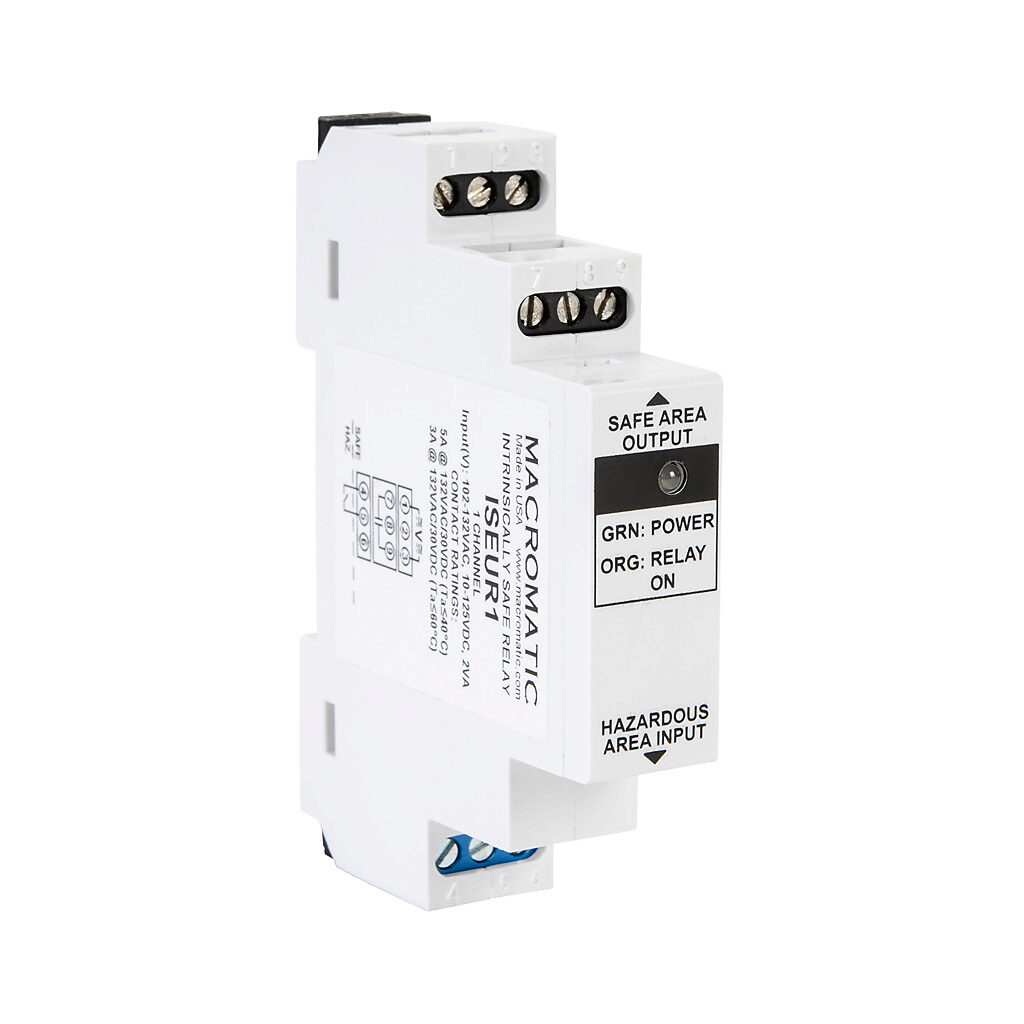

ISE Series Intrinsically Safe Relays
Macromatic ISE series barrier relays control a single load with a single input located in a hazardous area. These relays mount on 35mm DIN rail or can be panel mounted. Choose standard or inverse logic.
- Approved for use in Class I, Class II, and Class III Hazardous Locations (Zones 0 & 1 in Canada)
- 5A relay output
- Universal input voltage of 102 to 132 VAC and 10 to 125 VDC
- LED status indicator
Priced at
$96.00
(ISEUR1)
