Safety controller master modules can function as a standalone controller or as the heart of a modular, expandable system for managing the safety functions of a single machine or an entire plant. All logic is configured with simple drag-and-drop graphics (free software).
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Master Modules
Safety controller master modules are the brains of a safety controller system. These 35mm DIN rail mounted modules are programmed with an easy-to-use graphical software and are designed to reliably perform several tasks, including:
- Managing and coordinating safety functions
- Processing signals from safety sensors and activating safety control outputs
- Monitoring system health
- Interfacing with other safety components and external control systems
For part listing and specifications, go to Shop Now
MOSAIC-M1 Master Module
- (8) digital inputs
- (2) inputs for Start/Stop interlock and device monitoring (EDM)
- (2) OSSD (output signal switching device) pairs
- (4) test outputs
- (2) programmable digital signal outputs
- Expandable with up to 14 expansion modules
- Type B mini-USB programming connection
Priced at
(MOSAIC-M1)
MOSAIC-M1S Enhanced Master Modules
- (8) digital inputs
- (4) inputs for Start/Stop interlock and device monitoring (EDM)
- (4) OSSD (output signal switching device) pairs
- (4) test outputs
- (4) programmable digital signal outputs
- Support of newer expansion modules
- Expandable with up to 14 expansion modules
- Type USB C programming connections
Starting at
(MOSAIC-M1S-USBC)
MZERO Standalone Master Module
- (16) digital inputs
- (4) inputs for Start/Stop interlock and device monitoring (EDM)
- (4) OSSD (output signal switching device) pairs
- (4) test outputs
- (4) programmable digital signal outputs
- Pluggable screw terminal or push-in cage clamp connections
- Does not support expandable I/O
- USB-C programming connection
Starting at
Priced at
(MZERO-16-4)
Schmersal PSC1-C-10
New!
- Built-in fieldbus connectivity. No need to purchase additional communication modules
- Safety functionalities up to SIL 3 according to IEC 61508 / IEC 62061, PL e and Cat. 4 according to EN ISO 13849-1
- 14 safe inputs up to PL e or SIL 3
- 4 adjustable safe semiconductor outputs: 2A p-switching or p-/n-switching
- 2 safe relay outputs for 24 VDC or 230 VAC, 2A
- 2 pulse outputs (clock outputs) for contact sensors
- 2 signaling outputs, 250 mA
- Modular, expandable with up to 2 I/O expansion modules
- One part number for I/O expansion to make selection simple
Starting at
(PSC1-C-10)

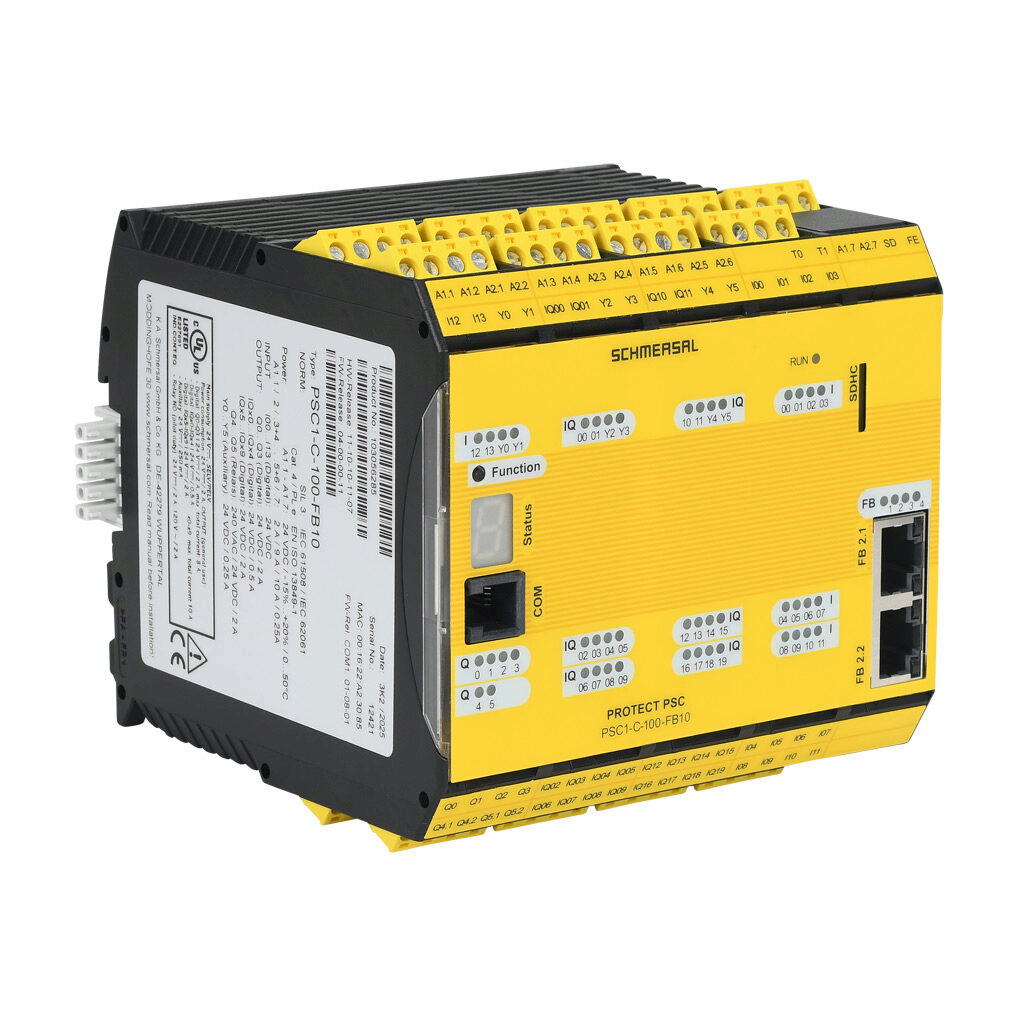

Schmersal PSC1-C-100
New!
- Built-in fieldbus connectivity. No need to purchase additional communication modules
- Safety functionalities up to SIL 3 according to IEC 61508 / IEC 62061, PL e and Cat. 4 according to EN ISO 13849-1
- 14 safe inputs up to PL e or SIL 3
- 4 adjustable safe semiconductor outputs: 2A p-switching or p-/n-switching
- 2 safe relay outputs for 24 VDC or 230 VAC, 2A
- 2 pulse outputs (clock outputs) for contact sensors
- 20 adjustable safe in-/outputs up to PL e, respectively SIL 3
- 6 signaling outputs, 250 mA
- Modular expandable up to 216 I/O points with up to 8 I/O modules
- One part number for I/O expansion to make selection simple
Starting at
(PSC1-C-100)
